STTII-61V-35BV - Scag Turf Tiger II 61" Zero-Turn Mower, 35hp Vanguard (SN: M0500001 - M0599999) STTII Deck Drive Components Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 35hp Vanguard

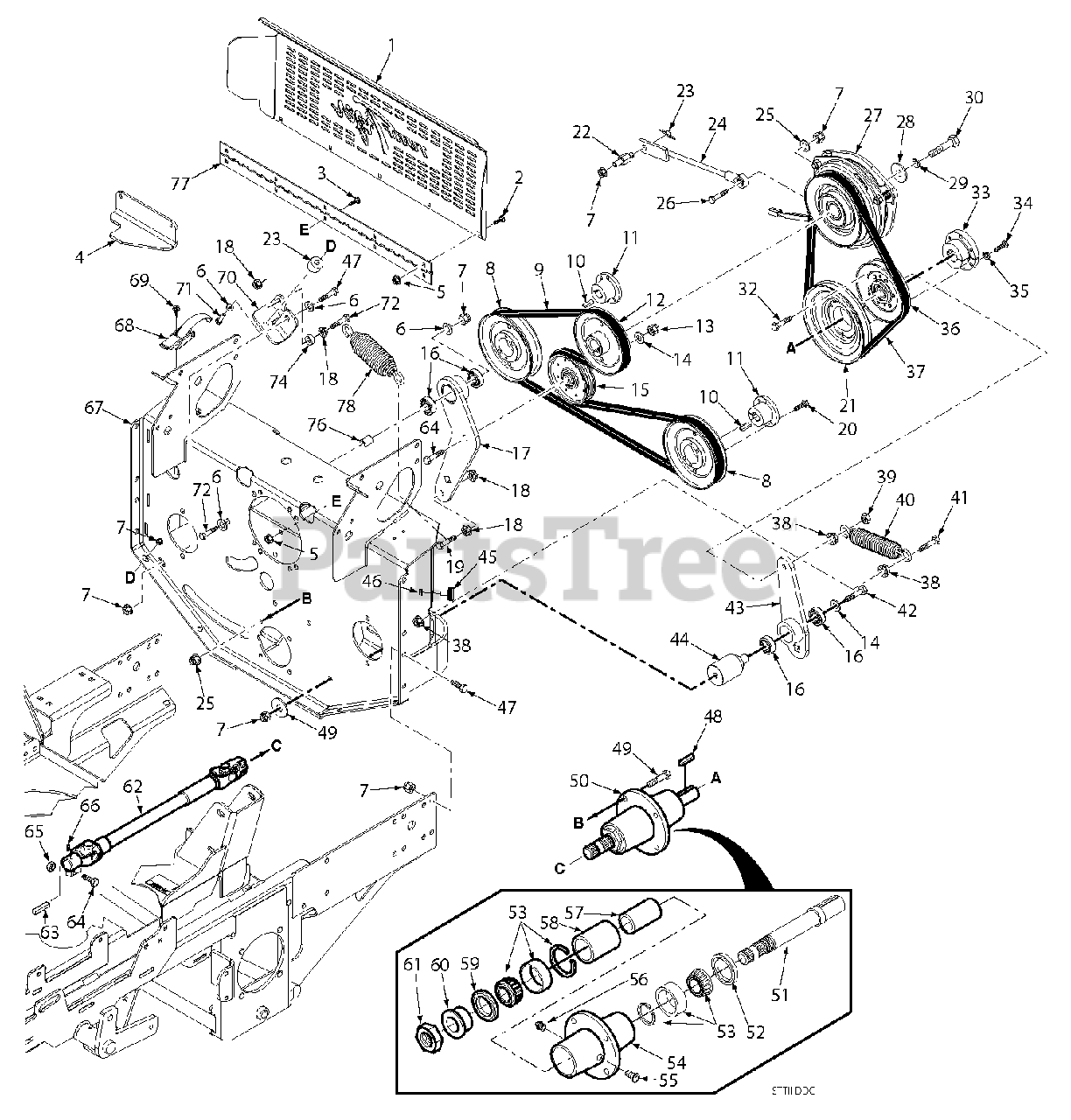

STTII Deck Drive Components Parts Diagram

  • Title

1

Scag 427106

Cover, Rear

$124.99

$

Usually ships in 2-12 days

0

2

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

3

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

4

Scag 425214

Bracket, Idler Stop

$13.99

$

Usually ships in 2-12 days

0

5

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

7

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 482744

Pulley, 5.75 O.D. (Gasoline Engines)

$30.99

$

Usually ships in 2-12 days

0

8

Scag 482745

Pulley, 6.35 O.D. (Diesel Engine)

$30.99

$

In Stock, Qty 9

0

9

Scag 485697

Belt, STTII Pump Drive (Gasoline Engines)

$73.99

$

In Stock, only 1 left!

0

9

Scag 485766

Belt, STTII Pump Drive (Diesel Engine)

$62.99

$

In Stock, only 1 left!

0

10

Scag 04063-27

Key, 5mm x 5mm x 30mm

$4.49

$

In Stock, only 1 left!

0

11

Scag 481884

Tapered Hub, 17mm Bore

$27.99

$

In Stock, only 1 left!

0

12

Scag 483675

Pulley, 5.67 O.D. (Kawasaki & Kohler Only)

$53.99

$

In Stock, only 3 left!

0

12

Scag 485867

Pulley, 5.67 O.D. (35 BV Only)

$50.99

$

Usually ships in 2-12 days

0

12

Scag 483829

Pulley, 5.67 O.D (Kubota Diesel Only)

$105.99

$

Usually ships in 2-12 days

0

13

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

15

Scag 483214

Pulley, Idler 4"

$26.99

$

In Stock, only 1 left!

0

16

Scag 48224

Bearing

$12.99

$

In Stock, Qty 20+

0

17

Scag 461608

Idler Arm Assy.

Note: (incl. #16)

$86.99

$

Usually ships in 2-12 days

0

18

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

20

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

21

Scag 482949

Pulley, 6.70 O.D.

$55.99

$

In Stock, only 1 left!

0

22

Scag 43507

Stud, Anti-Rotation

$32.99

$

In Stock, only 1 left!

0

23

Scag 04069-01

Pin, Rue Cotter

$1.49

$

In Stock, only 4 left!

0

24

Scag 482845

Rod Assembly

$56.99

$

In Stock, only 1 left!

0

25

Scag 04040-12

Flatwasher, 3/8-.438 x 1.00 x .083

$2.99

$

Usually ships in 2-12 days

0

26

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

27

Scag 461661

Clutch Assembly, GT3.5

$429.99

$

In Stock, only 2 left!

0

27

Scag 462011

Clutch Assembly, GT3.5 (Diesel Engine)

$476.99

$

Usually ships in 2-12 days

0

27

Scag 461826

Clutch Assembly, GT5 (35BV)

$636.99

$

In Stock, only 2 left!

0

28

Scag 04041-28

Flatwasher, 7/16-.469 x 1.50 x .1793

$2.99

$

In Stock, Qty 12

0

29

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

30

Scag 04102-04

Bolt, Hex Head 7/16-20 x 2-1/2" (Kohler)

$2.49

$

In Stock, Qty 5

0

30

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" (35BV)

$1.99

$

In Stock, Qty 12

0

30

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4" (Kubota)

$1.99

$

In Stock, Qty 12

0

30

Scag 04103-02

Bolt, Hex Head M10-1.5 x 50 (Kawasaki)

$1.99

$

Usually ships in 2-12 days

0

31

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4"

$1.99

$

In Stock, only 2 left!

0

32

Scag 04001-170

Bolt, Hex Head 3/8-16 x 2-1/2"

Note: Grade 8

$3.99

$

In Stock, Qty 6

0

33

Scag 481536

Tapered Hub, 1" Bore

$58.99

$

Usually ships in 2-12 days

0

34

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1.375 Full Thread

$2.49

$

In Stock, only 2 left!

0

35

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

36

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 11

0

37

Scag 482876

Belt, Deck Drive

$27.99

$

In Stock, Qty 15

0

38

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 484754

Spring, PTO (Gasoline Engines)

$18.99

$

In Stock, Qty 6

0

40

Scag 483430

Spring, PTO (Diesel Engine)

$41.99

$

Usually ships in 2-12 days

0

41

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

42

Scag 04001-171

Bolt, Hex Head 3/8-16 x 4-1/2"

$2.49

$

In Stock, Qty 5

0

43

Scag 461609

Idler Arm Assy., PTO Drive

Note: (incl. #16)

$57.99

$

Usually ships in 2-12 days

0

44

Scag 43632

Pivot, Idler - PTO

$27.99

$

Usually ships in 2-12 days

0

45

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

46

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

47

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

48

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

49

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

50

Scag 461697

Spindle Assy., PTO

$319.99

$

In Stock, only 1 left!

0

51

Scag 43534

Shaft, Deck Drive
(Superseded to 43321)

$

$

Not available

52

Scag 481024

Seal

$4.99

$

In Stock, Qty 20+

0

53

Scag 481022

Bearing Assembly, Tapered

$59.99

$

In Stock, Qty 15

0

54

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

55

Scag 48677

Relief Fitting

$

$

Not available

56

Scag 48114-04

Grease Fitting, 1/4-28

$0.99

$

In Stock, Qty 20+

0

57

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

58

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

59

Scag 481025

Seal, 2" O.D. x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

60

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

61

Scag 481035

Nut, 1.06 - 18

$7.99

$

In Stock, only 3 left!

0

62

Scag 482438

Driveshaft

$651.99

$

Usually ships in 2-12 days

0

63

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

64

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

65

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

66

Scag 04012-08

Set Screw, 3/8-16 x 3/4" Torx Head
(Superseded to 04012-06)

$0.99

$

In Stock, only 1 left!

0

67

Scag 452725

Pump Mounting Plate Weldment (Gasoline)

$531.99

$

Usually ships in 2-12 days

0

67

Scag 452728

Pump Mounting Plate Weldment (Diesel)

$600.99

$

Usually ships in 2-12 days

0

68

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

69

Scag 04011-11

Screw, #10-32 x .563 Shakeproof

$0.99

$

In Stock, Qty 8

0

70

Scag 424138

Bracket, Spring

$28.99

$

Usually ships in 2-12 days

0

71

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

72

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, only 4 left!

0

73

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

74

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

75

Scag 04021-22

Nut, Elastic Stop 5/16-18

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

76

Scag 43631

Spacer

$4.99

$

In Stock, only 1 left!

0

77

Scag 481531

Hinge, Belt Cover

$30.99

$

In Stock, only 1 left!

0

78
