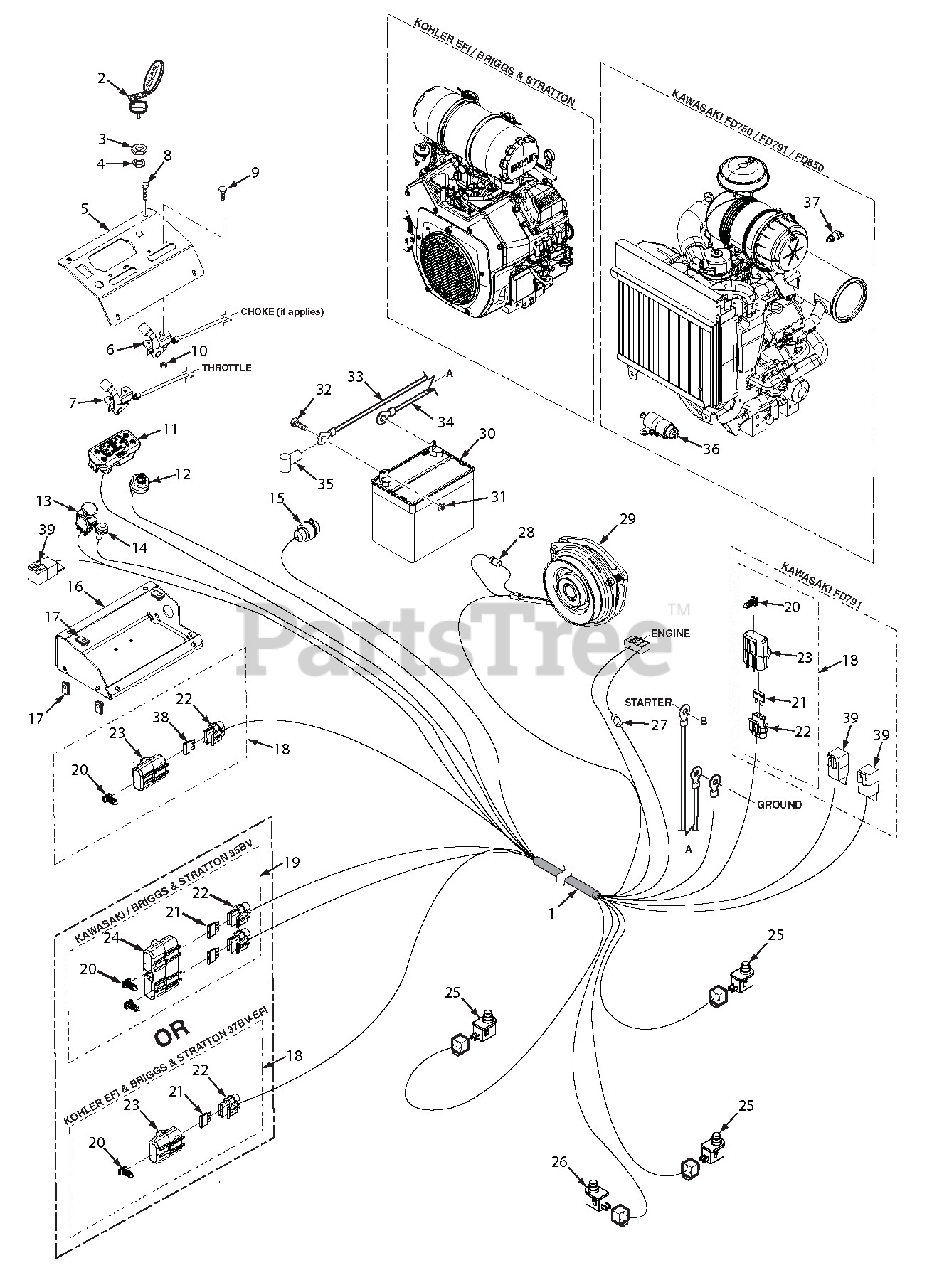

STTII-61V-31DFI - Scag Turf Tiger II 61" Zero-Turn Mower, 31hp Kawasaki (SN: N0900001 - N0999999) STTII Electrical System - Gasoline Engines Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 31hp Kawasaki

STTII Electrical System - Gasoline Engines Parts Diagram

  • Title

1

Scag 485643

Wire Harness, STTII-BV (Briggs & Stratton)

$635.99

$

Usually ships in 2-12 days

0

1

Scag 485885

Wire Harness, STTII-BV-EFI (Briggs & Stratton)

$421.99

$

In Stock, only 1 left!

0

1

Scag 485644

Wire Harness, STTII-EFI (Kohler)

$433.99

$

Usually ships in 2-12 days

0

1

Scag 485645

Wire Harness, STTII-KA (Kawasaki)

$463.99

$

In Stock, only 1 left!

0

1

Scag 485646

Wire Harness, STTII-FD791 DFI (Kawasaki)

$533.99

$

Usually ships in 2-12 days

0

1

Scag 485723

Wire Harness, STTII-FD850D DFI (Kawasaki)

$736.99

$

Usually ships in 2-12 days

0

2

Scag 462069

Key Assy., w/Fob

$8.49

$

In Stock, Qty 20+

0

3

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

4

Scag 48017-03

Lockwasher, 5/8 Internal

$0.99

$

In Stock, Qty 6

0

5

Scag 462930

Instrument Panel w/Decal

$125.99

$

Usually ships in 2-12 days

0

6

Scag 481544

Choke Cable (FD750 & 35BV)

$27.99

$

In Stock, Qty 20+

0

7

Scag 484289

Control Cable, Throttle

$28.99

$

In Stock, only 1 left!

0

7

Scag 481363

Control Cable, Throttle (35BV)

$34.99

$

In Stock, only 2 left!

0

8

Scag 04013-04

Capscrew, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 12

0

9

Scag 04003-43

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

10

Scag 04021-26

Lock Nut, #10-24

$0.99

$

In Stock, Qty 11

0

11

Scag 484721

Cluster Gauge

$374.99

$

In Stock, only 1 left!

0

12

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

13

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

14

Scag 481182

Indicator Light Assy. (EFI & DFI)

$47.99

$

Usually ships in 2-12 days

0

15

Scag 485568

Power Plug, 12V

$30.99

$

Usually ships in 2-12 days

0

16

Scag 427076

Base, Instrument Panel
(Superseded to 427541)

$74.99

$

Usually ships in 2-12 days

0

17

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

18

Scag 485739

Single Fuse Assy., Excluding Fuse

Note: (incl. #20, 22, 23)

$33.99

$

Usually ships in 2-12 days

0

19

Scag 483642

Double Fuse Assy.

Note: (incl. #20, 21, 22, 24)

$43.99

$

Usually ships in 2-12 days

0

20

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

21

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

22

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

23

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

24

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

25

Scag 481638

Switch, N/O

$15.99

$

In Stock, Qty 20+

0

26

Scag 485691

Plunger Switch, Single Pole

$12.99

$

In Stock, only 3 left!

0

27

Scag 482253

Diode

$7.99

$

Usually ships in 2-12 days

0

28

Scag 483958

Diode, 600V - 6A

$2.49

$

In Stock, only 4 left!

0

29

Scag 461661

Clutch Assembly, GT3.5

$429.99

$

In Stock, only 2 left!

0

29

Scag 461826

Clutch Assembly, GT5

$636.99

$

In Stock, only 2 left!

0

30

Battery, 350 CCA

Note: Not available through Scag.

$

$

Not available

31

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

32

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

33

Scag 48029-30

Battery Cable, 44" Red w/Braid (26EFI) - Kohler

$32.99

$

In Stock, only 2 left!

0

33

Scag 48029-29

Battery Cable, 18" Red w/Braid (25KA, 26DFI, 31DFI) - Kawasaki

$21.99

$

Usually ships in 2-12 days

0

33

Scag 48029-31

Battery Cable, 50" Red w/Braid (35BV & 37BV-EFI) - Briggs & Stratton

$35.99

$

Usually ships in 2-12 days

0

34

Scag 48029-24

Battery Cable, 39" Black (26EFI) - Kohler

$17.99

$

Usually ships in 2-12 days

0

34

Scag 48029-14

Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki

$16.99

$

Usually ships in 2-12 days

0

34

Scag 48029-11

Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton

$14.99

$

In Stock, only 1 left!

0

35

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

36

Fuel Pump

Note: Available through the individual engine manufacturer.

$

$

Not available

37

Scag 481670

Sender Unit, Water Temp. (Liquid Cooled Only)

$95.99

$

Usually ships in 2-12 days

0

38

Scag 485674

Fuse, 5 Amp

$7.99

$

Usually ships in 2-12 days

0

39

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0
