STTII-61V-31BV - Scag Turf Tiger II 61" Zero-Turn Mower, 31hp Vanguard (SN: V6900001 - V6999999) STTII STEERING COMPONENTS Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 31hp Vanguard

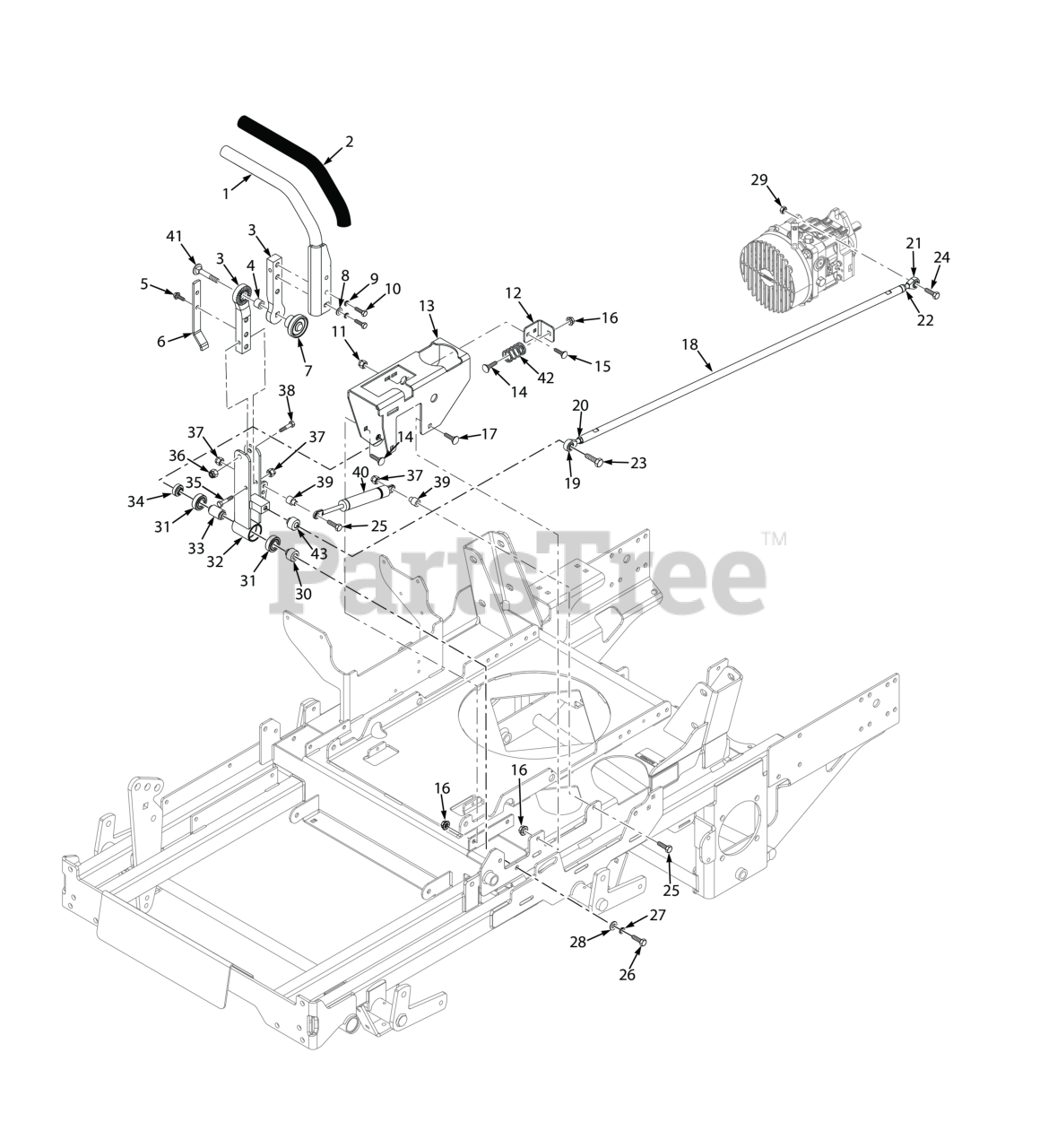

STTII STEERING COMPONENTS Parts Diagram

  • Title

1

Scag 462804

Handle Bar w/Grip - LH

Note: (INCL #2)

$62.99

$

Usually ships in 2-12 days

0

Scag 462805

Handle Bar w/Grip - RH

Note: (INCL #2)

$62.99

$

Usually ships in 2-12 days

0

2

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

3

Scag 461938

ADJUSTMENT ASSY, CNTL HANDLE

Note: (INCL #4,5,6,7,41)

$73.99

$

Usually ships in 2-12 days

0

4

Scag 483250

Spacer, Rubber

$9.49

$

In Stock, only 3 left!

0

5

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

6

Scag 423491

Actuator, Switch

$25.99

$

Usually ships in 2-12 days

0

7

Scag 483269

Knob, Control Handle

$24.99

$

In Stock, only 1 left!

0

8

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

12

Scag 427108

Mounting Bracket, Spring Return

$6.49

$

Usually ships in 2-12 days

0

13

Scag 463221

Control Plate w/Decals LH

$87.99

$

Usually ships in 2-12 days

0

Scag 463222

Control Plate w/Decals RH

$63.99

$

Usually ships in 2-12 days

0

14

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

15

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04013-03

HHCS, 5/16-18 X .75 FLG

$0.99

$

Usually ships in 2-12 days

0

18

Scag 486479

Linkage Assy., Pump Control (incl. #19 - #22)

Note: (incl. #19 - #22)

$85.99

$

Usually ships in 2-12 days

0

19

Scag 482585

Rod End, Male 3/8"-24 LH Thread

$20.99

$

In Stock, only 1 left!

0

20

Scag 04026-26

Nut, 3/8-24 UNF LH Jam
(Superseded to 04020-26)

$1.99

$

In Stock, only 4 left!

0

21

Scag 482586

Rod End, Male - RH, 3/8-24 Thread

$20.99

$

Usually ships in 2-12 days

0

22

Scag 04020-25

Nut, 3/8-24 UNF R.H. Thread

$0.99

$

In Stock, only 2 left!

0

23

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 12

0

25

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

26

Scag 04001-152

Bolt, Hex Head 3/8-16 x 4-1/4"

$5.49

$

In Stock, Qty 5

0

27

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

28

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

30

Scag 43607

Spacer, Controls

$5.99

$

Usually ships in 2-12 days

0

31

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

32

Scag 452718

Control Lever Weldment, RH

$70.99

$

In Stock, only 1 left!

0

Scag 452717

Control Lever Weldment, LH

$70.99

$

Usually ships in 2-12 days

0

33

Scag 43600

Spacer, Bearing

$10.99

$

Usually ships in 2-12 days

0

34

Scag 431024

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

35

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 6

0

36

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

37

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

38

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

39

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

40

Scag 484151

Gas Damper

$70.99

$

In Stock, Qty 6

0

41

Scag 04003-05

Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61")

$0.99

$

In Stock, Qty 18

0

42

Scag 485970

Return Spring, Control Arm

$3.99

$

Usually ships in 2-12 days

0

43

Scag 43123

SPACER

$22.99

$

Usually ships in 2-12 days

0
