STTII-61V-26CH-EFI - Scag Turf Tiger II 61" Zero-Turn Mower, 26hp Kohler (SN: P1700001 - P1799999) BDP-16A HYDRAULIC PUMP ASSEMBLY with COOLING FAN Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 26hp Kohler

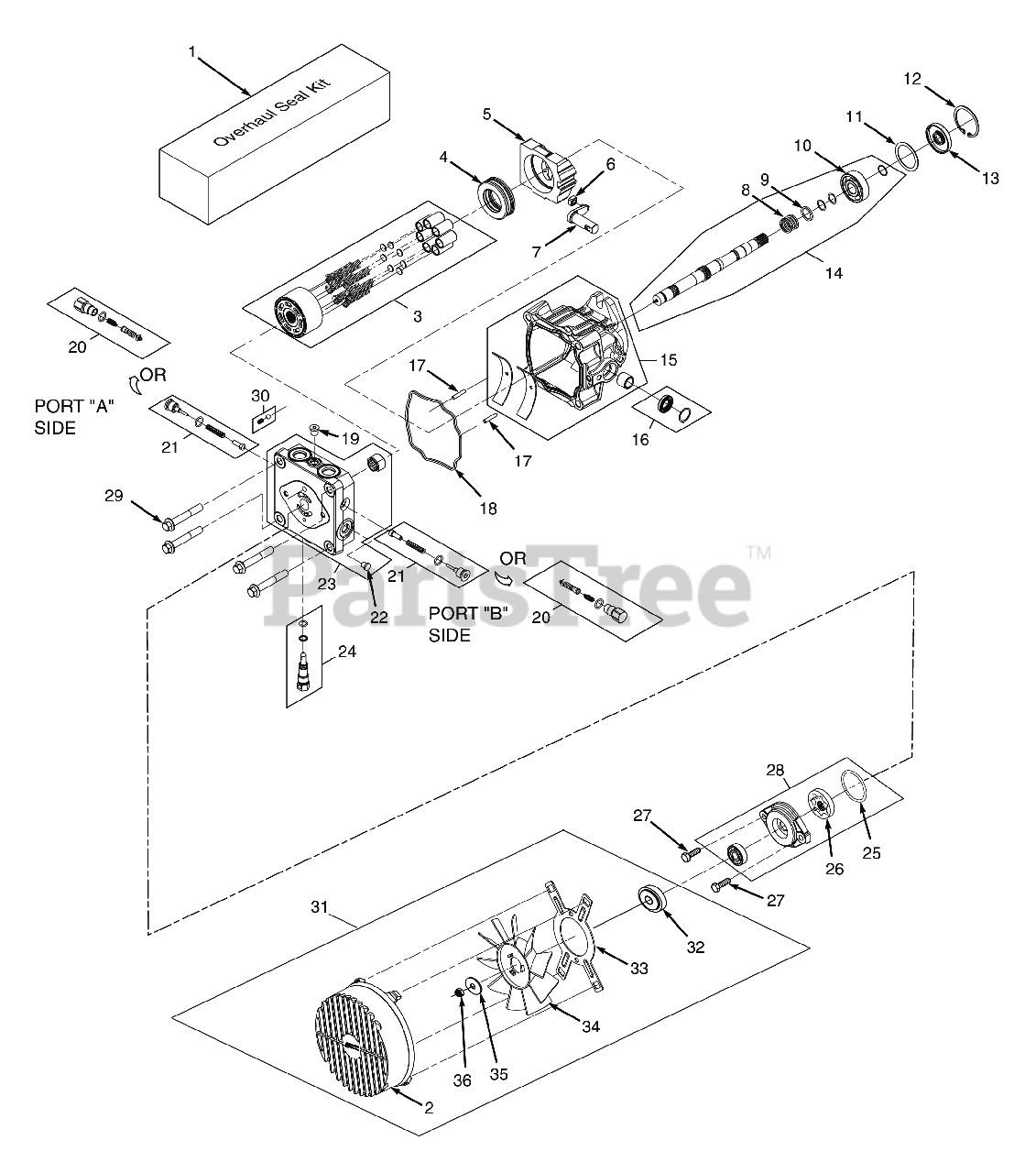

BDP-16A HYDRAULIC PUMP ASSEMBLY with COOLING FAN Parts Diagram

  • Title

1

Scag HG70740

Overhaul Seal Kit

$75.99

$

Usually ships in 2-12 days

0

2

Scag HG52059

Fan Cover

$40.99

$

Usually ships in 2-12 days

0

2

Scag 485879

Fan Cover w/ Notch (26EFI Right Side Pump Only)

$62.99

$

Usually ships in 2-12 days

0

3

Scag HG72158

Cylinder Block Kit - 16cc

$123.99

$

Usually ships in 2-12 days

0

4

Scag HG51462

Thrust Ball Bearing Assembly

$40.99

$

Usually ships in 2-12 days

0

5

Scag HG51436

Variable Swashplate

$

$

Not available

6

Scag HG 2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

7

Scag HG2000014

Trunnion Arm

$

$

Not available

8

Scag HG2000025

Spring Block

$

$

Not available

9

Scag HG2000024

Block Thrust Washer

$

$

Not available

10

Scag HG2000032

Shaft Ball Bearing

$

$

Not available

11

Scag HG2000023

Spacer

$2.99

$

Usually ships in 2-12 days

0

12

Scag HG2000038

Retaining Ring

$4.49

$

Usually ships in 2-12 days

0

13

Scag HG51092

Lip Seal

$19.99

$

Usually ships in 2-12 days

0

14

Scag HG70578

Kit, Pump Shaft (keyed thru taper)

$

$

Currently unavailable

15

Scag HG70738

Housing Kit

$

$

Not available

16

Scag HG70739

Trunnion Seal Kit

$10.99

$

Usually ships in 2-12 days

0

17

Scag HG 50641

Straight Headless Pin

$

$

Not available

18

Scag HG51437

O-Ring
(Superseded to HG54021)

$17.99

$

In Stock, only 2 left!

0

19

Scag HG9005110-7500

Straight Thread Plug

$

$

Not available

20

Scag HG 70743

System Check Relief Kit, port "B" on Left Hand Pump, port "A" on Right Hand Pump

$109.99

$

Usually ships in 2-12 days

0

21

Scag HG70742

Shock Valve Kit (.024" Orifice)

$

$

Not available

22

Scag HG9005200-7500

Straight Thread Plug

$

$

Not available

23

Scag HG70736

End Cap Kit

$

$

Not available

24

Scag HG 2513030

Bypass Valve Kit

$43.99

$

Usually ships in 2-12 days

0

25

Scag HG 9004100-1430

O-Ring, Charge Pump Cover

$

$

Currently unavailable

26

Scag HG50406

Gerotor Assembly (.19 cu.in./rev.)

$74.99

$

Usually ships in 2-12 days

0

27

Scag HG50173

Socket Head Cap Screw (M8 x 1.25-25mm)

$

$

Not available

28

Scag HG70924

Charge Pump Kit (.19 STD. Splined)

$

$

Not available

29

Scag HG51457

Hex Screw, Flanged Head (M10 x 1.50-65mm)

$

$

Not available

30

Scag HG 70402

Charge Relief Valve Kit

$6.49

$

In Stock, only 1 left!

0

31

Scag HG71287

Fan Kit

$

$

Currently unavailable

32

Scag HG51348

Washer

$

$

Not available

33

Scag HG52016

Bracket, Shroud

$

$

Not available

34

Scag HG52014

Fan

$23.99

$

Usually ships in 2-12 days

0

35

Scag HG52256

Washer

$

$

Currently unavailable

36

Scag HG44809

Nut

$

$

Currently unavailable
