STTII-61V-25KBD - Scag Turf Tiger II 61" Zero-Turn Mower, 25hp Kubota (SN: V6800001 - V6899999) ELECTRICAL SCHEMATIC - KUBOTA 25KBD Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 25hp Kubota

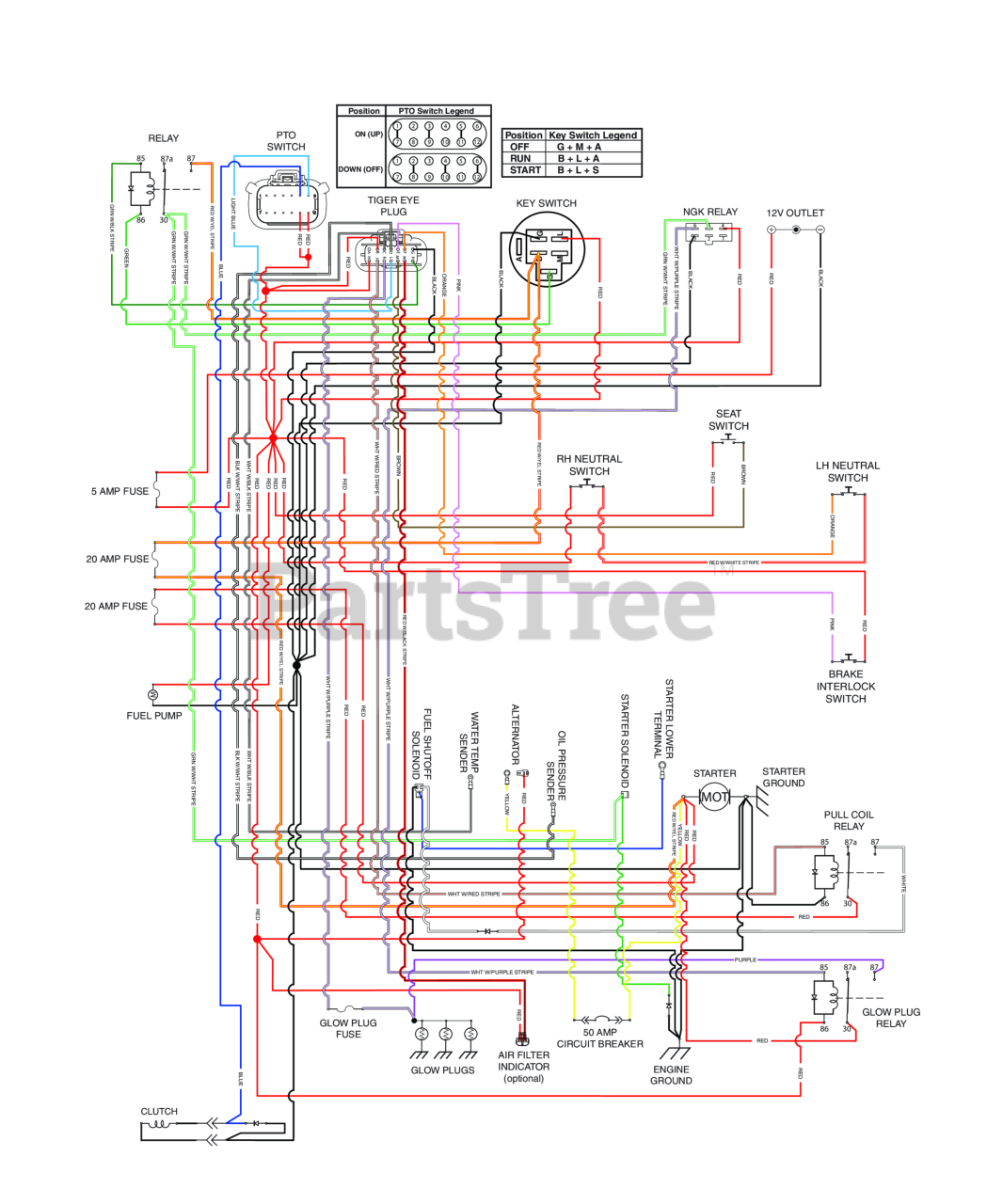

ELECTRICAL SCHEMATIC - KUBOTA 25KBD Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
