STTII-61V-25CH-LP-EFI - Scag Turf Tiger II 61" Zero-Turn Mower, 25hp Kohler (SN: S8900001 - S8999999) STTII ENGINE & ATTACHING PARTS - KOHLER 25CH-LP-EFI Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 25hp Kohler

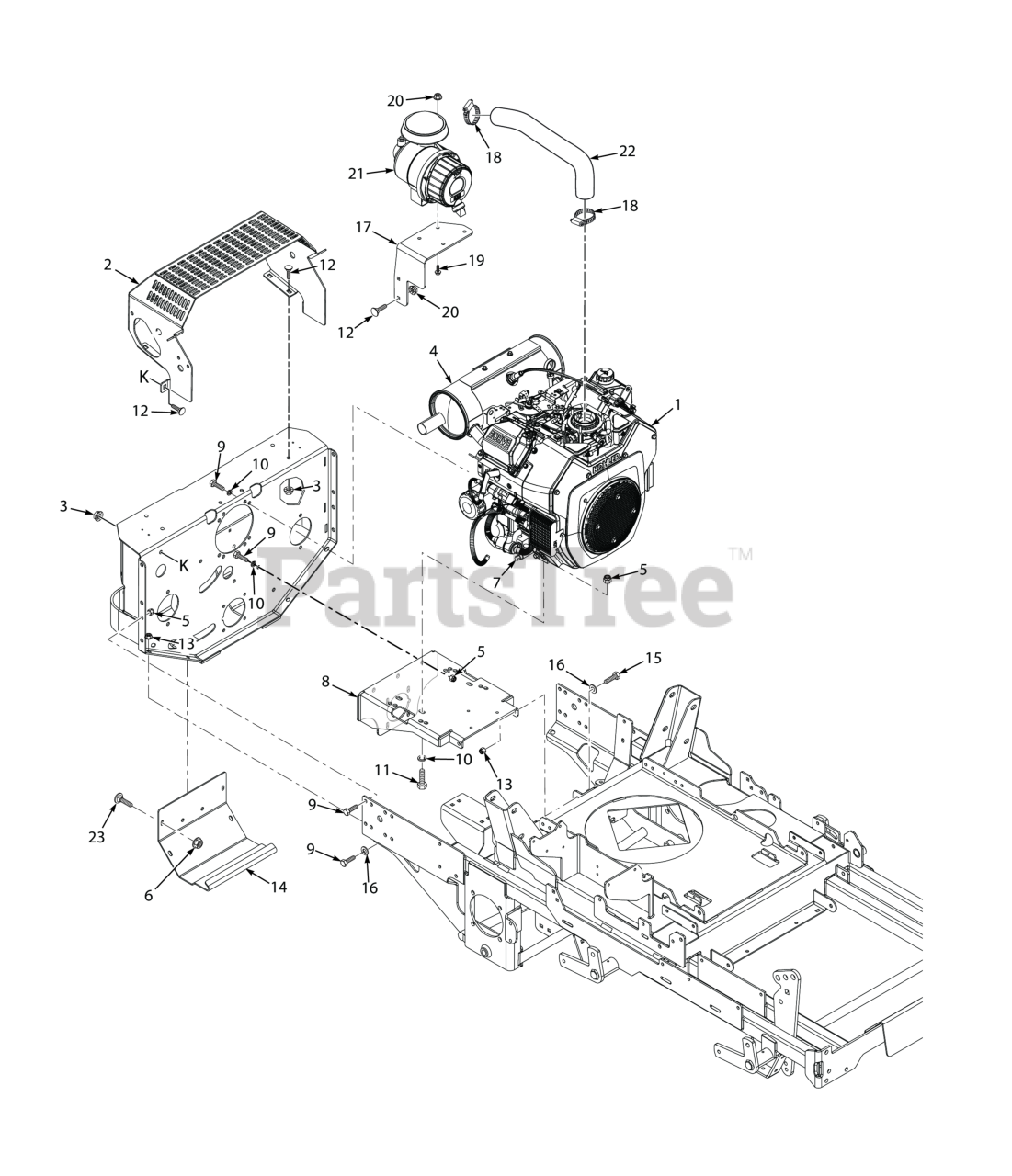

STTII ENGINE & ATTACHING PARTS - KOHLER 25CH-LP-EFI Parts Diagram

  • Title

1

Scag 485380

Engine, 25 LP-EFI - Kohler

Note: Not available through Scag.

$

$

Currently unavailable

2

Scag 427561

Guard, Muffler

$273.99

$

Usually ships in 2-12 days

0

3

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

4

Muffler, 25 LP-EFI - Kohler

Note: Available through the engine manufacturer.

$

$

Not available

5

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

7

Oil Drain, Kohler 25 LP-EFI

Note: Available through the engine manufacturer.

$

$

Not available

8

Scag 452726

Plate Weldment, Engine Mounting
(Superseded to 453380)

$142.99

$

Usually ships in 2-12 days

0

9

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

10

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

13

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 427071

Cover, Rear

$36.99

$

In Stock, only 1 left!

0

15

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

16

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

17

Scag 427909

Bracket, Air Cleaner Mount

$28.99

$

Usually ships in 2-12 days

0

18

Scag 48136-25

Clamp, 2-3/4" Max. Dia.

$4.99

$

Usually ships in 2-12 days

0

19

Scag 04017-17

Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head

$0.99

$

Usually ships in 2-12 days

0

20

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

21

Air Filter Assembly

Note: Available through the engine manufacturer.

$

$

Not available

22

Scag 486043

Hose, Air Intake

$66.99

$

Usually ships in 2-12 days

0

23

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0
