STTII-61V-25CH-LP-EFI - Scag Turf Tiger II 61" Zero-Turn Mower, 25hp Kohler (SN: S8900001 - S8999999) (Rev 01) STTII FUEL SYSTEM - KOHLER 25CH-LP-EFI Parts Diagram

Turf Tiger II 61" Zero-Turn Mower, 25hp Kohler

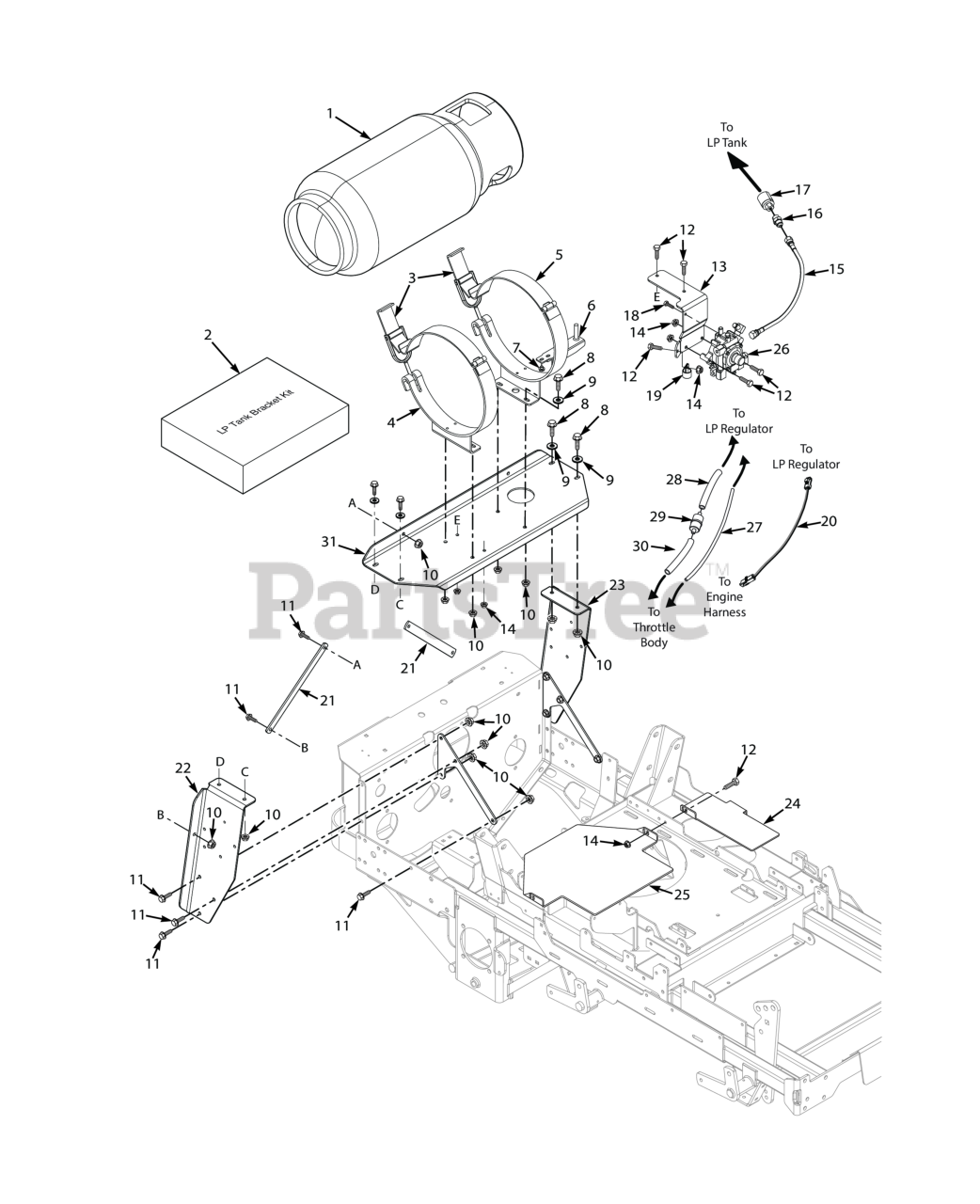

STTII FUEL SYSTEM - KOHLER 25CH-LP-EFI Parts Diagram

  • Title

1

Scag 485376

LP Tank - Vapor

Note: (INCL 17)

$1182.99

$

Usually ships in 2-12 days

0

2

Scag 483903

Mounting Bracket Kit

Note: (INCL # 3, 4, 5, 6, 7)

$362.99

$

Usually ships in 2-12 days

0

3

Scag 483911

Handle, LP Tank Mounting Bracket

$26.99

$

In Stock, only 4 left!

0

4

Scag 483910

Mounting Bracket, LP Tank Rear
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

5

Scag 483909

Mounting Bracket, LP Tank Front
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

6

Scag 483912

LP Tank Locating Bracket

$77.99

$

Usually ships in 2-12 days

0

7

Scag 04001-07

Bolt, Hex Head 1/2-13 x 1.5"

$0.99

$

In Stock, Qty 13

0

Scag 04031-09

LOCKWASHER, 5/16" INTERNAL TOOTH

$0.99

$

In Stock, Qty 8

0

Scag 04040-04

Flatwasher, 5/16-.344 x .688 x .065 (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

8

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

11

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

12

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 427688

Mounting Bracket, Regulator

$27.99

$

Usually ships in 2-12 days

0

14

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

15

Scag 486165

LP Fuel Line, 17"

$102.99

$

Usually ships in 2-12 days

0

16

Scag 483889-01

Adapter Fitting, 9/16-18 SAE x 1/4" Pipe

$5.99

$

Usually ships in 2-12 days

0

17

Scag 485377

LP Quick Coupler

$109.99

$

Usually ships in 2-12 days

0

18

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

19

Scag 48030-10

Clamp, Cable 3/4" ID.

$0.99

$

Usually ships in 2-12 days

0

20

Scag 486164

Adapter, Wire Harness

$168.99

$

Usually ships in 2-12 days

0

21

Scag 422386

Brace, Engine Mounting

$13.99

$

Usually ships in 2-12 days

0

22

Scag 426741

Mounting Bracket, Tank Support - RH

$61.99

$

Usually ships in 2-12 days

0

23

Scag 426740

Mounting Bracket, Tank Support - LH

$61.99

$

Usually ships in 2-12 days

0

24

Scag 428221

Cover, Fuel Fill Hole

$33.99

$

Usually ships in 2-12 days

0

25

Scag 428222

Cover, Fuel Tank Hole

$37.99

$

Usually ships in 2-12 days

0

26

LP Regulator

Note: Available through the engine manufactuer.

$

$

Not available

27

Hose

Note: Available through the engine manufactuer.

$

$

Not available

28

Hose

Note: Available through the engine manufactuer.

$

$

Not available

29

Fuel Filter

Note: Available through the engine manufactuer.

$

$

Not available

30

Hose

Note: Available through the engine manufactuer.

$

$

Not available

31

Scag 427753

Support, LP Tank

$88.99

$

Usually ships in 2-12 days

0
