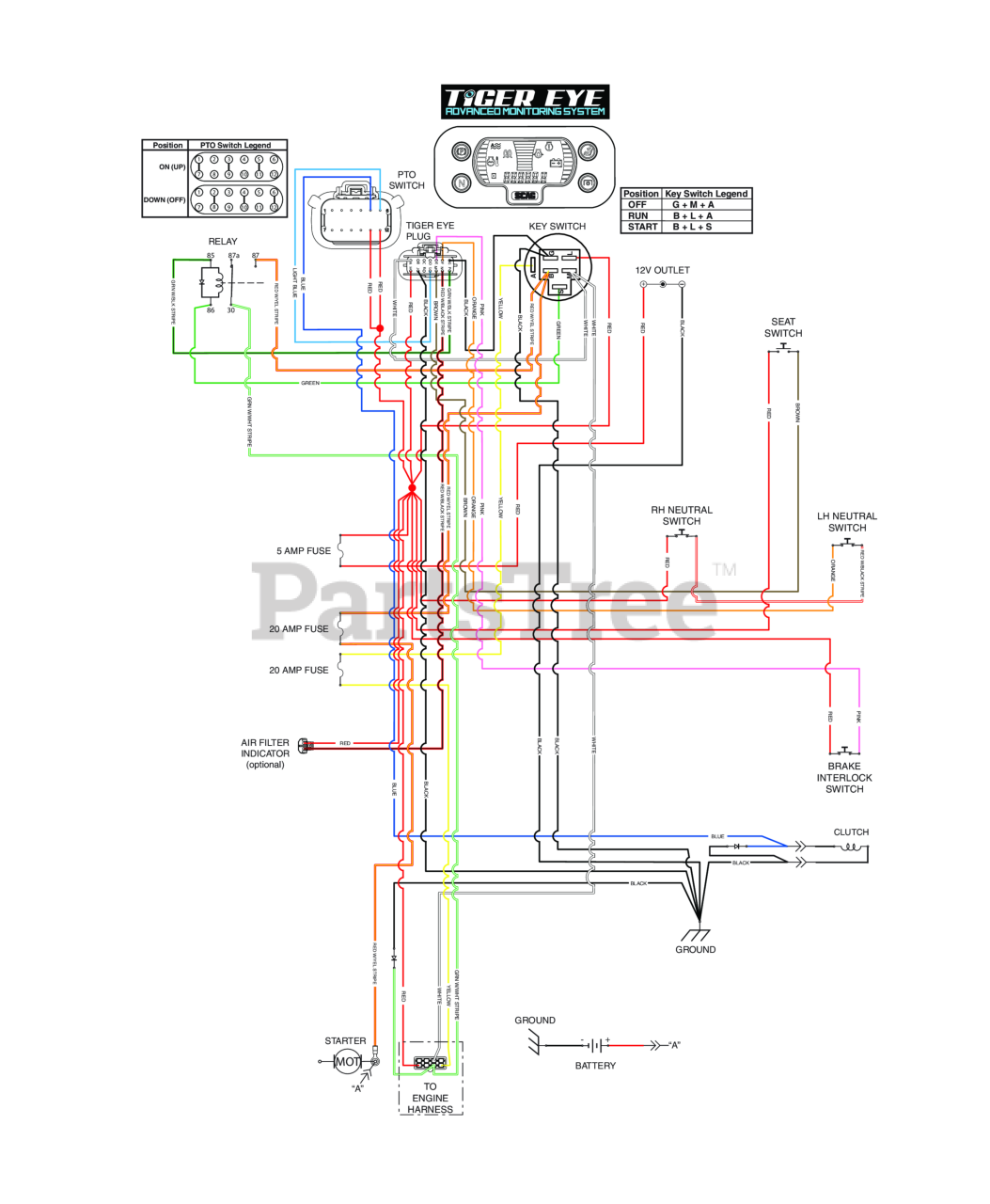

STTII-52V-31BV - Scag Turf Tiger II 52" Zero-Turn Mower, 31hp Vanguard (SN: S8800001 - S8899999) ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 31BV Parts Diagram

Turf Tiger II 52" Zero-Turn Mower, 31hp Vanguard

ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 31BV Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
