STTII-52V-31BV - Scag Turf Tiger II 52" Zero-Turn Mower, 31hp Vanguard (SN: R2400001 - R2499999) ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 31BV & 35BV Parts Diagram

Turf Tiger II 52" Zero-Turn Mower, 31hp Vanguard

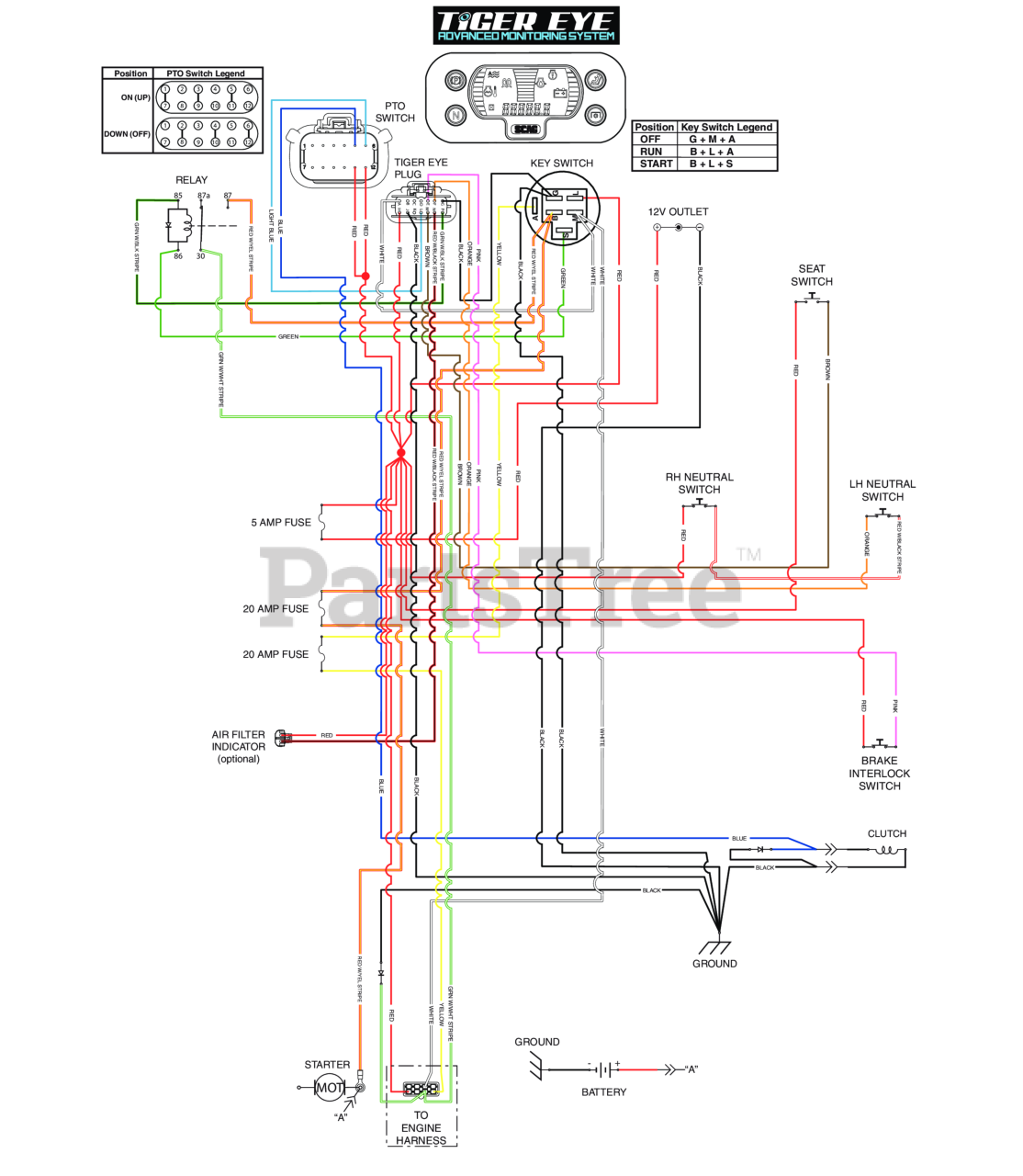

ELECTRICAL SCHEMATIC - BRIGGS & STRATTON 31BV & 35BV Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
