STTII-52V-26CH-EFI - Scag Turf Tiger II 52" Zero-Turn Mower, 26hp Kohler (SN: N0300001 - N0399999) STTII Cutter Deck Controls Parts Diagram

Turf Tiger II 52" Zero-Turn Mower, 26hp Kohler

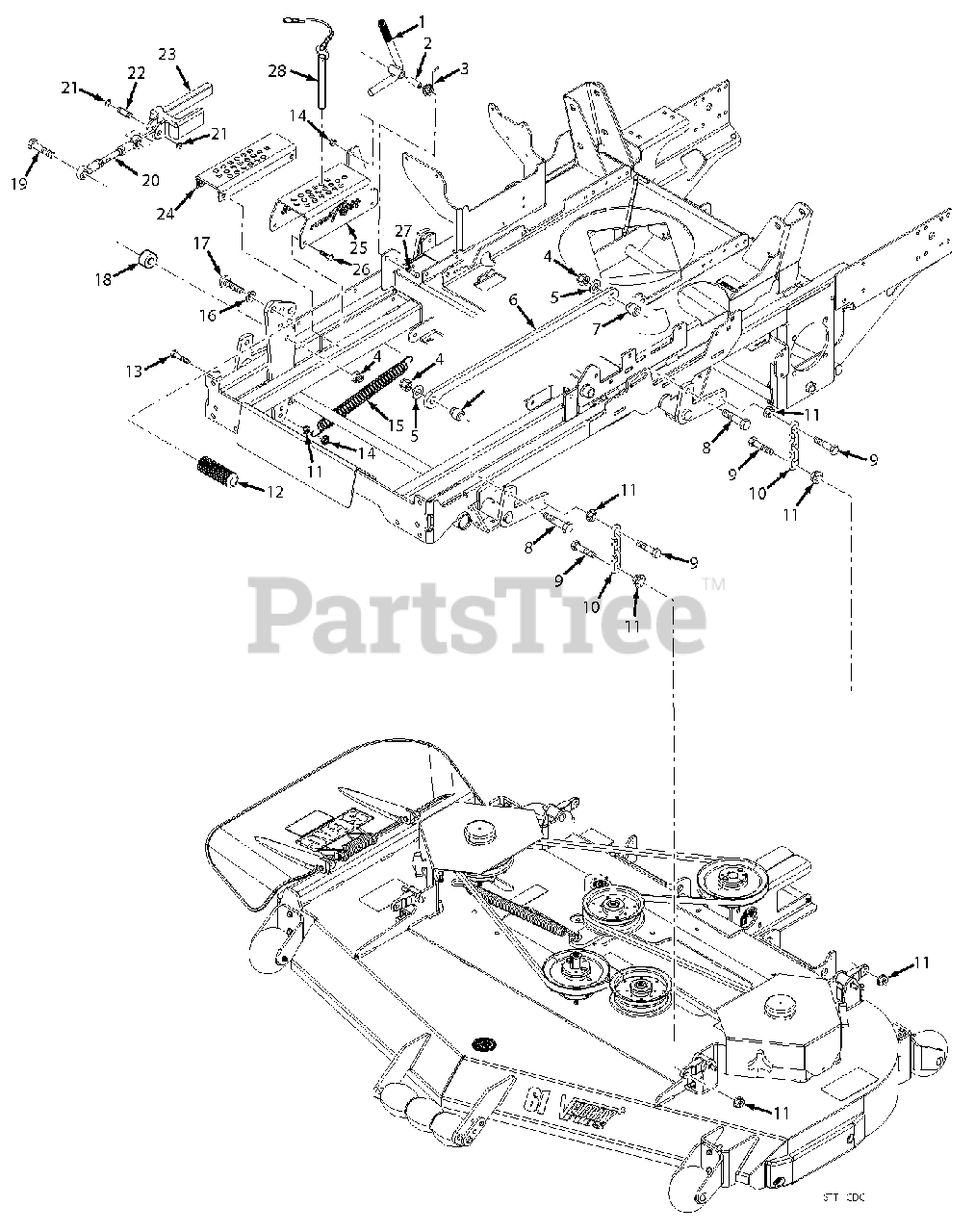

STTII Cutter Deck Controls Parts Diagram

  • Title

1

Scag 462856

Deck Latch Weldment w/Grip

$25.99

$

Usually ships in 2-12 days

0

1

Scag 481477

Grip

$4.49

$

In Stock, only 2 left!

0

2

Scag 43668

Spacer, Deck Latch

$2.99

$

Usually ships in 2-12 days

0

3

Scag 484191

Spring, Torsion Lever Return

$7.49

$

Usually ships in 2-12 days

0

4

Scag 04021-07

Nut, Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

5

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

6

Scag 427019

Link, Deck Lift

$28.99

$

Usually ships in 2-12 days

0

7

Scag 431018

Pivot, Deck Link

$6.49

$

In Stock, only 2 left!

0

8

Scag 04001-153

Bolt, Hex Head 1/2-13 x 2-1/4"

$2.49

$

In Stock, Qty 8

0

9

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

10

Scag 48540

Chain
(Superseded to 482628)

$11.99

$

In Stock, Qty 15

0

11

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 424504

Pedal, Foot

$14.99

$

In Stock, only 1 left!

0

13

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 481598

Spring, Ext. Deck Lift

$65.99

$

Usually ships in 2-12 days

0

16

Scag 04030-07

Lockwasher, 5/8"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04105-01

Capscrew, 5/8-11 x 1-1/2"
(Superseded to 04108-04)

$2.99

$

Usually ships in 2-12 days

0

18

Scag 43508

Spacer

$11.99

$

Usually ships in 2-12 days

0

19

Scag 04001-72

Bolt, Hex Head 1/2-13 x 2"

$1.99

$

Usually ships in 2-12 days

0

20

Scag 482534

Linkage, Deck Lift

$83.99

$

Usually ships in 2-12 days

0

21

Scag 04050-18

Retaining Ring, 1/2" Ext. "E"

$17.99

$

In Stock, Qty 8

0

22

Scag 43487

Pin, Deck Lift

$26.99

$

In Stock, only 1 left!

0

23

Scag 485570

Slide, Height Adjust

$41.99

$

Usually ships in 2-12 days

0

24

Scag 452724

Weldment, Lower Cutting Height

$65.99

$

Usually ships in 2-12 days

0

25

Scag 426977

Adjustment Bracket, Cutting Height Upper

$75.99

$

Usually ships in 2-12 days

0

26

Scag 04006-02

Bolt, Hex Head 5/16-18 x 1-1/4"

$1.99

$

Usually ships in 2-12 days

0

27

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

28

Scag 483345

Ring Pin Assy., w/Lanyard

$11.99

$

In Stock, Qty 7

0
