STT72V-31KB-DF - Scag Turf Tiger 72" Zero-Turn Mower, 31hp Kubota (SN: K7600001 - K7699999) STT Fuel System Parts Diagram

Turf Tiger 72" Zero-Turn Mower, 31hp Kubota

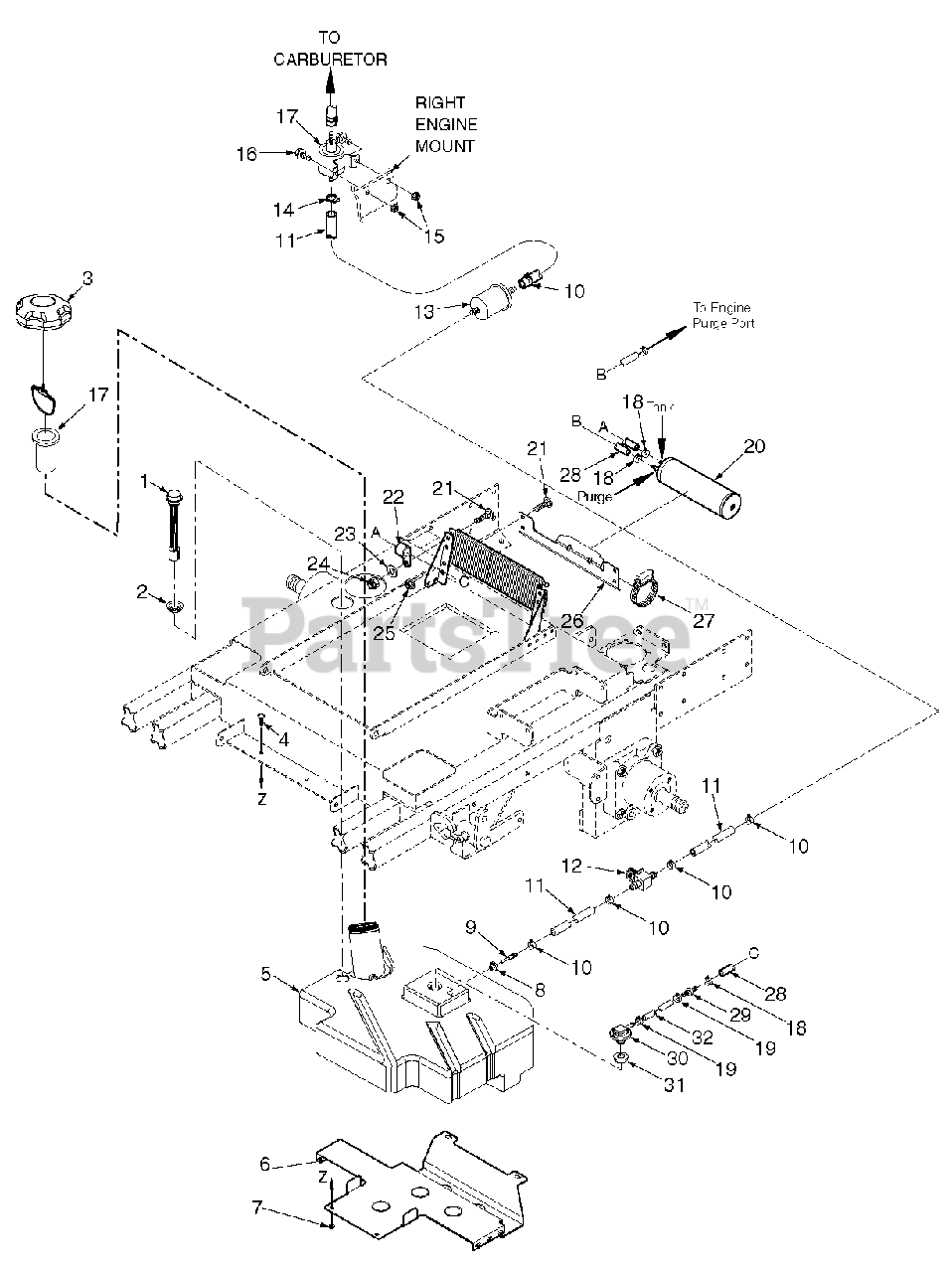

STT Fuel System Parts Diagram

  • Title

1

Scag 484251

Fuel Gauge Assembly

$93.99

$

Usually ships in 2-12 days

0

2

Scag 484242

Seal, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

3

Scag 484286

Fuel Cap, Tethered

$54.99

$

In Stock, only 1 left!

0

3

Scag 484297

Fuel Cap w/Tethered - California Models Only

Note: (not shown)

$65.99

$

Usually ships in 2-12 days

0

4

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

5

Scag 462384

Fuel Tank Assembly, Low Perm. - STT

Note: (incl. # 1, 2, 8, 9, 30, 31)

$608.99

$

Usually ships in 2-12 days

0

6

Scag 425522

Support Bracket, Fuel Tank

$106.99

$

Usually ships in 2-12 days

0

7

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

8

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

9

Scag 483749

Hose Fitting

$12.99

$

In Stock, only 1 left!

0

10

Scag 48059-04

Clamp, Fuel Hose 5/16" I.D.

$0.99

$

Usually ships in 2-12 days

0

11

Scag 483620

Fuel Hose, 5/16" I.D. Non-Perm (791DFI) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

12

Scag 481308

Valve, Fuel Shut-Off

$42.99

$

Usually ships in 2-12 days

0

13

Fuel Filter, Kubota

Note: Available through engine manufacturer only.

$

$

Not available

14

Scag 48136-13

Hose Clamp, 0.69 Dia.

$7.49

$

In Stock, Qty 20+

0

15

Scag 04021-08

Nut, Elastci Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

17

Fuel Pump, Kubota (p/n EG601-52031)

Note: Available through engine manufacturer only.

$

$

Not available

18

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

19

Scag 48059-02

Clamp, Fuel Hose 7/32 ID

$0.99

$

In Stock, Qty 19

0

20

Scag 484342

Carbon Canister

$103.99

$

In Stock, only 1 left!

0

21

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 48030-22

Clamp

$1.99

$

Usually ships in 2-12 days

0

23

Scag 04040-03

Flatwasher, 1/4-.281 x .562 x .049

$0.99

$

In Stock, Qty 8

0

24

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

25

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

26

Scag 425496

Bracket, RH Canister Mounting

$25.99

$

Usually ships in 2-12 days

0

27

Scag 48136-17

Clamp

$7.49

$

Usually ships in 2-12 days

0

28

Scag 484345

Hose, 3/16

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

29

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

30

Scag 484284

Valve, Rollover
(Superseded to 484333)

$14.99

$

In Stock, only 1 left!

0

31

Scag 484284

Grommet, Viton
(Superseded to 484333)

$14.99

$

In Stock, only 1 left!

0

32

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0
