STT72V-26CH-EFI - Scag Turf Tiger 72" Zero-Turn Mower, 26hp Kohler (SN: K2500001 - K2599999) STT Hydraulic System Parts Diagram

Turf Tiger 72" Zero-Turn Mower, 26hp Kohler

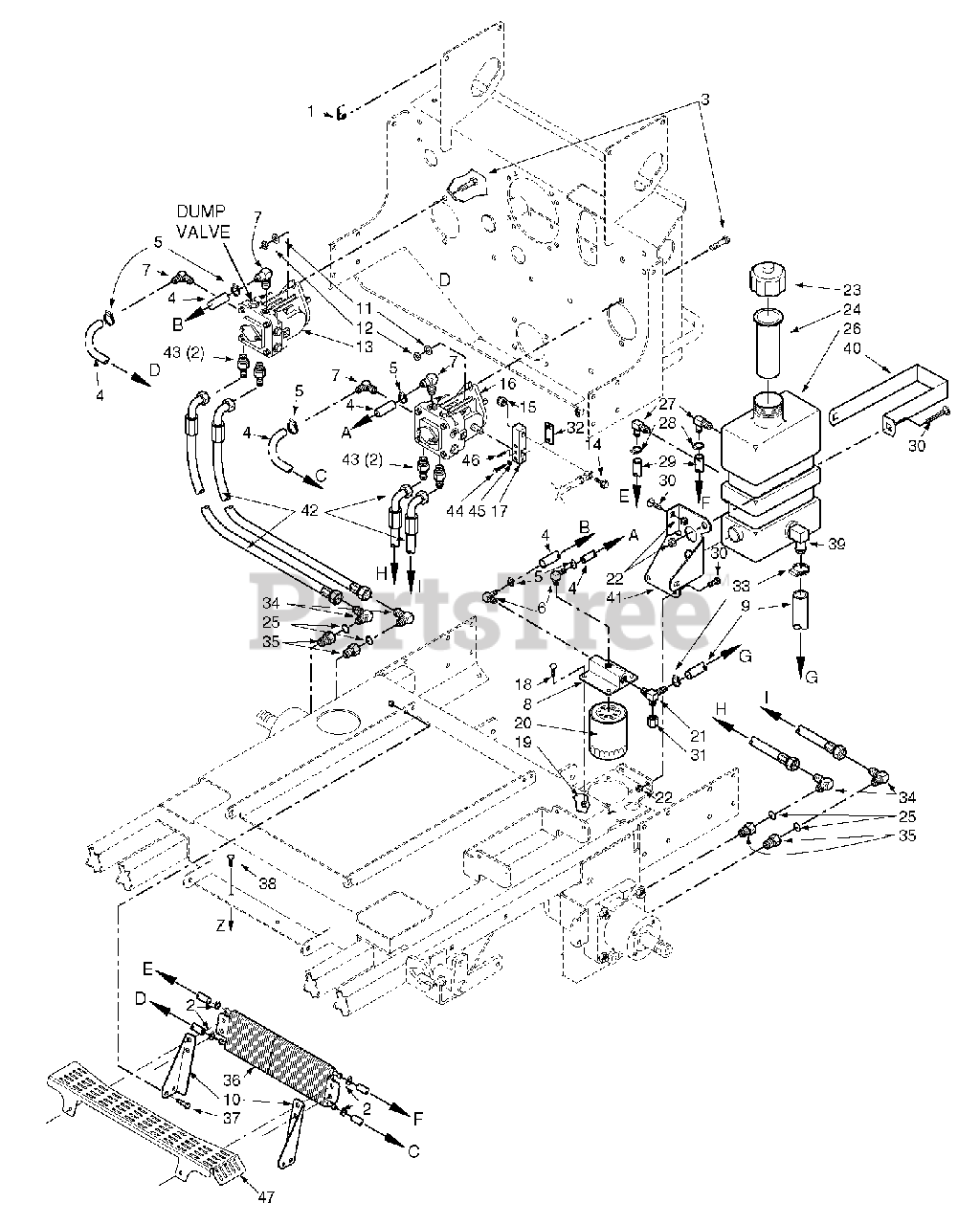

STT Hydraulic System Parts Diagram

  • Title

1

Scag 04110-01

U-Nut 1/4-20

$1.49

$

In Stock, Qty 18

0

2

Scag 48136-13

Hose Clamp, 0.69" Dia.

$7.49

$

In Stock, Qty 20+

0

3

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2.0"

$0.99

$

In Stock, Qty 8

0

4

Scag 48811

Hose, 3/8" ID Pushlock - (order by inch)

$0.99

$

In Stock, Qty 20+

0

5

Scag 48136-07

Clamp, Hose 1/2"

$

$

Not available

6

Scag 481301-03

Elbow, 90 Degree - 1/4" NPT x 3/8" Hose

$10.99

$

In Stock, only 2 left!

0

7

Scag 482266-01

Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose

$31.99

$

Usually ships in 2-12 days

0

8

Scag 48471-02

Oil Filter Base

$

$

Not available

9

Scag 482606

Hose Assembly, 1/2" ID (Tank to Filter Base)

$25.99

$

Usually ships in 2-12 days

0

10

Scag 425437

Mounting Bracket - LH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

10

Scag 425490

Mounting Bracket - LH, Oil Cooler (35BVAC)

$27.99

$

Usually ships in 2-12 days

0

10

Scag 425438

Mounting Bracket - RH, Oil Cooler

$22.99

$

Usually ships in 2-12 days

0

10

Scag 425491

Mounting Bracket - RH, Oil Cooler (35BVAC)

$27.99

$

Usually ships in 2-12 days

0

11

Scag 04043-04

Flatwasher, 3/8" (.391 x .938 x .105")

Note: Grade 8

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 482696

Pump, Right Hand

$1078.99

$

Usually ships in 2-12 days

0

13

Scag 483100

Pump w/Fan, Right Hand (26DFI, 35BVAC)

$811.99

$

In Stock, only 1 left!

0

14

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

15

Scag 04021-09

Nut, Hex, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

16

Scag 482695

Pump, Left Hand

$1078.99

$

Usually ships in 2-12 days

0

16

Scag 483101

Pump w/Fan, Left Hand 26DFI, 35BVAC)

$811.99

$

Usually ships in 2-12 days

0

17

Scag 481793

Block, Pump Control

$55.99

$

Usually ships in 2-12 days

0

18

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1.0" Zinc

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 48758

Oil Filter

$26.99

$

In Stock, Qty 17

0

21

Scag 482483

Tee, 3/4" O-Ring x JIC x 1/2" Hose

$34.99

$

In Stock, only 1 left!

0

22

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

23

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

24

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

25

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

26

Scag 461451

Oil Reservoir Assembly

Note: (incl. 24, 27, 39)

$205.99

$

In Stock, only 1 left!

0

27

Scag 482572

Elbow, 90 Degree .38" Hose

$9.99

$

Usually ships in 2-12 days

0

27

Scag 482571

Bushing, .56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

28

Scag 48136-13

Hose Clamp, 0.69" Dia.

$7.49

$

In Stock, Qty 20+

0

29

Scag 48811

Hose, 3/8" ID, Pushlock (order by inch)

$0.99

$

In Stock, Qty 20+

0

30

Scag 04010-10

Screw, Phillips Head, 1/4-20

$0.99

$

In Stock, Qty 12

0

31

Scag 48571-02

Cap

$5.99

$

Usually ships in 2-12 days

0

32

Scag 422694

Clamp Plate, Pump Control

$13.99

$

In Stock, only 1 left!

0

33

Scag 48136-05

Clamp, Hose

$3.99

$

In Stock, only 2 left!

0

34

Scag 48350-02

Elbow, 90 Degree, 1/2" x 1/2" (35BV Only)

$25.99

$

Usually ships in 2-12 days

0

34

Scag 48350-05

Elbow, 90 Degree, 5/8" x 1/2"

$32.99

$

Usually ships in 2-12 days

0

35

Scag 48938-02

Bushing, 7/8"-14 JIC x 3/4"-16 O-Ring

$14.99

$

Usually ships in 2-12 days

0

36

Scag 482505

Cooler, Oil

$241.99

$

Usually ships in 2-12 days

0

37

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04003-02

Bolt, Carraige 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 482574

Elbow, 90 Degree

$18.99

$

In Stock, only 1 left!

0

39

Scag 482573

Bushing, .78" Dia. Viton

$13.99

$

In Stock, only 2 left!

0

40

Scag 423513

Strap, Hydraulic Tank

$14.99

$

In Stock, only 1 left!

0

41

Scag 423485

Support Bracket, Hydraulic Tank

$105.99

$

Usually ships in 2-12 days

0

42

Scag 484459

Hose Assembly, Pump

$84.99

$

In Stock, only 3 left!

0

43

Scag 48572-04

Union, 3/4"-16 JIC x 3/4"-16 O-Ring

$8.49

$

In Stock, only 1 left!

0

44

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

45

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

46

Scag 04060-09

Roll Pin, Spring 3/16 x 3/4"

$1.49

$

In Stock, only 3 left!

0

47

Scag 425659

Screen Guard, Kohler Engine

Note: Air Cooled Models Only.

$90.99

$

Usually ships in 2-12 days

0

47

Scag 425662

Screen Guard, BVAC Engine

Note: Air Cooled Models Only.

$67.99

$

Usually ships in 2-12 days

0
