STT72V-25KBD - Scag Turf Tiger 72" Zero-Turn Mower, 25hp Kubota Diesel (SN: K2300001 - K2399999) STT Suspension Seat Parts Diagram

Turf Tiger 72" Zero-Turn Mower, 25hp Kubota Diesel

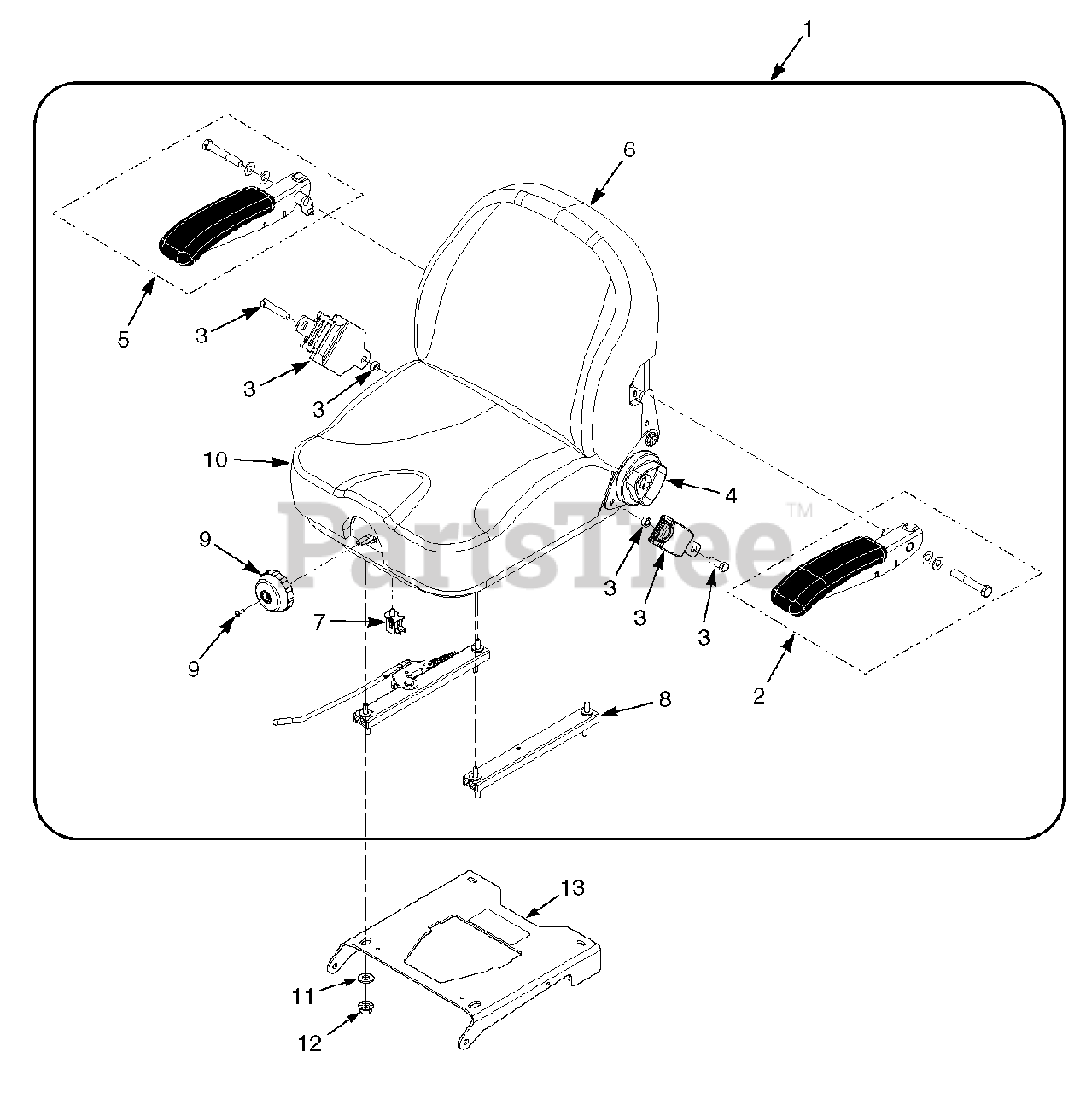

STT Suspension Seat Parts Diagram

  • Title

1

Scag 922A

Suspension Seat Assembly w/seat belt

$1057.99

$

Usually ships in 2-12 days

0

2

Scag 484709

Armrest Kit, LH

$157.99

$

In Stock, only 1 left!

0

3

Scag 484717

Seat Belt Kit

$167.99

$

Usually ships in 2-12 days

0

4

Scag 484711

Recliner Knob Kit

$30.99

$

In Stock, only 1 left!

0

5

Scag 484710

Armrest Kit, RH

$157.99

$

Usually ships in 2-12 days

0

6

Scag 484712

Back Cover

$221.99

$

Usually ships in 2-12 days

0

7

Scag 481638

Seat Switch

$15.99

$

In Stock, Qty 20+

0

8

Scag 484713

Track Kit

$186.99

$

Usually ships in 2-12 days

0

9

Scag 484714

Suspension Knob Kit

$65.99

$

In Stock, only 1 left!

0

10

Scag 484708

Seat Cushion

$166.99

$

In Stock, only 1 left!

0

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

13

Scag 491730

Seat Plate Weldment w/Decal

$

$

Currently unavailable
