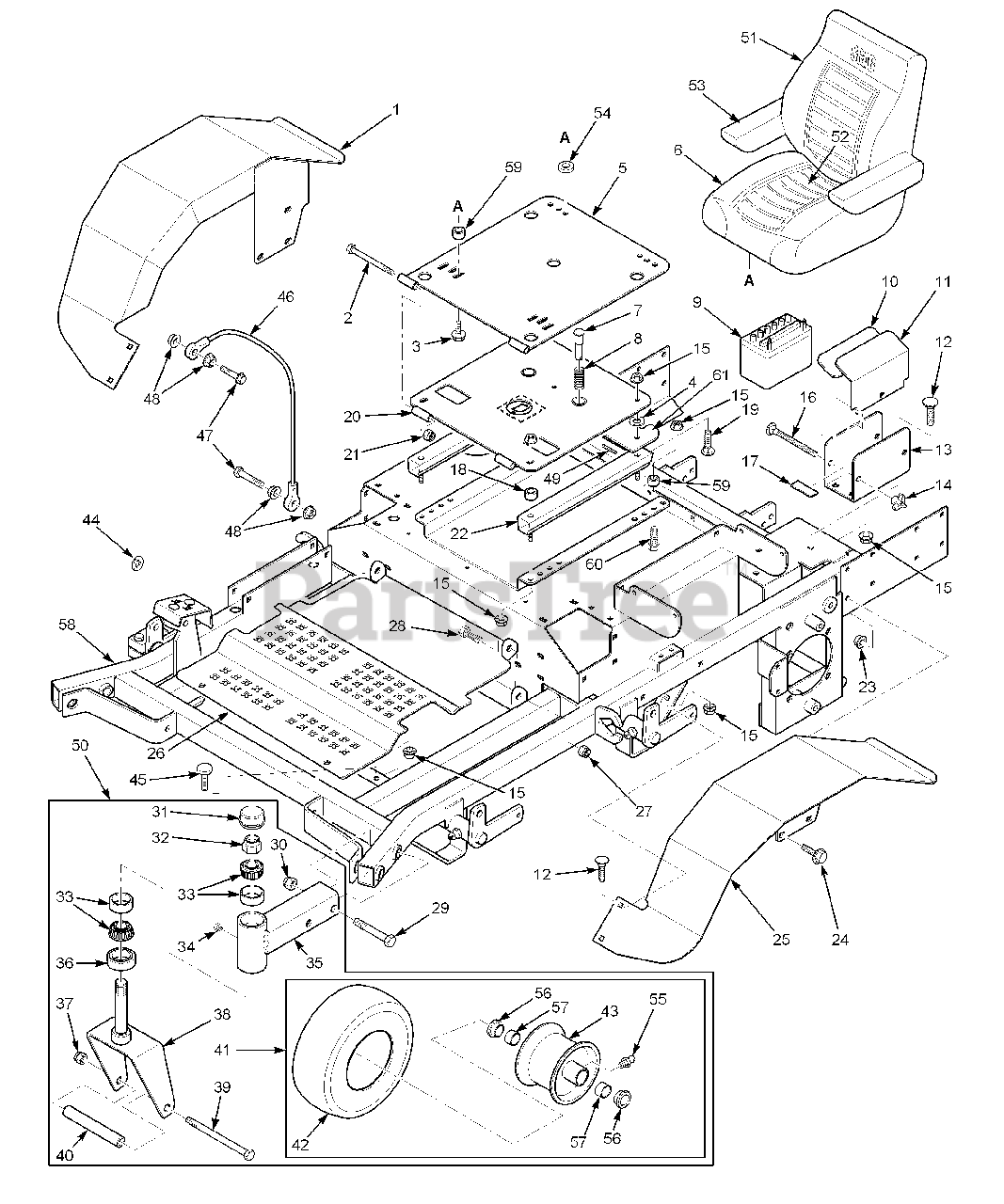

STT72A-27KA - Scag Turf Tiger 72" Zero-Turn Mower, 27hp Kawasaki (SN: 7140001 - 7149999) Sheet Metal Components Parts Diagram

Turf Tiger 72" Zero-Turn Mower, 27hp Kawasaki

Sheet Metal Components Parts Diagram

  • Title

1

Scag 451079

Fender Weldment, RH
(Superseded to 451481)

$266.99

$

Usually ships in 2-12 days

0

2

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

3

Scag 04017-16

Screw, Hex Serrated Flange 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

4

Scag 04041-11

Flatwasher, 3/8"

Note: (.406 x 1.50 x .179)

$1.99

$

In Stock, only 3 left!

0

5

Scag 45926

Seat Plate Weldment, Upper

$162.99

$

Usually ships in 2-12 days

0

6

Scag 482147

Seat Assembly w/armrest
(Superseded to 482597)

$1021.99

$

In Stock, only 1 left!

0

7

Scag 43462

Pin Retainer, Spring

$27.99

$

In Stock, only 1 left!

0

8

Scag 481389

Spring, Seat

$3.49

$

In Stock, only 4 left!

0

9

Scag 48015

Battery

$

$

Not available

10

Scag 48903

Pad, Battery Cover

$12.99

$

Usually ships in 2-12 days

0

11

Scag 421274

Cover, Battery

$41.99

$

Usually ships in 2-12 days

0

12

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 421703

Plate, Battery Box
(Superseded to 423308)

$52.99

$

In Stock, only 1 left!

0

14

Scag 04029-01

Wing Nut, 1/4-20 x 3/4"

$2.49

$

In Stock, Qty 19

0

15

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

17

Scag 48657

Rubber Pad

$5.99

$

Usually ships in 2-12 days

0

18

Scag 43336

Spacer

$9.99

$

Usually ships in 2-12 days

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 45925

Seat Plate Weldment, Lower

$250.99

$

Usually ships in 2-12 days

0

21

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 461232

Seat Adjustment, Track Set

$152.99

$

In Stock, only 1 left!

0

23

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04017-27

Screw, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 451078

Fender Weldment, LH
(Superseded to 451480)

$174.99

$

Usually ships in 2-12 days

0

26

Scag 422567

Foot Plate
(Superseded to 423309)

$

$

Not available

27

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 6

0

29

Scag 04001-125

Bolt, Hex Head 5/8-11 x 4"

$5.99

$

In Stock, only 4 left!

0

30

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

31

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-20

Nut, Hex Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

33

Scag 481657

Bearing W/Race
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

34

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

35

Scag 45939

Extention Weldment, Caster 72A

Note: (LH)

$553.99

$

Usually ships in 2-12 days

0

35

Scag 451128

Extention Weldment, Caster 72A

Note: (RH)

$

$

Not available

36

Scag 481025

Seal, 2.00 OD. x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

37

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

38

Scag 45934

Yoke Weldment, Caster

$152.99

$

In Stock, only 2 left!

0

39

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2"

$5.49

$

In Stock, Qty 20+

0

40

Scag 43430

Sleeve

$15.99

$

In Stock, Qty 5

0

41

Scag 481551

Wheel Assy

Note: (Inc.items 42,43 & 55 thru 57)

$200.99

$

Usually ships in 2-12 days

0

42

Scag 481613

Tire

$120.99

$

In Stock, only 2 left!

0

43

Scag 481612

Rim Assembly

Note: (Includes item 55)

$

$

Not available

44

Scag 04041-07

Washer, 3/8’

$0.99

$

In Stock, Qty 20+

0

45

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

46

Scag 48566

Cable, Seat Stop

$16.99

$

In Stock, only 1 left!

0

47

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

48

Scag 04019-02

Nut, Hex Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

49

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

50

Scag 46988

Caster Wheel Assy 72A

Note: (Inc. 31 thru 47) (LH)

$

$

Not available

50

Scag 461189

Caster Wheel Assy 72A

Note: (Inc. 31 thru 47) (RH)

$

$

Not available

51

Scag 482341

Back Cushion Cover
(Superseded to 482595)

$1323.99

$

Usually ships in 2-12 days

0

52

Scag 482342

Seat Cushion Cover
(Superseded to 482595)

$1323.99

$

Usually ships in 2-12 days

0

53

Scag 482344

Arm Rest, Both Sides
(Superseded to 482595)

$

$

Not available

Scag 482343

Arm Rest Cover
(Superseded to 482595)

$1323.99

$

Usually ships in 2-12 days

0

54

Scag 43077

Spacer

$4.99

$

In Stock, only 1 left!

0

55

Scag 48114-06

Grease Fitting

$3.99

$

Usually ships in 2-12 days

0

56

Scag 481770

Bearing, Oilite

$4.99

$

In Stock, Qty 20+

0

57

Scag 481846

Roller Bearing

$18.99

$

In Stock, only 2 left!

0

58

Scag 461392

Main Frame

$

$

Not available

59

Scag 43535

Spacer, Seat

$11.99

$

In Stock, only 1 left!

0

60

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

Note: (KA only)

$0.99

$

In Stock, Qty 20+

0

61

Scag 423346

Stop, Seat

Note: (KA only)

$

$

Not available
