STT72A-27KA - Scag Turf Tiger 72" Zero-Turn Mower, 27hp Kawasaki (SN: 7140001 - 7149999) Engine And Attaching Parts - 23HP & 27HP Kawasaki Parts Diagram

Turf Tiger 72" Zero-Turn Mower, 27hp Kawasaki

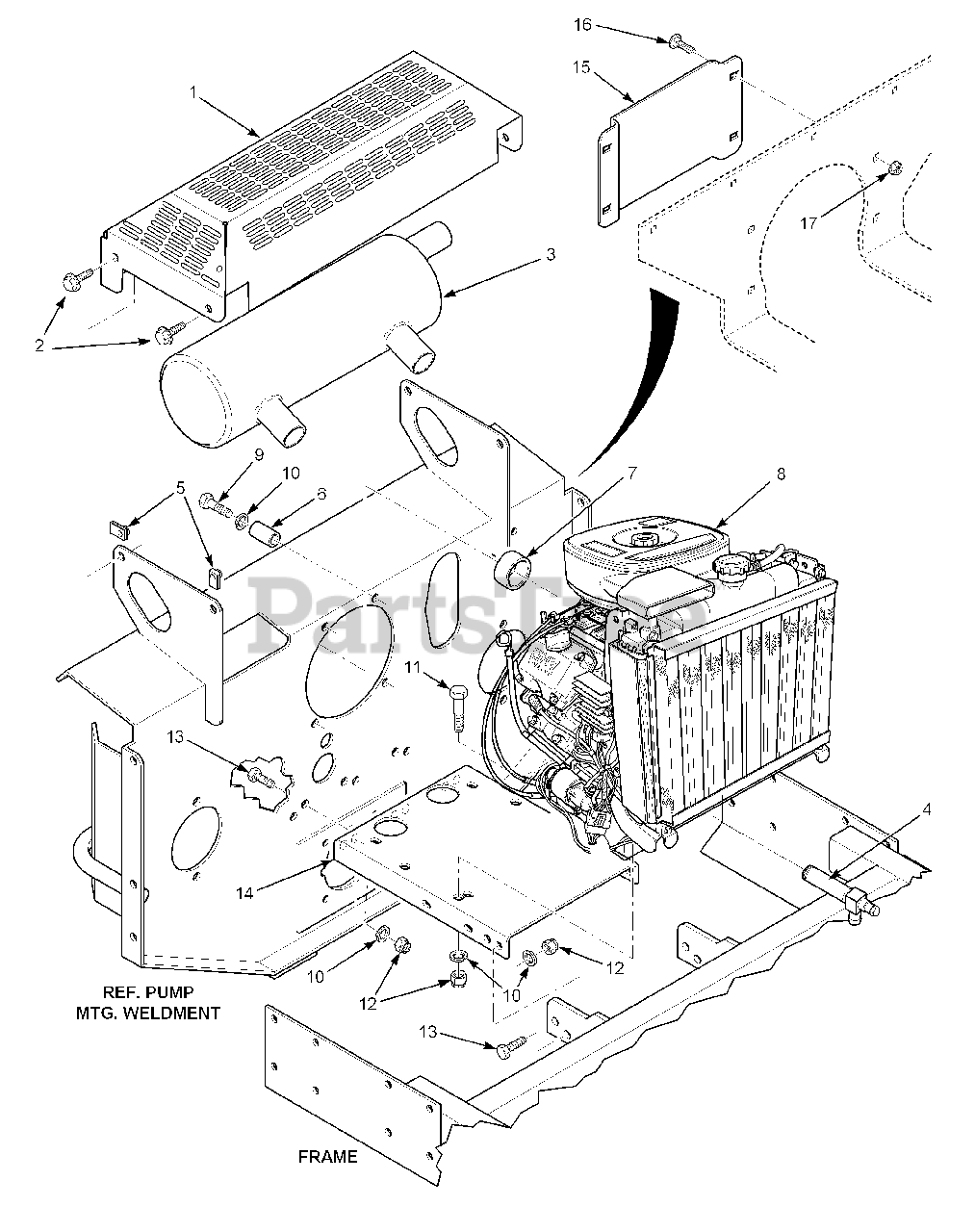

Engine And Attaching Parts - 23HP & 27HP Kawasaki Parts Diagram

  • Title

1

Scag 451378

Muffler Guard

$263.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Scag 482310

Muffler
(Superseded to 482699)

$305.99

$

Usually ships in 2-12 days

0

4

Scag 482351

Extension, Oil Drain

$34.99

$

Usually ships in 2-12 days

0

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

6

Scag 43498

Spacer, Engine Bolt

$18.99

$

Usually ships in 2-12 days

0

7

Scag 43420

Spacer, Engine

Note: (Kawasaki)

$7.99

$

Usually ships in 2-12 days

0

8

Scag 482271

Engine, Kawasaki 27KA

Note: (Available only through Kawasaki)

$

$

Currently unavailable

9

Scag 04002-03

Bolt, M8-1.25 x 25 Grade 8.8

$0.99

$

In Stock, only 1 left!

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

14

Scag 422396

Plate, Engine Mounting

$76.99

$

Usually ships in 2-12 days

0

15

Scag 422475

Rear Cover

$31.99

$

Usually ships in 2-12 days

0

16

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0
