STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: F6200001 - F6299999) STT-DF Gasoline System Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kubota

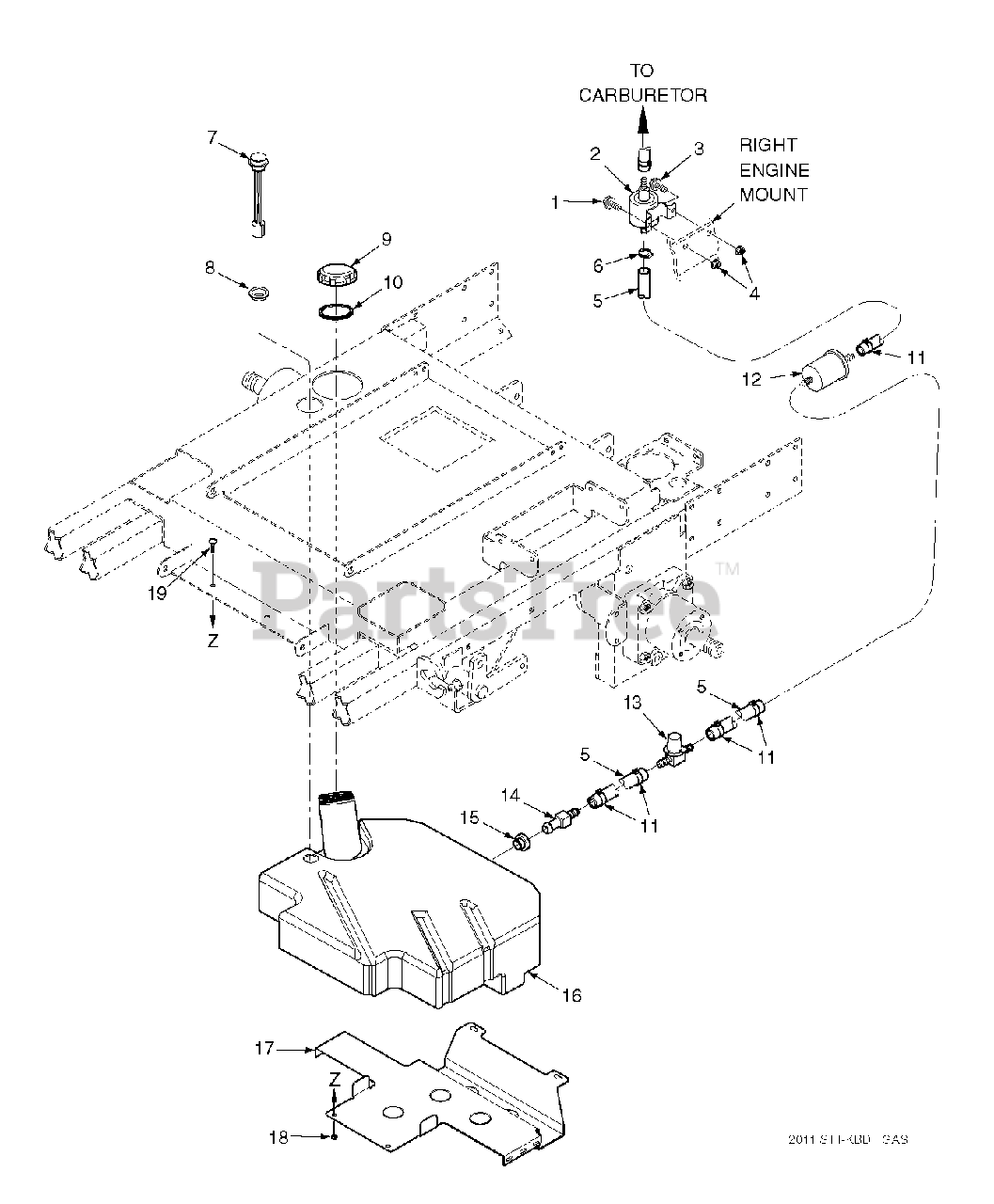

STT-DF Gasoline System Parts Diagram

  • Title

1

Scag 04001-01

Bolt, Hex Hd. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

2

Fuel Pump, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

3

Scag 04001-14

Bolt, Hex Hd. 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

4

Scag 04021-08

Nut, Hex, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Scag 483620

Fuel Hose, 5/16" ID. Non-Perm.

Note: Order by the inch.

$0.99

$

In Stock, Qty 20+

0

6

Scag 48136-13

Hose Clamp, 0.69" dia.

$7.49

$

In Stock, Qty 20+

0

7

Scag 484251

Fuel Gauge Assy.

Note: (Incl. item 8)

$93.99

$

Usually ships in 2-12 days

0

8

Scag 484252

Seal, Fuel Gauge

$

$

Currently unavailable

9

Scag 483792

Cap, Fuel Tank

$27.99

$

In Stock, only 4 left!

0

10

Scag 482774

Gasket, Fuel Cap

$3.99

$

In Stock, only 4 left!

0

11

Scag 48059-04

Clamp, 5/16" Fuel Hose

$0.99

$

Usually ships in 2-12 days

0

12

Fuel Filter, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

13

Scag 481308

Valve, Shutoff

$42.99

$

Usually ships in 2-12 days

0

14

Scag 483749

Hose Fitting

$12.99

$

In Stock, only 1 left!

0

15

Scag 482571

Bushing

$12.99

$

In Stock, Qty 20+

0

16

Scag 462306

Fuel Tank Assembly
(Superseded to 462303)

Note: (Incl. items 7, 14, 15)

$397.99

$

Usually ships in 2-12 days

0

17

Scag 424914

Support Bracket, Fuel Tank

$203.99

$

Usually ships in 2-12 days

0

18

Scag 04019-13

Nut, 5/16-18 Serr. Flng.

$

$

Currently unavailable

19

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0
