STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: F6200001 - F6299999) Sheet Metal Components Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kubota

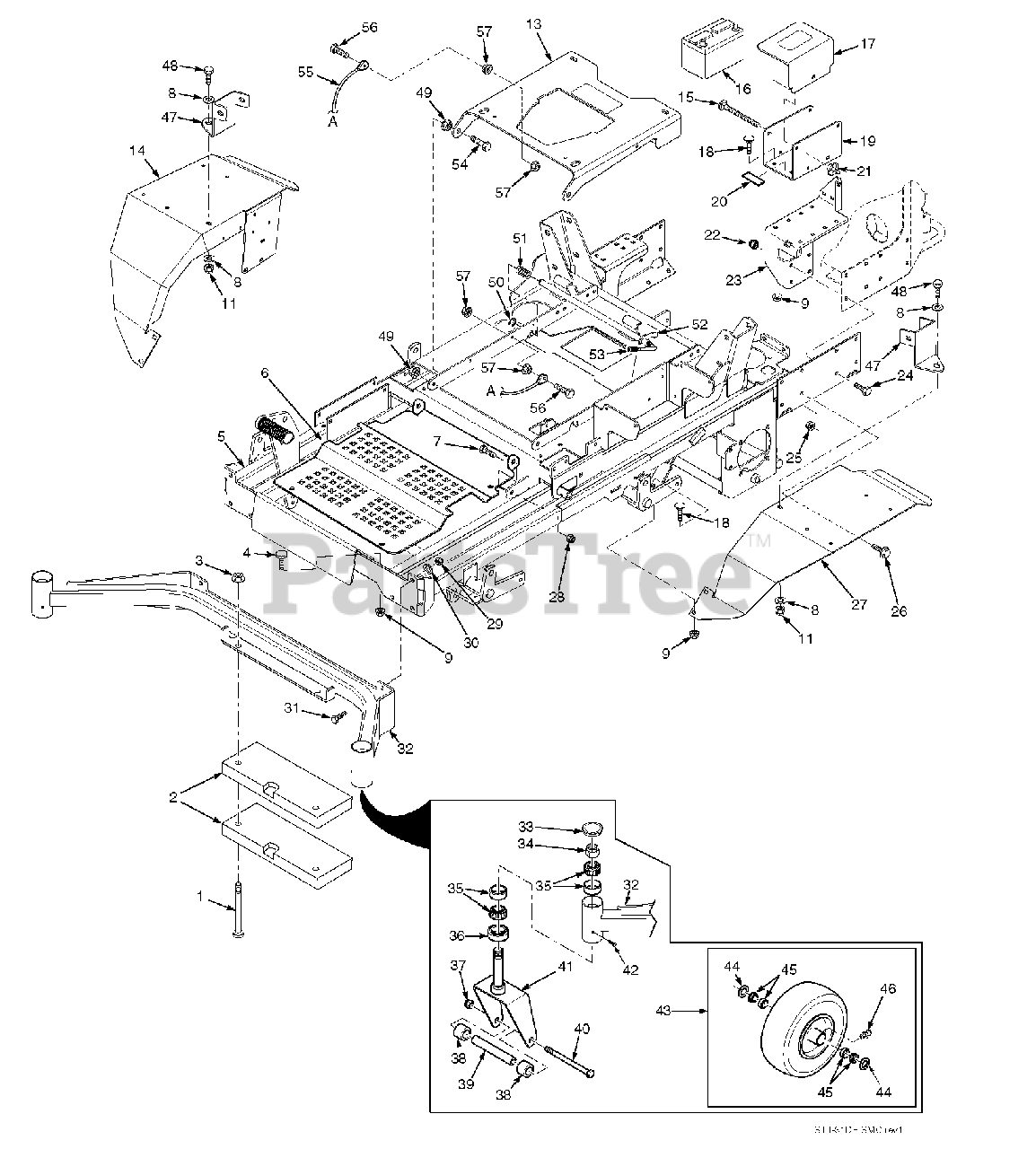

Sheet Metal Components Parts Diagram

  • Title

1

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3.5"

$2.49

$

In Stock, only 4 left!

0

2

Scag 41020

Weight

$141.99

$

Usually ships in 2-12 days

0

3

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

4

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

5

Scag 462330

Main Frame Assembly w/Decals

$2456.99

$

Usually ships in 2-12 days

0

6

Scag 424847

Foot Plate

$161.99

$

Usually ships in 2-12 days

0

7

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

8

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

9

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

11

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 43606

Spacer Bushing

$8.49

$

Usually ships in 2-12 days

0

13

Scag 491729

Seat Plate Weldment w/Decal

$

$

Currently unavailable

14

Scag 452026

Fender Weldment, RH

$190.99

$

Usually ships in 2-12 days

0

15

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

16

Battery

Note: (Not avail. through Scag)

$

$

Not available

17

Scag 422682

Cover, Battery

$35.99

$

In Stock, only 1 left!

0

18

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 462007

Plate, Battery Box

$69.99

$

Usually ships in 2-12 days

0

20

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

21

Scag 04029-01

Wing Nut, 1/4-20 x 3/4"

$2.49

$

In Stock, Qty 19

0

22

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 424488

Battery Box Mount

$53.99

$

Usually ships in 2-12 days

0

24

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

25

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

26

Scag 04017-27

Screw, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

27

Scag 452025

Fender Weldment, LH

$190.99

$

Usually ships in 2-12 days

0

28

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

30

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 8

0

31

Scag 04001-28

Bolt, Hex Head 7/16-14 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

32

Scag 452202

Extention Weldment, Caster

Note: (Use with 61" Deck)

$319.99

$

Usually ships in 2-12 days

0

33

Scag 484195

Cap, Grease

$2.99

$

In Stock, Qty 20+

0

34

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

35

Scag 481657

Bearing W/Race
(Superseded to 48668)

$24.99

$

In Stock, Qty 20+

0

36

Scag 481025

Seal, 2.00" OD. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

37

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

38

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

39

Scag 43583

Sleeve, Caster Wheel

Note: (61V)

$14.99

$

In Stock, Qty 20+

0

40

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

Note: (61V)

$7.49

$

In Stock, Qty 20+

0

41

Scag 451416

Yoke Weldment, Caster

Note: (61V )

$100.99

$

In Stock, Qty 20+

0

42

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

43

Scag 92785

Wheel Assembly

Note: (Inc. 44, 45, & 46)

$

$

Currently unavailable

44

Scag 482622

Seal

$9.99

$

In Stock, Qty 20+

0

45

Scag 482621

Bearing w/ Race

$21.99

$

In Stock, Qty 20+

0

46

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, only 2 left!

0

47

Scag 424999

Bracket, Fender Support

$

$

Currently unavailable

48

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

49

Scag 04019-05

Nut, 7/16-14 Serrated Flange

$0.99

$

In Stock, Qty 12

0

50

Scag 04050-01

Retaining Ring .625" Ext. "E"

$0.99

$

In Stock, Qty 20+

0

51

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

52

Scag 491731

Lever Assembly, Seat Release

$159.99

$

Usually ships in 2-12 days

0

53

Scag 484341

Grip, Seat Latch

$0.99

$

Usually ships in 2-12 days

0

54

Scag 04001-117

Bolt, Hex Head 7/16-14 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

55

Scag 48566

Cable, Seat Stop

$17.99

$

In Stock, only 1 left!

0

56

Scag 04001-02

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

57

Scag 04019-02

Nut, Hex Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0
