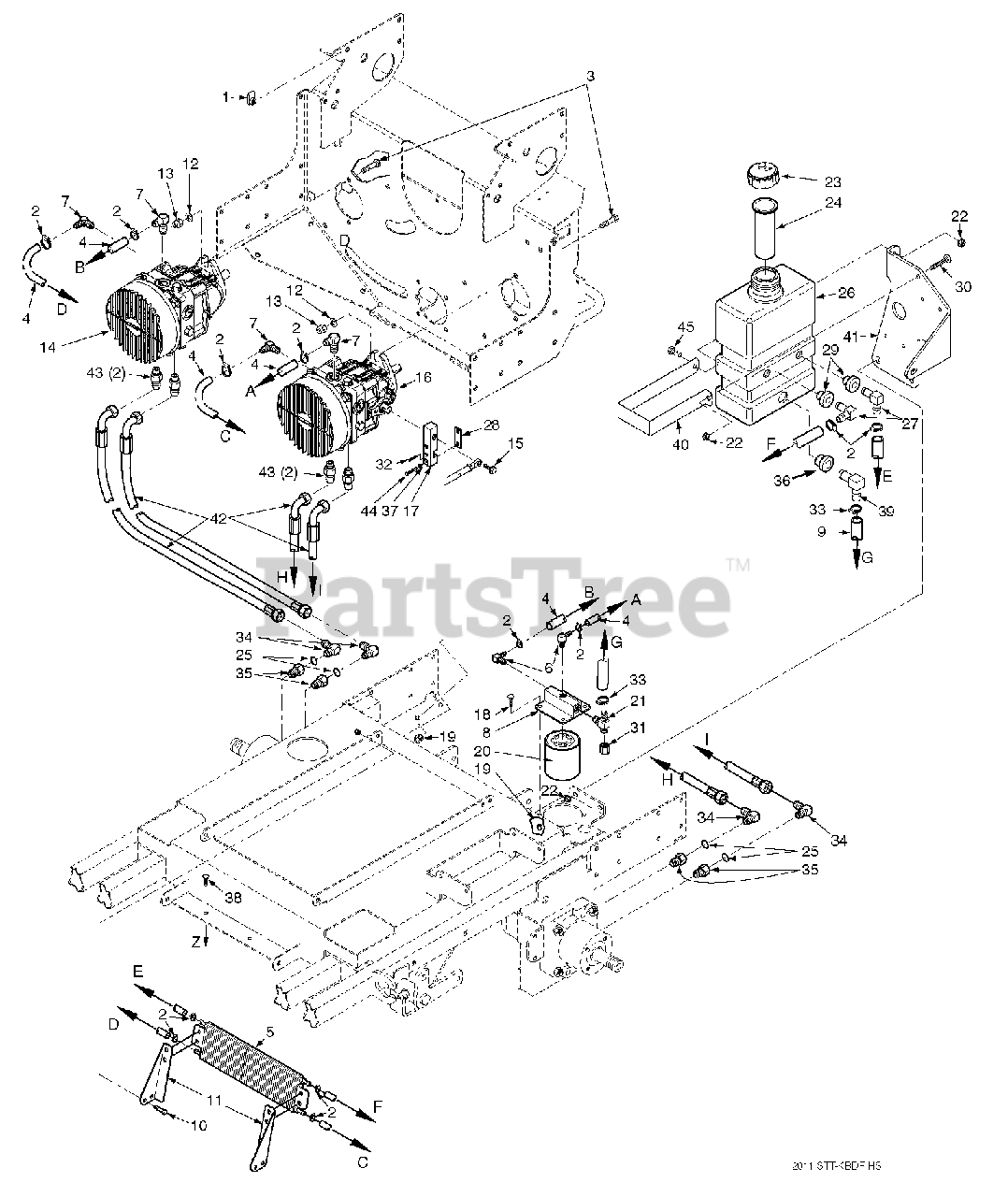

STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: F6200001 - F6299999) Hydraulic System - Kubota Dual Fuel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kubota

Hydraulic System - Kubota Dual Fuel Parts Diagram

  • Title

1

Scag 04110-01

U-Nut 1/4-20

$1.49

$

In Stock, Qty 18

0

2

Scag 48136-13

Hose Clamp, 0.69" Dia.

$7.49

$

In Stock, Qty 20+

0

3

Scag 04001-20

Bolt, Hex Hd. 3/8-16 x 1-1/2""

$0.99

$

In Stock, Qty 20+

0

4

Scag 48811

Hose, 3/8" ID Pushlock

$0.99

$

In Stock, Qty 20+

0

5

Scag 482505

Oil Cooler

$241.99

$

Usually ships in 2-12 days

0

6

Scag 481301-03

Elbow, 90 Deg. - 1/4" NPT x 3/8" Hose

$10.99

$

In Stock, only 2 left!

0

7

Scag 482266-01

Elbow, 90 Deg. - 9/16" O-ring x 3/8" Hose

$31.99

$

Usually ships in 2-12 days

0

8

Scag 482417

Oil Filter Base

$125.99

$

Usually ships in 2-12 days

0

9

Scag 482606

Hose Assy, 1/2" ID

Note: (Tank to Filter Base)

$25.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

Bolt, Hex Hd. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 424483

Mounting Bracket - LH, Oil Cooler

$30.99

$

Usually ships in 2-12 days

0

Scag 424484

Mounting Bracket - RH, Oil Cooler

$30.99

$

Usually ships in 2-12 days

0

12

Scag 04043-04

Flatwasher, 3/8" (.391 x .938 x .105") Grd. 8

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

14

Scag 483100

Pump, Right Hand, BDP 16A

$811.99

$

In Stock, only 1 left!

0

15

Scag 04001-32

Bolt, Hex Hd., 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 12

0

16

Scag 483101

Pump, Left Hand, BDP-16A

$811.99

$

Usually ships in 2-12 days

0

17

Scag 481793

Block, Pump Control

$55.99

$

Usually ships in 2-12 days

0

18

Scag 04001-09

Bolt, Hex Hd. 5/16-18 x 1.0" Zinc

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-03

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 48758

Oil Filter

$26.99

$

In Stock, Qty 17

0

21

Scag 482477

Tee, 3/4" O-Ring x JIC x 1/2" Hose

$28.99

$

Usually ships in 2-12 days

0

22

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

23

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

24

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

25

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

26

Scag 461451

Oil Reservoir Assy.

Note: (Incl. 24, 27, 29, 36, 39)

$205.99

$

In Stock, only 1 left!

0

27

Scag 482572

Elbow, 90 Deg. 0.38" Hose

$9.99

$

Usually ships in 2-12 days

0

28

Scag 422694

Clamp Plate, Pump Control

$13.99

$

In Stock, only 1 left!

0

29

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

30

Scag 04010-10

Screw, Phillips Head, 1/4-20 x 2"

$0.99

$

In Stock, Qty 12

0

31

Scag 48571-02

Cap

$5.99

$

Usually ships in 2-12 days

0

32

Scag 04060-09

Roll Pin, Spring 3/16 x 3/4"

$1.49

$

In Stock, only 3 left!

0

33

Scag 48136-05

Clamp, Hose

$3.99

$

In Stock, only 2 left!

0

34

Scag 48350-05

Elbow, 90 Deg., 5/8 x 1/2"

$32.99

$

Usually ships in 2-12 days

0

35

Scag 48938-02

Bushing, 7/8"-14 JIC x 3/4"-16 O-Ring

$14.99

$

Usually ships in 2-12 days

0

36

Scag 482573

Bushing, 0.78" Dia. Viton

$13.99

$

In Stock, only 2 left!

0

37

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

38

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 482574

Elbow, 90 Deg.

$18.99

$

In Stock, only 1 left!

0

40

Scag 423513

Strap, Hydraulic Tank

$14.99

$

In Stock, only 1 left!

0

41

Scag 424524

Support Bracket, Hydraulic Tank

$52.99

$

Usually ships in 2-12 days

0

42

Scag 483805

Hose Assembly, Pump
(Superseded to 484458)

$110.99

$

In Stock, only 1 left!

0

43

Scag 48572-06

Union, 5/8 x 1/2

$10.99

$

Usually ships in 2-12 days

0

44

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

45

Scag 04001-01

Bolt, Hex Head, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0
