STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: F6200001 - F6299999) Engine & Attaching Parts - Kubota Dual Fuel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kubota

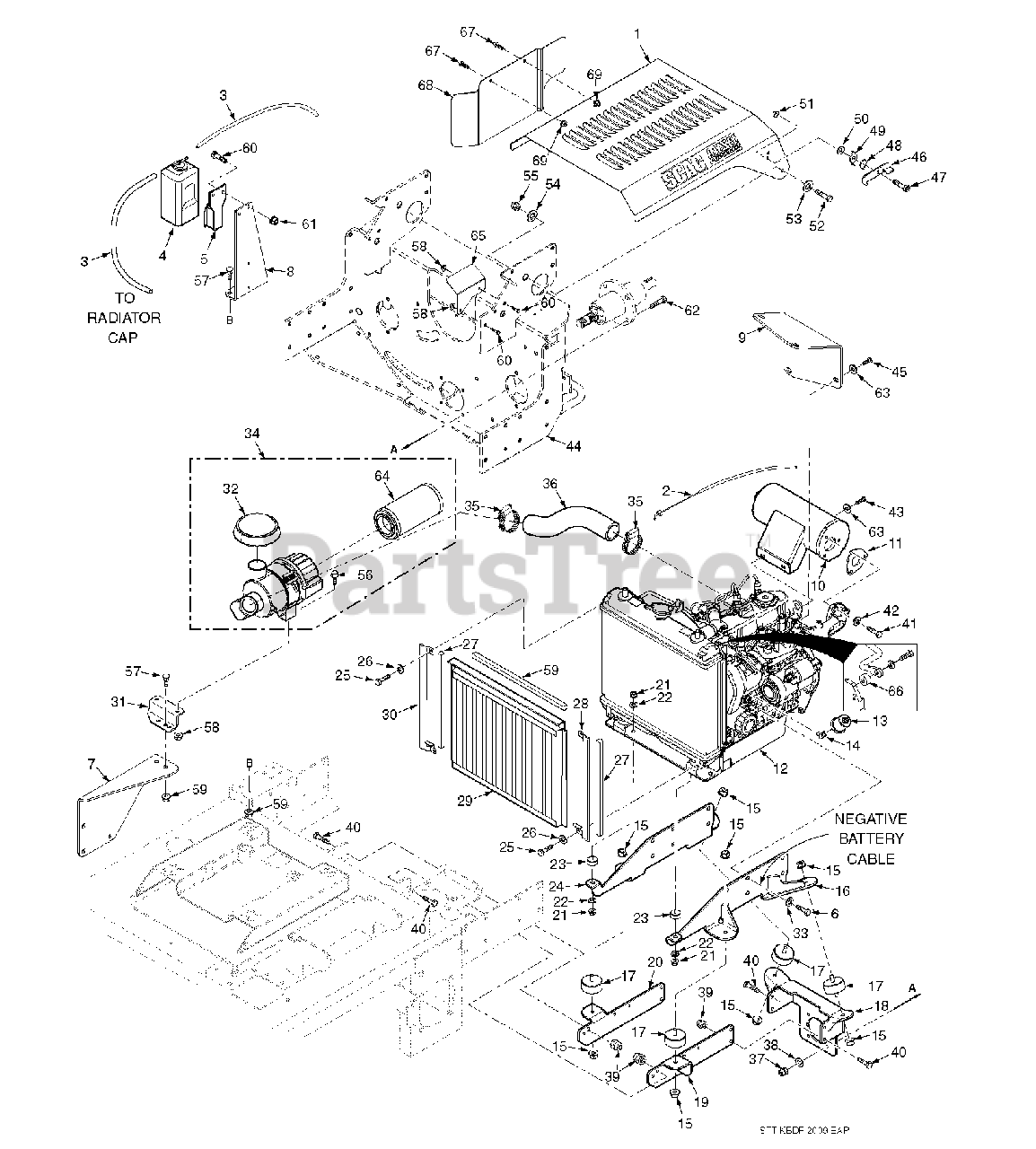

Engine & Attaching Parts - Kubota Dual Fuel Parts Diagram

  • Title

1

Scag 462008

Hood Assembly
(Superseded to 462518)

Note: (Incl. 46, 47, 48,49, 50, 51)

$301.99

$

Usually ships in 2-12 days

0

2

Scag 483356

Throttle Cable

$74.99

$

Usually ships in 2-12 days

0

3

Hose, Over Spill Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

4

Over Spill Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

5

Mounting Bracket, Over-Spill Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

6

Scag 04002-10

Bolt, Metric Hex Hd. M10-1.25 x 25mm

$0.99

$

Usually ships in 2-12 days

0

7

Scag 425003

Bracket, Kubota Air Cleaner

$

$

Currently unavailable

8

Scag 425005

Bracket, Kubota Coolant Overflow Bottle

$

$

Currently unavailable

9

Scag 425002

Bracket, Kubota Coil

$

$

Currently unavailable

10

Scag 483811

Muffler, Kubota

$486.99

$

Usually ships in 2-12 days

0

11

Scag 483387

Gasket, Muffler

$30.99

$

Usually ships in 2-12 days

0

12

Scag 483335

Engine, Kubota

Note: (Not avail. through Scag) Available through the individual engine manufacturer.

$

$

Currently unavailable

13

Scag 481811

Oil Pressure Sender

$247.99

$

Usually ships in 2-12 days

0

14

Scag 483433

Elbow, 45 Deg.

$5.99

$

Usually ships in 2-12 days

0

15

Scag 04019-04

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 451862

Mounting Bracket Weldment LH

$129.99

$

Usually ships in 2-12 days

0

17

Scag 483351

ISO Mount

$43.99

$

Usually ships in 2-12 days

0

18

Scag 424452

Plate, Rear Engine Mount

$96.99

$

Usually ships in 2-12 days

0

19

Scag 424448

Plate, Engine Mount LH

$66.99

$

Usually ships in 2-12 days

0

20

Scag 424449

Plate, Engine Mount RH

$66.99

$

Usually ships in 2-12 days

0

21

Scag 04025-02

Nut, Metric Hex M8-1.25mm

$1.49

$

Usually ships in 2-12 days

0

22

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

23

Rubber ISO Mount, Radiator

Note: Available through the individual engine manufacturer.

$

$

Not available

24

Scag 451863

Mounting Bracket Weldment RH

$129.99

$

Usually ships in 2-12 days

0

25

Scag 04106-01

Capscrew, Metric M6-1.0 x 16mm

$0.99

$

Usually ships in 2-12 days

0

26

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

27

Scag 483512

Foam, Radiator Screen

$6.49

$

Usually ships in 2-12 days

0

28

Scag 424624

Debris Screen Track LH

$74.99

$

Usually ships in 2-12 days

0

29

Scag 462035

Debris Screen Assembly
(Superseded to 462412)

Note: (Incl. 59)

$192.99

$

Usually ships in 2-12 days

0

30

Scag 424623

Debris Screen Track RH

$99.99

$

Usually ships in 2-12 days

0

31

Scag 424497

Bracket, Air Cleaner Mount

$30.99

$

Usually ships in 2-12 days

0

32

Scag 483635

Rain Cap

Note: (Enginaire p/n 68381)

$41.99

$

Usually ships in 2-12 days

0

33

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 8

0

34

Scag 483485-01

Air Filter Assembly

Note: (Enginaire p/n 68103)

$

$

Currently unavailable

35

Scag 48136-09

Clamp, 2-1/4" Max. Dia.

$17.99

$

Usually ships in 2-12 days

0

36

Scag 483793

Hose, Air Intake

$39.99

$

In Stock, only 1 left!

0

37

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grd. 8

$0.99

$

In Stock, Qty 20+

0

38

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-19

Bolt, Hex Hd. 3/8-16 x 1"

$0.99

$

In Stock, Qty 7

0

41

Scag 04002-01

Bolt, Metric Hex Hd. M8-1.25 x 30mm

$0.99

$

In Stock, only 4 left!

0

42

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

43

Scag 04002-03

Bolt, Metric Hex Hd. M8-1.25 x 25mm

$0.99

$

In Stock, only 1 left!

0

44

Scag 451861

Pump Mounting Plate Weldment

Note: (Kubota)

$695.99

$

Usually ships in 2-12 days

0

45

Scag 04002-03

Bolt, Metric Hex Hd. M8-1.25 x 25mm

$0.99

$

In Stock, only 1 left!

0

46

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

47

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2"

$4.49

$

In Stock, Qty 6

0

48

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

49

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

50

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105")

$0.99

$

In Stock, Qty 20+

0

51

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

52

Scag 04001-21

Bolt, Hex Hd. 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

53

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105")

$0.99

$

In Stock, Qty 20+

0

54

Scag 04041-11

Flatwasher, 3/8 (.406 x 1.50 x 7 Ga.)

$1.99

$

In Stock, Qty 5

0

55

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

56

Scag 04017-16

Bolt, Hex Hd. Serr. Flng. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

57

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

58

Scag 04019-03

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

59

Scag 483513

Foam, Radiator Screen Upper

$7.49

$

Usually ships in 2-12 days

0

60

Scag 04017-16

Bolt, Hex Hd. Serr. Flng. 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 10

0

61

Scag 04019-03

Nut, Serr. Flng. 5/16-18

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-176

Bolt, Hex Hd. 5/16-18 x 1-3/4" Grd. 8

$0.99

$

In Stock, Qty 20+

0

63

Scag 04040-04

Flatwasher, SAE 5/16 (.344 x .688 x .065")

$0.99

$

In Stock, Qty 20+

0

64

Scag 483637

Air Filter, Outer

Note: (Enginaire p/n 68300)

$71.99

$

In Stock, only 2 left!

0

65

Scag 425183

Shield, Battery

$

$

Currently unavailable

66

Scag 43714

Spacer, Radiator

$7.49

$

Usually ships in 2-12 days

0

67

Scag 04017-05

Bolt, Serr. Flng 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

68

Scag 425150

Heatshield, Air Cleaner STT-DF

$22.99

$

Usually ships in 2-12 days

0

69

Scag 04019-02

Nut, Serr. Flng 1/4-20

$0.99

$

In Stock, Qty 20+

0
