STT61V-31KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kubota (SN: F6200001 - F6299999) BDP-16A Hydraulic Pump Assembly With Cooling Fan Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kubota

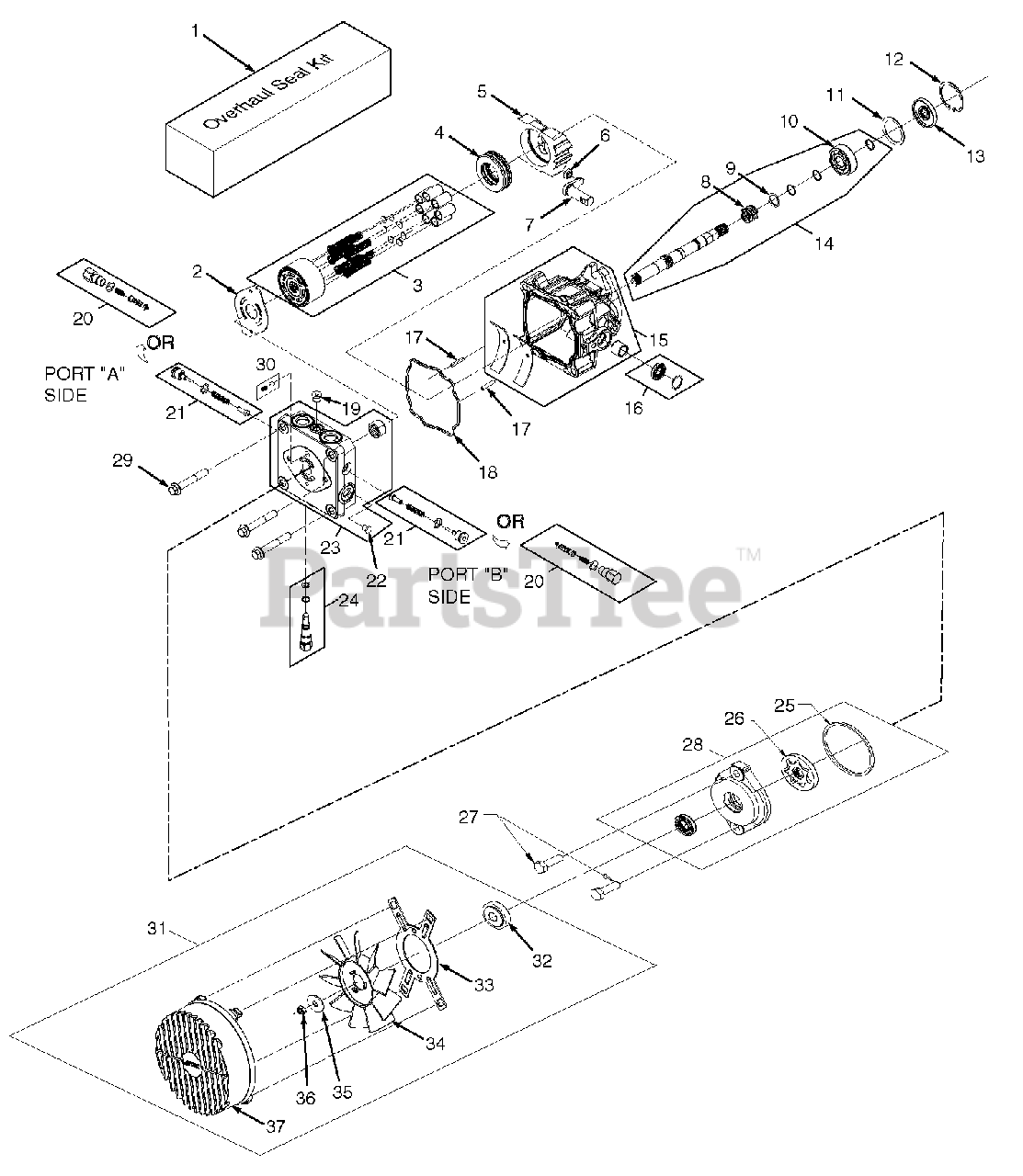

BDP-16A Hydraulic Pump Assembly With Cooling Fan Parts Diagram

  • Title

1

Scag HG70740

Overhaul Seal Kit

$75.99

$

Usually ships in 2-12 days

0

2

Scag HG51455

Valve Plate
(Superseded to HG52371)

$87.99

$

Usually ships in 2-12 days

0

3

Scag HG70735

Cylinder Block Kit - 16cc
(Superseded to HG72158)

$123.99

$

Usually ships in 2-12 days

0

4

Scag HG51462

Thrust Ball Bearing Assembly

$40.99

$

Usually ships in 2-12 days

0

5

Scag HG51436

Variable Swashplate

$

$

Not available

6

Scag HG2000015

Slot Guide

$7.49

$

Usually ships in 2-12 days

0

7

Scag HG2000014

Trunnion Arm

$

$

Not available

8

Scag HG2000025

Block Spring

$

$

Not available

9

Scag HG2000024

Block Thrust Washer

$

$

Not available

10

Scag HG2000032

Shaft Ball Bearing

$

$

Not available

11

Scag HG2000023

Spacer

$2.99

$

Usually ships in 2-12 days

0

12

Scag HG2000038

Retaining Ring

$4.49

$

Usually ships in 2-12 days

0

13

Scag HG51092

Seal

$19.99

$

Usually ships in 2-12 days

0

14

Scag HG70578

Kit, Pump Shaft

Note: (keyed thru taper)

$

$

Currently unavailable

15

Scag HG70738

Housing Kit

$

$

Not available

16

Scag HG70739

Trunnion Seal Kit

$10.99

$

Usually ships in 2-12 days

0

17

Scag HG50641

Pin

$

$

Not available

18

Scag HG51437

O-Ring
(Superseded to HG54021)

$17.99

$

In Stock, only 2 left!

0

19

Scag HG9005110-7500

Straight Thread Plug

$

$

Not available

20

Scag HG70743

Shock Valve Kit (.031 Orifice)

$109.99

$

Usually ships in 2-12 days

0

21

Scag HG70742

Shock Valve Kit (.024 Orifice)

$

$

Not available

22

Scag HG9005200-7500

Straight Thread Plug

$

$

Not available

23

Scag HG70736

End Cap Kit

$

$

Not available

24

Scag HG2513030

Bypass Valve Kit

$43.99

$

Usually ships in 2-12 days

0

25

Scag HG9004100-1430

O-Ring

$1.99

$

Usually ships in 2-12 days

0

26

Scag HG50406

Gerotor Assembly (.19 cu.in./rev.)

$74.99

$

Usually ships in 2-12 days

0

27

Scag HG50173

Socket Head Cap Screw (M8 x 1.25-25mm)

$

$

Not available

28

Scag HG70924

Charge Pump Kit (.19 STD. Splined)

$

$

Not available

29

Scag HG51457

Hex Screw, Flanged Head (M10 x 1.50-65mm)

$

$

Not available

30

Scag HG70402

Charge Relief Kit

$6.49

$

In Stock, only 1 left!

0

31

Scag HG71287

Fan Kit

Note: (Incl. items 32, 34, 35, 36)

$

$

Currently unavailable

32

Scag HG51348

Hub

$

$

Not available

33

Scag HG52016

Bracket, Shroud

$

$

Not available

34

Scag HG52014

Fan

$23.99

$

Usually ships in 2-12 days

0

35

Scag HG52256

Washer

$

$

Currently unavailable

36

Scag HG44809

Nut

$

$

Currently unavailable

37

Scag HG52059

Shroud

$40.99

$

Usually ships in 2-12 days

0
