STT61V-31EFI-SS - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kohler (SN: F6100001 - F6199999) Electrical System (31HP-EFI Kohler) Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kohler

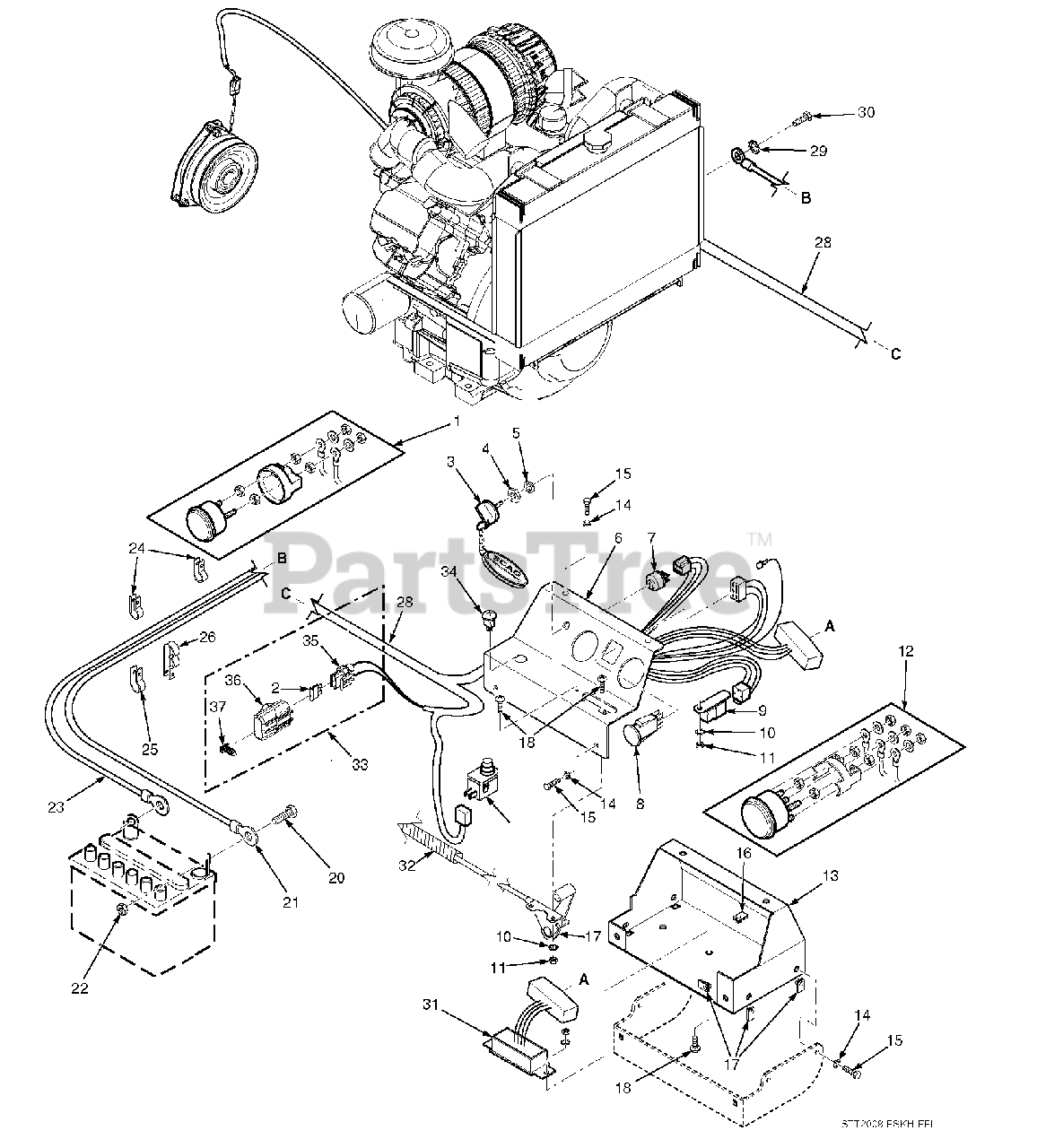

Electrical System (31HP-EFI Kohler) Parts Diagram

  • Title

1

Scag 481184

Volt Meter

$94.99

$

Usually ships in 2-12 days

0

2

Scag 48298

Fuse, 20 AMP

$3.99

$

Usually ships in 2-12 days

0

3

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

4

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

5

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

6

Scag 461916

Instrument Panel, Top w/Decals
(Superseded to 462336)

$89.99

$

Usually ships in 2-12 days

0

7

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

8

Scag 483957

Switch, PTO - 10 Amp
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

9

Scag 48788

Relay

$28.99

$

In Stock, Qty 9

0

10

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

11

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

12

Scag 481183

Water Temp. Gauge

$136.99

$

Usually ships in 2-12 days

0

13

Scag 451879

Base, Instrument Panel

$112.99

$

Usually ships in 2-12 days

0

14

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-01

Bolt, Hex Hd. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

17

Scag 481662

Throttle Controls

$35.99

$

In Stock, Qty 6

0

18

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

19

Scag 481638

Switch, Interlock-Seat

$15.99

$

In Stock, Qty 20+

0

20

Scag 04001-44

Bolt, Hex Hd. 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

21

Scag 48029-06

Cable, Battery - Red

$12.99

$

Usually ships in 2-12 days

0

22

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 20+

0

23

Scag 48029-11

Cable, Battery - Black

$14.99

$

In Stock, only 1 left!

0

24

Scag 48030-09

Clamp, Cable 1/2" I.D.

$1.49

$

In Stock, Qty 15

0

25

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

26

Scag 48030-11

Clamp, Cable

$2.49

$

Usually ships in 2-12 days

0

27

Scag 481670

Sending Unit, Water Temp.

$95.99

$

Usually ships in 2-12 days

0

28

Scag 483688

Wire Harness, STT Liquid-Cooled Electronic Fuel Injection

Note: (EFI)

$260.99

$

Usually ships in 2-12 days

0

29

Scag 04031-03

Lockwasher, 5/16" External Tooth

$0.99

$

Usually ships in 2-12 days

0

30

Scag 04002-12

Bolt, Hex Hd. M8-1.25 x 20mm

$0.99

$

In Stock, Qty 9

0

31

Scag 483599

Electronic Module

$133.99

$

In Stock, Qty 20+

0

32

Scag 481945-01

Heatshield, Flexible
(Superseded to 481945)

$0.99

$

Usually ships in 2-12 days

0

33

Scag 483641

Single Fuse Assembly, Sealed
(Superseded to 485739)

Note: (Incl. 2, 35, 36, & 37)

$33.99

$

Usually ships in 2-12 days

0

34

Scag 481182

Indicator Light, Check Engine

$47.99

$

Usually ships in 2-12 days

0

35

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

36

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

37

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0
