STT61V-31EFI-SS - Scag Turf Tiger 61" Zero-Turn Mower, 31hp Kohler (SN: D7900001 - D7999999) Engine & Attaching Parts - 31HP-EFI Kohler Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 31hp Kohler

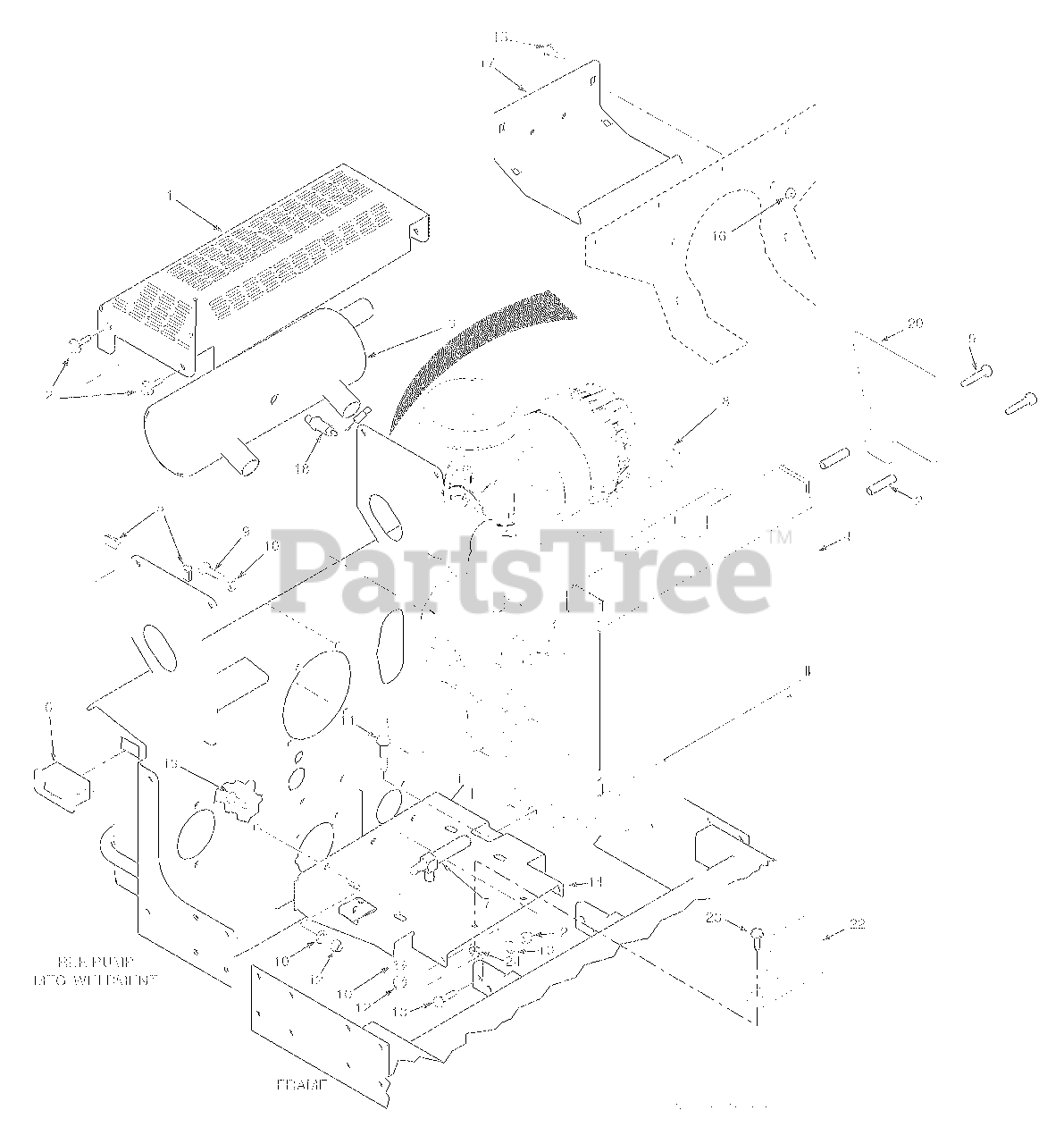

Engine & Attaching Parts - 31HP-EFI Kohler Parts Diagram

  • Title

1

Scag 424910

Muffler Guard

Note: (Kohler)

$135.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Muffler

Note: (Available only through Kohler)

$

$

Not available

4

Scag 451997

Screen Weldment, Radiator
(Superseded to 452289)

Note: (Kohler)

$158.99

$

Usually ships in 2-12 days

0

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

6

Scag 483355

Hour Meter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

7

Scag 482510

Oil Drain Extension

$36.99

$

Usually ships in 2-12 days

0

8

Scag 483687

Engine, Kohler 31HP-EFI Aegis

Note: (Available only through Kohler)

$

$

Currently unavailable

9

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

14

Scag 451454

Plate, Engine Mounting

$235.99

$

Usually ships in 2-12 days

0

15

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 424691

Rear Cover

$57.99

$

Usually ships in 2-12 days

0

18

o2 Sensor

Note: (Available through Kohler Only)

$

$

Not available

19

Scag 04002-23

Bolt, Hex Head M6-1.0 X 90mm

$0.99

$

Usually ships in 2-12 days

0

20

Scag 424888

Mounting Bracket, ECU Kohler EFI

$38.99

$

Usually ships in 2-12 days

0

21

Scag 43774

Spacer, ECU Mounting

$18.99

$

Usually ships in 2-12 days

0

22

Scag 424889

Mounting Bracket, Fuel Pump Kohler EFI

$25.99

$

Usually ships in 2-12 days

0

23

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0
