STT61V-29KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 29hp Kubota (SN: E5800001 - E5899999) STT Roll-Over Protection System - With Suspension Seat Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 29hp Kubota

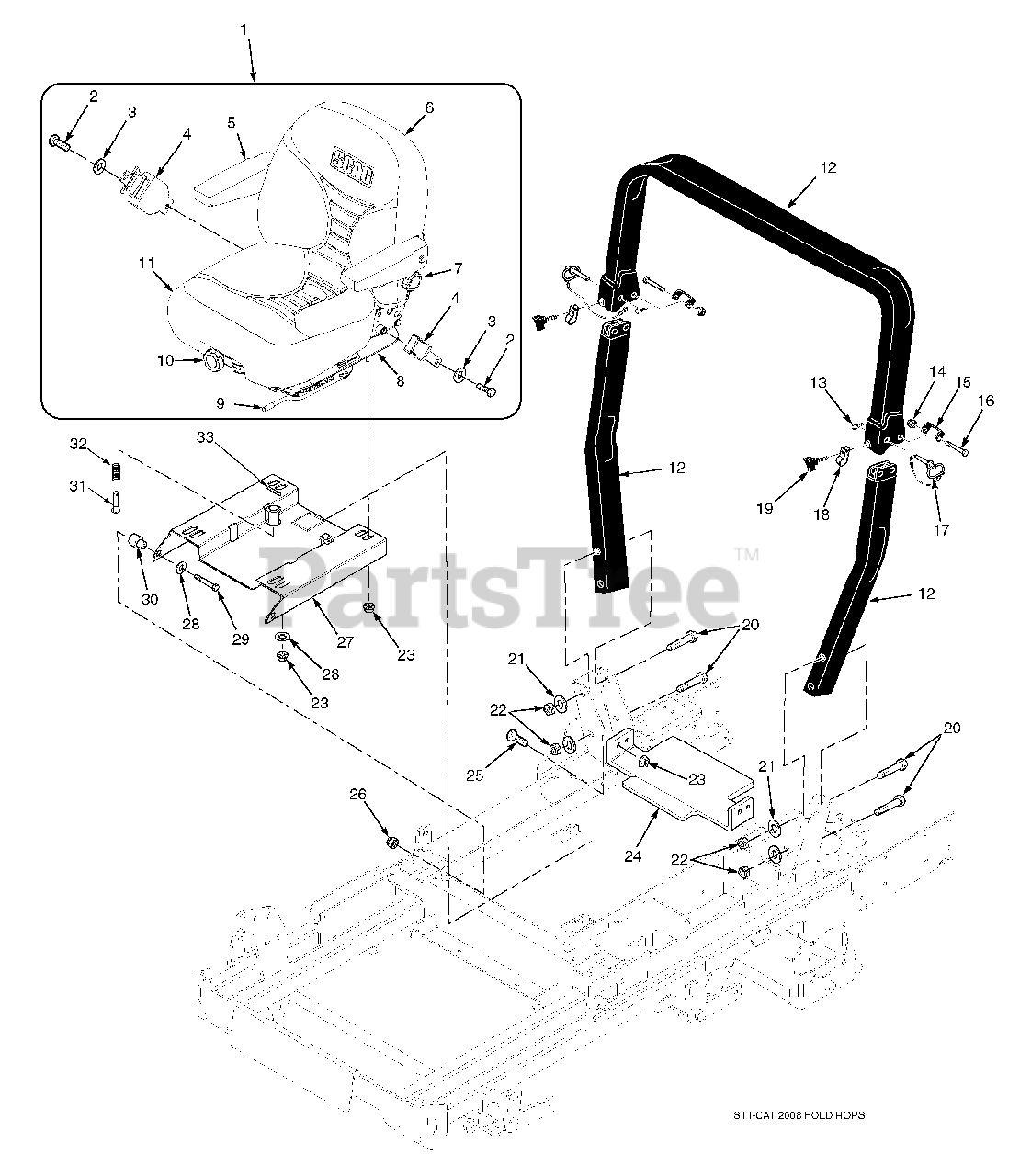

STT Roll-Over Protection System - With Suspension Seat Parts Diagram

  • Title

1

Scag 9292

Suspension Seat Assembly w/seat belt

$1057.99

$

Usually ships in 2-12 days

0

2

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

3

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

0

4

Scag 483594

Retractable Seat Belt

$200.99

$

Usually ships in 2-12 days

0

5

Scag 482950

Armrest Only

$48.99

$

Usually ships in 2-12 days

0

Scag 482945

Armrest Assembly Kit, LH

$264.99

$

Usually ships in 2-12 days

0

Scag 482946

Armrest Assembly Kit, RH

$285.99

$

In Stock, only 1 left!

0

6

Scag 482940

Back Cushion Kit

$379.99

$

Usually ships in 2-12 days

0

7

Scag 482943

Lumbar Kit

$202.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

8

Scag 482942

Shock Absorber Kit

$181.99

$

Usually ships in 2-12 days

0

9

Scag 482952

Seat Adjustment, Track Set

$233.99

$

Usually ships in 2-12 days

0

10

Scag 482944

Weight Adjustment Kit

$207.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

11

Scag 482941

Seat Cushion Kit Seat Drain Kit

Note: (Included with Seat Cushion)

$385.99

$

Usually ships in 2-12 days

0

12

Scag 9514

STT, ROPS Accessory

Note: (incl. items 13 thru 22)

$407.99

$

Usually ships in 2-12 days

0

13

Scag 04062-06

Hair Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

14

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

15

Scag 424407

Bracket, Stop

$32.99

$

In Stock, only 1 left!

0

16

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

17

Scag 483262

Pin
(Superseded to 484168)

$27.99

$

In Stock, only 4 left!

0

18

Scag 483265

Clamp
(Superseded to 48030-19)

$1.99

$

Usually ships in 2-12 days

0

19

Scag 481625-03

Thumb Screw, 5/16-18 NC x 3/4"
(Superseded to 483301)

$7.99

$

Usually ships in 2-12 days

0

20

Scag 04001-82

Bolt, Hex Head 1/2-13 x 4-1/2"

$6.49

$

In Stock, Qty 7

0

21

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

23

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 461968

Bracket, Seat Hold Down with Decal

$107.99

$

Usually ships in 2-12 days

0

25

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 462147

Seat Plate Weldment w/Decal

$68.99

$

Usually ships in 2-12 days

0

28

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

30

Scag 43606

Spacer Bushing

$7.99

$

Usually ships in 2-12 days

0

31

Scag 43477

Pin Retainer, Spring

$18.99

$

In Stock, only 2 left!

0

32

Scag 481389

Spring, Seat

$3.49

$

In Stock, only 4 left!

0

33

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0
