STT61V-29KB-DF - Scag Turf Tiger 61" Zero-Turn Mower, 29hp Kubota (SN: E5800001 - E5899999) LP System - Kubota Dual Fuel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 29hp Kubota

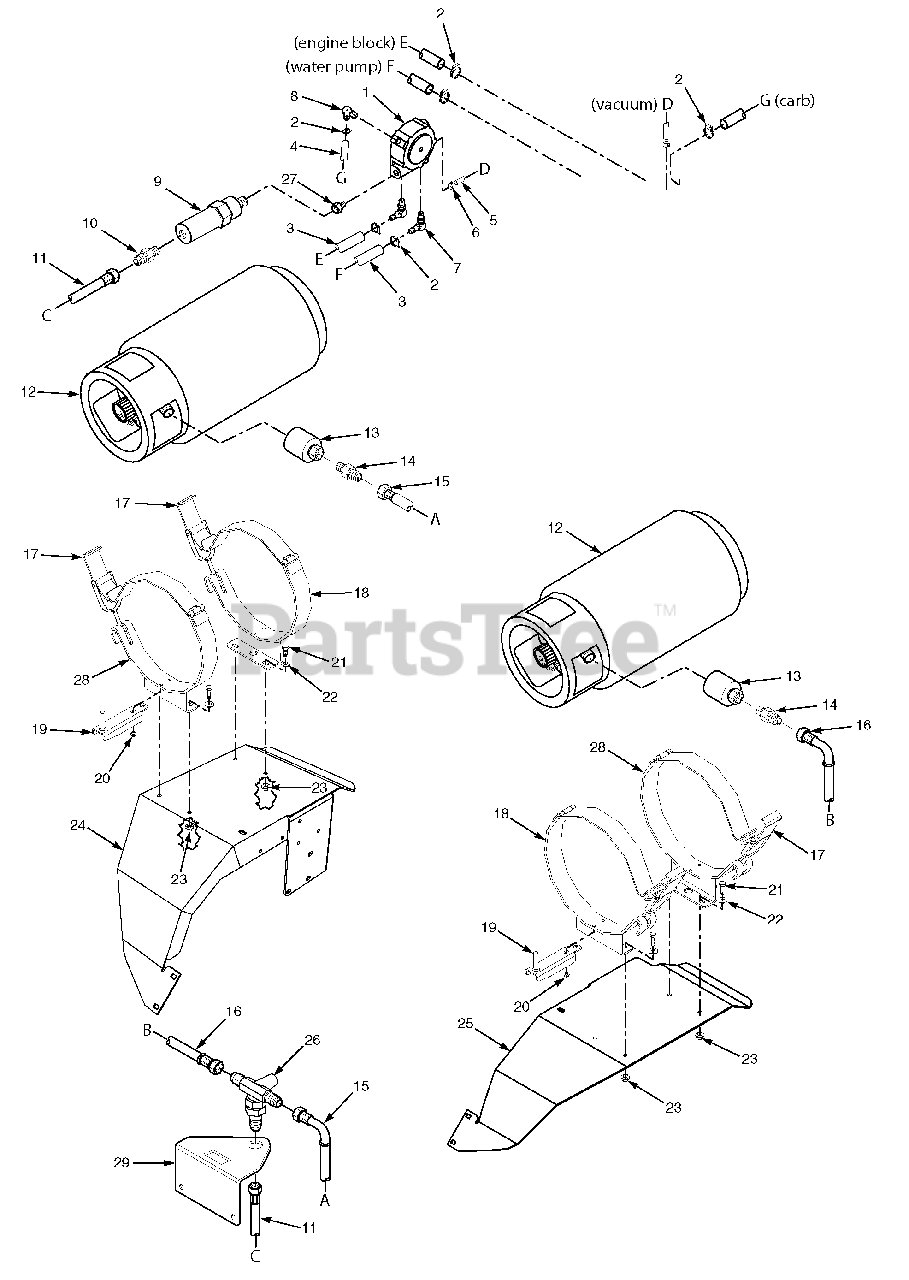

LP System - Kubota Dual Fuel Parts Diagram

  • Title

1

Regulator, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

2

Scag 48136-05

Clamp, 0.87 Max. Dia.

$3.99

$

In Stock, only 2 left!

0

3

Scag 483892

Hose, 3/8" ID 300 PSI
(Superseded to 483945)

Note: (order by inch)

$

$

Not available

4

Scag 483891

Hose, LP

$

$

Currently unavailable

5

Scag 481179

Hose, Vacuum Line

Note: (order by inch)

$0.99

$

Usually ships in 2-12 days

0

6

Scag 48059-03

Clamp, 3/16" Hose ID

$

$

Not available

7

Fitting, 90 Degree - Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

8

Fitting, 90 Degree - Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

9

Scag 483915

Lockoff Valve LP, Electric

$906.99

$

Usually ships in 2-12 days

0

10

Scag 483889

Fitting, Union 3/8" Flare x 1/4" Pipe

$

$

Currently unavailable

11

Scag 483886

LP Fuel Line, 45-1/2" (to Regulator)

$91.99

$

Usually ships in 2-12 days

0

12

Scag 483899

LP Fuel Tank

$1019.99

$

Usually ships in 2-12 days

0

13

Scag 483888

LP Quick Coupler

$40.99

$

In Stock, Qty 7

0

14

Scag 483889

Fitting, Union 3/8" Flare x 1/4" Pipe

$

$

Currently unavailable

15

Scag 483887

LP Fuel Line, 26-1/2" (RH Tank)

$114.99

$

Usually ships in 2-12 days

0

16

Scag 483885

LP Fuel Line, 52" (LH Tank)

$88.99

$

Usually ships in 2-12 days

0

17

Scag 483911

LP Tank Lock Bracket

$26.99

$

In Stock, only 4 left!

0

18

Scag 483909

Front LP Tank Mounting Bracket
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

19

Scag 483912

LP Tank Locating Bracket

$77.99

$

Usually ships in 2-12 days

0

20

Bolt,

$

$

Not available

21

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

22

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 452026

Fender Weldment, RH

$186.99

$

Usually ships in 2-12 days

0

25

Scag 452025

Fender Weldment, LH

$186.99

$

Usually ships in 2-12 days

0

26

Scag 483890

T-Connector, w/check valves

$210.99

$

Usually ships in 2-12 days

0

27

Fitting, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

28

Scag 483910

Rear LP Tank Mounting Bracket
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

29

Scag 452004

Mounting Bracket, Tee Fitting and Selector Switch

$113.99

$

Usually ships in 2-12 days

0
