STT61V-28CAT-SS - Scag Turf Tiger 61" Zero-Turn Mower, 28hp CAT Diesel (SN: E2000001 - E2099999) Engine & Attaching Parts - (28HP Cat Diesel) Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 28hp CAT Diesel

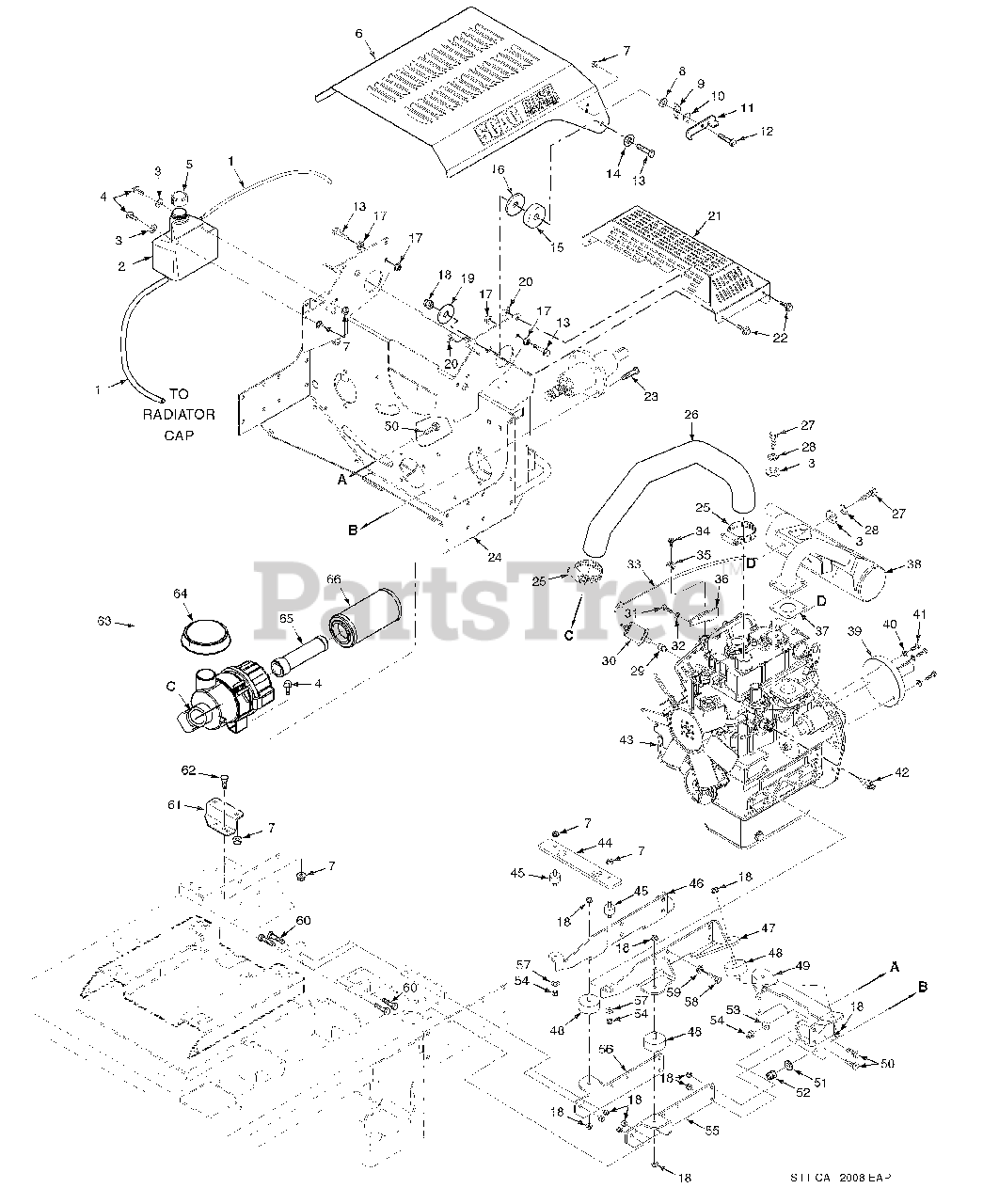

Engine & Attaching Parts - (28HP Cat Diesel) Parts Diagram

  • Title

1

Hose, Coolant Resrvoir Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

2

Coolant Reservoir Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

3

Scag 04040-04

Flatwasher, SAE 5/16-.344 x .688 x .065

$0.99

$

In Stock, Qty 20+

0

4

Scag 04017-16

Bolt, Hex Head Serr. Flng 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 10

0

5

Cap, Coolant Reservoir Bottle

Note: Available through the individual engine manufacturer.

$

$

Not available

6

Scag 462116

Hood Assembly w/Decals
(Superseded to 462518)

Note: (incl. 8, 9, 10, 11, 12, and 13)

$294.99

$

Usually ships in 2-12 days

0

7

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

8

Scag 04040-05

Flatwasher, 3/8-.406 x .812 x .065

$0.99

$

In Stock, only 4 left!

0

9

Scag 424634

Lock, Hood Latch

$11.99

$

In Stock, only 2 left!

0

10

Scag 483507

Spring, Hood Latch

$6.49

$

In Stock, only 1 left!

0

11

Scag 424633

Latch, Hood

$12.99

$

In Stock, only 4 left!

0

12

Scag 04009-07

Bolt, Shoulder 5/16-18 x 1/2”

$4.49

$

In Stock, Qty 6

0

13

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4”

$0.99

$

In Stock, Qty 20+

0

14

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

15

Scag 43740

Spacer, Hood

$28.99

$

Usually ships in 2-12 days

0

16

Scag 483471

Disc, Anti Friction

$7.99

$

Usually ships in 2-12 days

0

17

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04041-11

Flatwasher, 3/8-.406 x 1.50 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

20

Scag 04110-01

U-Nut, 1/4”-20

$1.49

$

In Stock, Qty 18

0

21

Scag 424910

Muffer Guard

$135.99

$

Usually ships in 2-12 days

0

22

Scag 04017-05

Bolt, Hex Head Serrated Flange, 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 20+

0

23

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4” Grd 8

$0.99

$

In Stock, Qty 20+

0

24

Scag 452005

Pump Mounting Plate Weldment

Note: (Cat Engine)

$465.99

$

In Stock, only 1 left!

0

25

Scag 48136-09

Clamp, 2-1/4” Max. Dia.

$16.99

$

Usually ships in 2-12 days

0

26

Scag 483713

Hose, Air Intake

$134.99

$

Usually ships in 2-12 days

0

27

Scag 04002-12

Bolt, Hex Head M8-1.25 x 20

$0.99

$

In Stock, Qty 9

0

28

Scag 04030-03

Lockwasher, 5/16” Spring

$0.99

$

In Stock, Qty 20+

0

29

Scag 483433

Elbow, 45 Degree

$5.99

$

Usually ships in 2-12 days

0

30

Scag 481811

Oil Pressure Sender

$241.99

$

Usually ships in 2-12 days

0

31

Scag 04002-21

Bolt, Hex Head M6-1.0 x 16

$

$

Currently unavailable

32

Scag 04030-02

Lockwasher, 1/4” Spring

$0.99

$

In Stock, Qty 20+

0

33

Scag 483746

Throttle Cable

$36.99

$

Usually ships in 2-12 days

0

34

Scag 04011-06

Screw, Self Tapping

$0.99

$

Usually ships in 2-12 days

0

35

Scag 424580

Clamp

$5.99

$

Usually ships in 2-12 days

0

36

Scag 424921

Mounting Bracket, Throttle Cable

$

$

Not available

37

Scag 483696

Muffer, Cat Diesel
(Superseded to 483841)

Note: Available through the individual engine manufacturer.

$

$

Not available

38

Gasket, Muffer

Note: Available through the individual engine manufacturer.

$

$

Not available

39

Scag 43772

Stub Shaft

Note: (Cat)

$171.99

$

Usually ships in 2-12 days

0

40

Scag 04030-05

Lockwasher, 7/16” Spring

$0.99

$

In Stock, Qty 20+

0

41

Scag 04002-26

Bolt, Hex Head M10 x 1.5 x 35

$1.49

$

Usually ships in 2-12 days

0

42

Scag 483360

Temperature Sensor, Engine Coolant

$31.99

$

Usually ships in 2-12 days

0

43

Engine, Cat Diesel 28HP

Note: (Available only through Cat Dealers) Available through the individual engine manufacturer.

$

$

Not available

44

Scag 424924

Mount, Radiator

$28.99

$

Usually ships in 2-12 days

0

45

Scag 483756

Mount, Radiator Isolation

$30.99

$

In Stock, only 1 left!

0

46

Scag 424907

Mounting Bracket Weldment RH

$67.99

$

Usually ships in 2-12 days

0

47

Scag 424906

Mounting Bracket Weldment LH

$67.99

$

Usually ships in 2-12 days

0

48

Scag 483351

Mount, Engine Isolation

$42.99

$

Usually ships in 2-12 days

0

49

Scag 424452

Plate, Rear Engine Mount

$

$

Not available

50

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1”

$0.99

$

In Stock, Qty 20+

0

51

Scag 04040-15

Flatwasher, 5/16”

Note: (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

52

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

53

Scag 04030-04

Lockwasher, 3/8” Spring

$0.99

$

In Stock, Qty 20+

0

54

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

55

Scag 424449

Plate, Engine Mount LH

$64.99

$

Usually ships in 2-12 days

0

56

Scag 424448

Plate, Engine Mount RH

$64.99

$

Usually ships in 2-12 days

0

57

Scag 04041-11

Flatwasher, 3/8”

Note: (.406 x 1.50 x 7 ga)

$1.99

$

In Stock, Qty 20+

0

58

Scag 04002-24

Bolt, Hex Head M12-1.25 X 25mm

$1.99

$

Usually ships in 2-12 days

0

59

Scag 04030-06

Lockwasher, 1/2” Spring

$0.99

$

In Stock, only 2 left!

0

60

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1”

$0.99

$

In Stock, Qty 20+

0

61

Scag 424497

Bracket, Air Cleaner Mount

$30.99

$

Usually ships in 2-12 days

0

62

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 20+

0

63

Scag 483485

Air Filter Assembly
(Superseded to 485322)

Note: (Enginaire p/n 68665)

$277.99

$

In Stock, only 1 left!

0

64

Scag 483635

Rain Cap

Note: (Enginaire p/n 68381)

$40.99

$

Usually ships in 2-12 days

0

65

Scag 483636

Air Filter, Inner

Note: (Enginaire p/n 68300)

$41.99

$

In Stock, Qty 14

0

66

Scag 483637

Air Filter, Outer

Note: (Enginaire p/n 68340)

$69.99

$

In Stock, Qty 6

0
