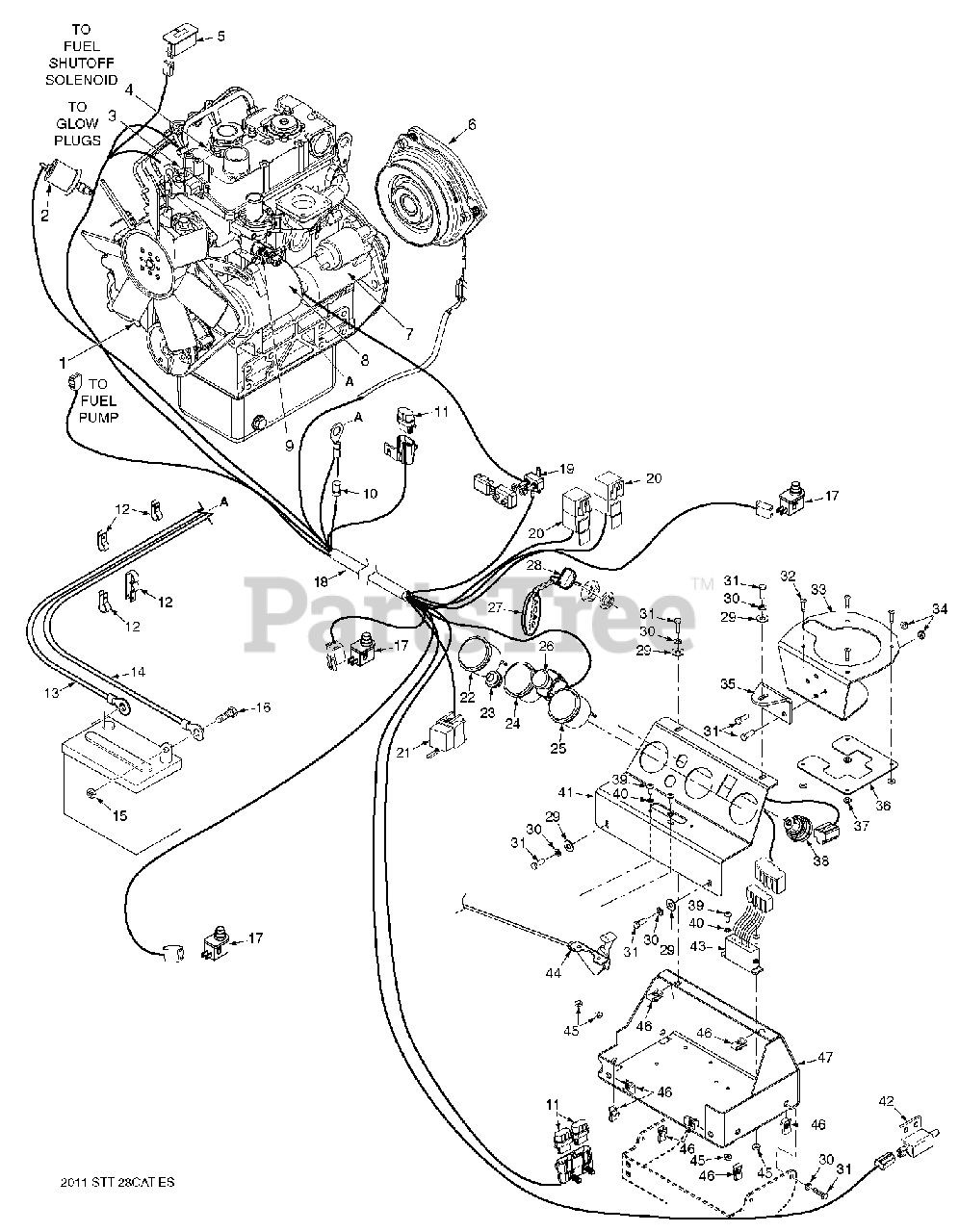

STT61V-28CAT - Scag Turf Tiger 61" Zero-Turn Mower, 28hp CAT Diesel (SN: G5000001 - G5099999) Electrical System - Cat Diesel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 28hp CAT Diesel

Electrical System - Cat Diesel Parts Diagram

  • Title

1

Fuel Pump

Note: Available through the individual engine manufacturer.

$

$

Not available

2

Scag 481811

Oil Pressure Sender

$241.99

$

Usually ships in 2-12 days

0

3

Glow Plugs

Note: Available through the individual engine manufacturer.

$

$

Not available

4

Fuel Shutoff Solenoid

Note: Available through the individual engine manufacturer.

$

$

Not available

5

Scag 483537

Hourmeter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

6

Scag 462011

Clutch, Ogura GT 3.5 - 1.125 Bore

$476.99

$

Usually ships in 2-12 days

0

7

Starting Motor

Note: Available through the individual engine manufacturer.

$

$

Not available

8

Scag 483809

Alternator

$1863.99

$

Usually ships in 2-12 days

0

Scag 483767

Alternator Belt

Note: (not shown)

$56.99

$

Usually ships in 2-12 days

0

9

Scag 483360

Sending Unit, Water Temp.

$31.99

$

Usually ships in 2-12 days

0

10

Scag 482253

Diode

$7.99

$

Usually ships in 2-12 days

0

11

Scag 48298

Fuse, 20 AMP

$3.99

$

Usually ships in 2-12 days

0

12

Scag 48030-09

Clamp, Cable 1/2" ID.

$1.49

$

In Stock, Qty 5

0

Scag 48030-10

Clamp, Cable 3/4" ID.

$0.99

$

Usually ships in 2-12 days

0

Scag 48030-11

Clamp, Double Cable 5/8" ID.

$2.49

$

Usually ships in 2-12 days

0

13

Scag 481176-10

Cable, Battery - Red

$22.99

$

Usually ships in 2-12 days

0

14

Scag 481176-11

Cable, Battery - Black

$43.99

$

Usually ships in 2-12 days

0

15

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5"

$0.99

$

In Stock, Qty 6

0

Battery,

Note: (Not Available Through Scag)

$

$

Not available

17

Scag 481638

Switch, Interlock, Normally Open

$15.99

$

In Stock, Qty 20+

0

18

Scag 483759

Main Wire Harness, STT Cat
(Superseded to 484659)

$992.99

$

Usually ships in 2-12 days

0

19

Scag 482784

Circuit Breaker, 50 AMP
(Superseded to 486588)

$21.99

$

Usually ships in 2-12 days

0

Scag 482785

Cover, Circuit Breaker

$4.99

$

Usually ships in 2-12 days

0

20

Scag 481826

Relay, 12V 40 AMP Hi Capacity

$58.99

$

Usually ships in 2-12 days

0

21

Scag 483013

Relay, 12V 40 AMP Standard

$20.99

$

In Stock, Qty 20+

0

22

Scag 481184

Volt Meter

Note: (Includes Mounting Hardware)

$94.99

$

Usually ships in 2-12 days

0

23

Scag 481182

Indicator Light, Glow Plugs

Note: (Includes Mounting Hardware)

$47.99

$

Usually ships in 2-12 days

0

24

Scag 481805

Engine Oil Pressure Gauge

Note: (Includes Mounting Hardware)

$122.99

$

Usually ships in 2-12 days

0

25

Scag 481183

Water Temperature Gauge

Note: (Includes Mounting Hardware)

$136.99

$

Usually ships in 2-12 days

0

26

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

27

Scag 462138

Key Assembly w/Fob

$40.99

$

Usually ships in 2-12 days

0

28

Scag 483771

Key, Ignition
(Superseded to 462138)

$40.99

$

Usually ships in 2-12 days

0

29

Scag 04040-14

Flat Washser, 1/4"

$0.99

$

In Stock, only 4 left!

0

30

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

31

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

32

Scag 04090-02

Pop Rivet, 3/16" x 5/8"

$0.99

$

In Stock, only 3 left!

0

33

Scag 9240

Cupholder

$

$

Not available

34

Scag 04021-08

Nut, Elastic Stop 1/4"-20

$0.99

$

In Stock, Qty 9

0

35

Scag 423674

Bracket, Cupholder Mounting

$9.49

$

Usually ships in 2-12 days

0

36

Scag 482544

Retainer, Cupholder

$

$

Currently unavailable

37

Scag 04041-19

Flatwasher, 0.196 ID.

$0.99

$

In Stock, Qty 5

0

38

Scag 483758

Key Switch

Note: (Includes Mounting Hardware)

$44.99

$

Usually ships in 2-12 days

0

39

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

41

Scag 462146

Instrument Panel, Top w/Decals
(Superseded to 462337)

$60.99

$

Usually ships in 2-12 days

0

42

Scag 481637

Switch, Interlock, Park Brake Normally Open

$9.99

$

In Stock, Qty 20+

0

43

Scag 484054

Electronic Control Module

$134.99

$

Usually ships in 2-12 days

0

44

Scag 483746

Throttle Control

$36.99

$

Usually ships in 2-12 days

0

45

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

46

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

47

Scag 451879

Base, Instrument Panel

$112.99

$

Usually ships in 2-12 days
