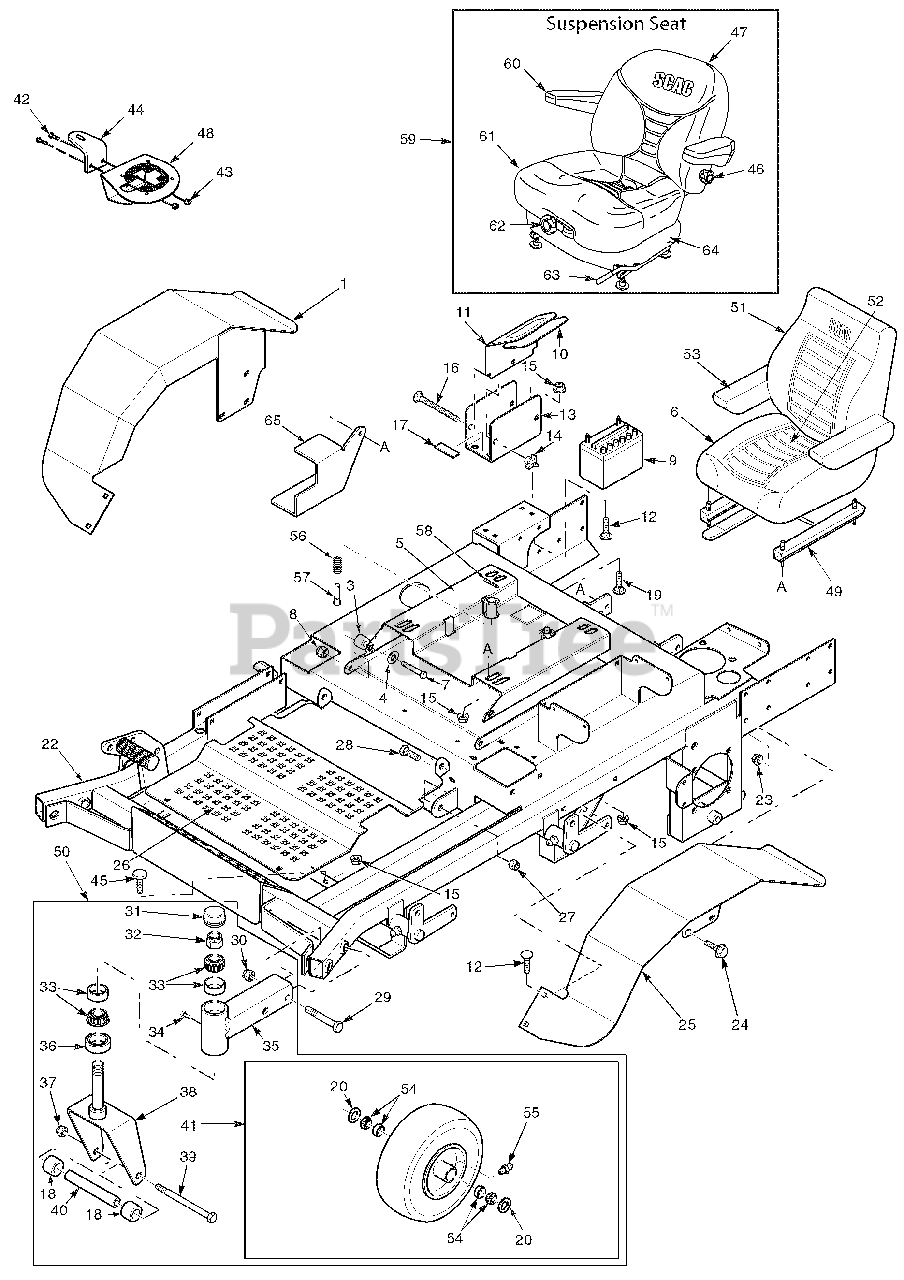

STT61V-27KA - Scag Turf Tiger 61" Zero-Turn Mower, 27hp Kawasaki (SN: D7600001 - D7699999) Sheet Metal Components Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 27hp Kawasaki

Sheet Metal Components Parts Diagram

  • Title

1

Scag 451481

Fender Weldment, RH

$266.99

$

Usually ships in 2-12 days

0

2

Scag 04001-09

Bolt, Hex Head, 5/16-18 x 1, Zinc

$0.99

$

In Stock, Qty 20+

0

3

Scag 43606

Spacer

$7.99

$

Usually ships in 2-12 days

0

4

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

5

Scag 461967

Seat Plate Weldment

$133.99

$

Usually ships in 2-12 days

0

6

Scag 483384

Seat Assembly w/armrest and seat belt

$995.99

$

Usually ships in 2-12 days

0

7

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

8

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Battery

Note: (not avail. through Scag)

$

$

Not available

10

Scag 48903

Pad, Battery Cover

$12.99

$

Usually ships in 2-12 days

0

11

Scag 421274

Cover, Battery

$41.99

$

Usually ships in 2-12 days

0

12

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 423308

Plate, Battery Box

$52.99

$

In Stock, only 1 left!

0

14

Scag 04029-01

Wing Nut, 1/4-20 x 3/4"

$2.49

$

In Stock, Qty 19

0

15

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

17

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

18

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 482622

Seal

$9.99

$

In Stock, Qty 20+

0

21

Scag 04021-09

Lock Nut, 3/8-16, Elast. Stop

$0.99

$

In Stock, Qty 20+

0

22

Scag 461991

Main Frame

$1836.99

$

Usually ships in 2-12 days

0

23

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04017-27

Screw, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 451480

Fender Weldment, LH

$174.99

$

Usually ships in 2-12 days

0

26

Scag 423489

Foot Plate

$138.99

$

Usually ships in 2-12 days

0

27

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

29

Scag 04001-125

Bolt, Hex Head 5/8-11 x 4"

$5.99

$

In Stock, only 4 left!

0

30

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

31

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-20

Nut, Hex Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

33

Scag 481657

Bearing W/Race
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

34

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

35

Scag 451825

Extention Weldment, Caster 61V

Note: (LH)

$113.99

$

Usually ships in 2-12 days

0

35

Scag 451451

Extention Weldment, Caster 61V

Note: (RH)

$177.99

$

Usually ships in 2-12 days

0

36

Scag 481025

Seal, 2.00 OD. x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

37

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

38

Scag 451416

Yoke Weldment, Caster

Note: (61V & 72A)

$98.99

$

In Stock, Qty 20+

0

39

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2"

Note: (61V & 72A)

$5.99

$

In Stock, Qty 20+

0

40

Scag 43583

Sleeve, Caster Wheel

Note: (61V, 72A)

$13.99

$

In Stock, Qty 20+

0

41

Scag 9278

Wheel Assy, 61V, 72A

Note: (Inc. 20, 54, 55)

$191.99

$

In Stock, Qty 20+

0

42

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

43

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

44

Scag 423674

Mounting Bracket, STT Cup Holder

$9.49

$

Usually ships in 2-12 days

0

45

Scag 482943

Lumbar Kit

$202.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

46

Scag 48566

Cable, Seat Stop

$16.99

$

In Stock, only 1 left!

0

47

Scag 482940

Back Cushion Kit

$379.99

$

Usually ships in 2-12 days

0

48

Scag 9240

Cup Holder Assembly

$

$

Not available

49

Scag 482502

Seat Adjustment, Track Set

$197.99

$

Usually ships in 2-12 days

0

50

Scag 461908

Caster Wheel Assy 61V

Note: (Inc. 31 thru 43) (LH)

$306.99

$

Usually ships in 2-12 days

0

50

Scag 461909

Caster Wheel Assy 61V

Note: (Inc. 31 thru 43) (RH)

$306.99

$

Usually ships in 2-12 days

0

51

Scag 482614

Back Cushion Cover

$136.99

$

In Stock, only 1 left!

0

52

Scag 482615

Seat Cushion Cover

$136.99

$

Usually ships in 2-12 days

0

53

Scag 482618

Arm Rest, Right Hand
(Superseded to 486004)

$104.99

$

Usually ships in 2-12 days

0

Scag 482617

Arm Rest, Left Hand
(Superseded to 486003)

$104.99

$

Usually ships in 2-12 days

0

Scag 482616

Arm Rest Cover

$69.99

$

Usually ships in 2-12 days

0

54

Scag 482621

Bearing w/ Race

$20.99

$

In Stock, Qty 20+

0

55

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, only 1 left!

0

56

Scag 481389

Spring, Seat

$3.49

$

In Stock, only 4 left!

0

57

Scag 43462

Pin Retainer, Spring

$27.99

$

In Stock, only 1 left!

0

58

Scag 04060-01

Roll Pin, Spring 5/32 x 3/4"

$0.99

$

Usually ships in 2-12 days

0

59

Scag 483428

Suspension Seat Assembly w/seat belt
(Superseded to 9292)

$1057.99

$

Usually ships in 2-12 days

0

60

Scag 482950

Armrest Only

$48.99

$

Usually ships in 2-12 days

0

Scag 482945

Armrest Assembly Kit, LH

$264.99

$

Usually ships in 2-12 days

0

Scag 482946

Armrest Assembly Kit, RH

$285.99

$

In Stock, only 1 left!

0

61

Scag 482941

Seat Cushion Kit Seat Drain Kit

Note: (Included with Seat Cushion)

$385.99

$

Usually ships in 2-12 days

0

62

Scag 482944

Weight Adjustment Kit

$207.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

63

Scag 482952

Seat Adjustment, Track Set

$233.99

$

Usually ships in 2-12 days

0

64

Scag 482942

Shock Absorber Kit

$181.99

$

Usually ships in 2-12 days

0

65

Scag 424819

Guard, Fuel Line

$59.99

$

Usually ships in 2-12 days
