STT61V-27CH - Scag Turf Tiger 61" Zero-Turn Mower, 27hp Kohler (SN: F5500001 - F5599999) STT-LE Fuel System - C.A.R.B Tier 3 Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 27hp Kohler

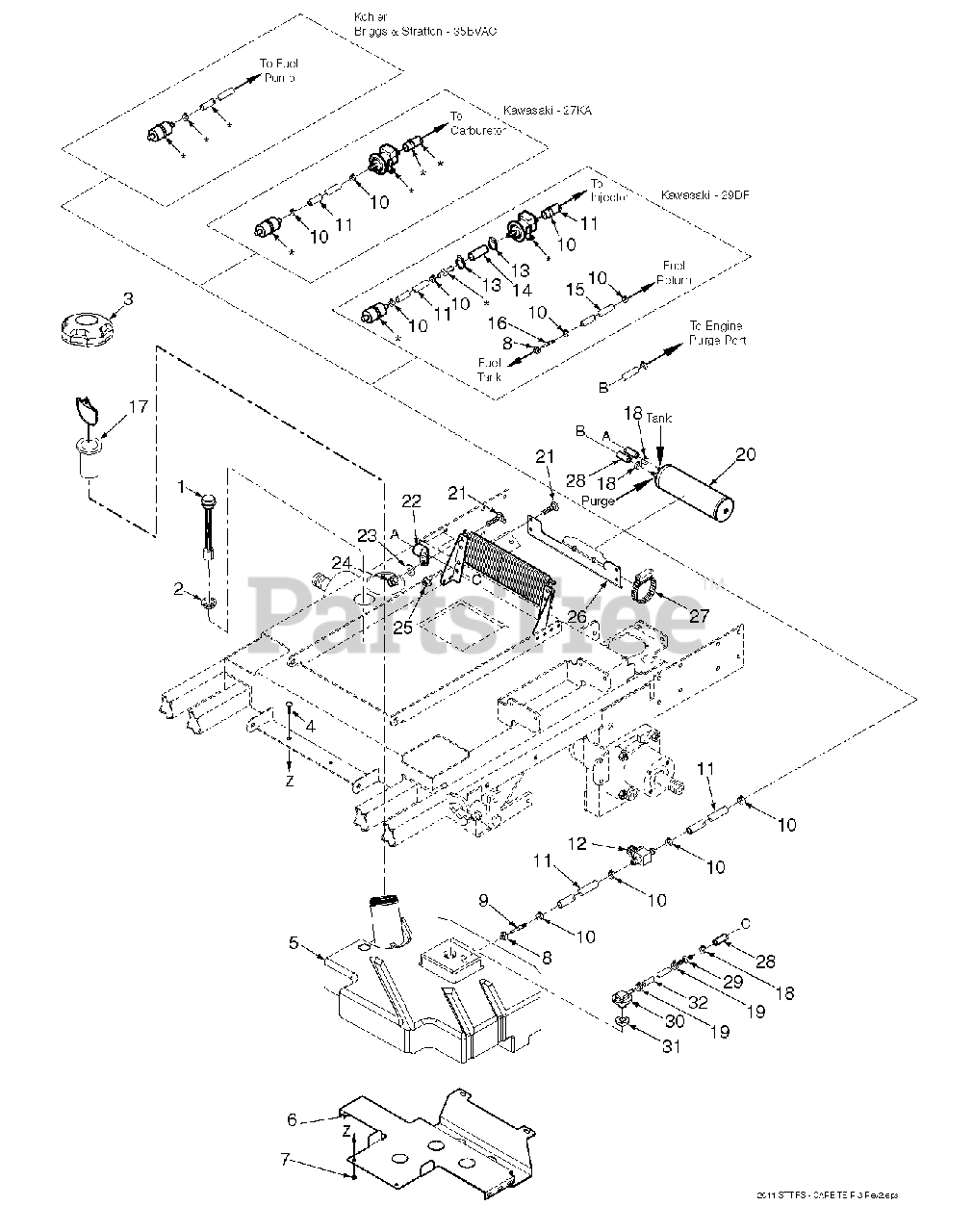

STT-LE Fuel System - C.A.R.B Tier 3 Parts Diagram

  • Title

1

Scag 484251

Fuel Gauge Assembly

$90.99

$

Usually ships in 2-12 days

0

2

Scag 484242

Seal, Fuel Gauge

$21.99

$

In Stock, only 2 left!

0

3

Scag 484297

Fuel Cap, Tethered

Note: (C.A.R.B.)

$63.99

$

Usually ships in 2-12 days

0

4

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

5

Scag 462303

Fuel Tank Assembly - STT
(Superseded to 462384)

Note: (Incl. # 1, 2, 8, 9, 30, 31)

$594.99

$

Usually ships in 2-12 days

0

5

Scag 462304

Fuel Tank Assembly - STT-DFI / EFI
(Superseded to 462385)

Note: (Incl. # 1, 2, 8, 9, 16, 30, 31)

$591.99

$

Usually ships in 2-12 days

0

6

Scag 425517

Support Bracket, Fuel Tank

$120.99

$

Usually ships in 2-12 days

0

7

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

8

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

9

Scag 483749

Hose Fitting

$11.99

$

In Stock, only 1 left!

0

10

Scag 48059-04

Clamp, Fuel Hose 5/16" I.D.

Note: (29DFI)

$0.99

$

Usually ships in 2-12 days

0

11

Scag 483620

Fuel Hose, 5/16" I.D. Non-Perm

Note: (29DFI), Order by Inch

$0.99

$

In Stock, Qty 20+

0

12

Scag 481308

Valve, Fuel Shut-Off

Note: (29DFI)

$41.99

$

Usually ships in 2-12 days

0

13

Scag 48136-05

Clamp, .87" Max. Dia

$3.99

$

In Stock, only 2 left!

0

14

Scag 483622

Fuel Hose, 1/2" I.D. Non-Perm

Note: Order by Inch

$0.99

$

In Stock, Qty 20+

0

15

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm

Note: (29DFI Fuel Return), Order by Inch

$0.99

$

In Stock, Qty 20+

0

16

Scag 482703

Return Fitting, Straight

$28.99

$

In Stock, only 1 left!

0

17

Scag 484279-02

Tube, Fuel Tank Insert - 6"

$4.49

$

Usually ships in 2-12 days

0

18

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

19

Scag 48059-02

Clamp, Fuel Hose 7/32 ID

$0.99

$

In Stock, Qty 19

0

20

Scag 484342

Carbon Canister

$101.99

$

In Stock, only 3 left!

0

21

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

22

Scag 48030-22

Clamp

$1.99

$

Usually ships in 2-12 days

0

23

Scag 04040-03

Flatwasher, 1/4-.281 x .562 x .049

$0.99

$

In Stock, Qty 8

0

24

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 9

0

25

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

26

Scag 425496

Bracket, RH Canister Mounting

$24.99

$

Usually ships in 2-12 days

0

27

Scag 48136-17

Clamp

$7.49

$

Usually ships in 2-12 days

0

28

Scag 484345

Hose, 3/16

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+

0

29

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

30

Scag 484284

Valve, Rollover
(Superseded to 484333)

$14.99

$

In Stock, only 1 left!

0

31

Scag 484284

Grommet, Viton
(Superseded to 484333)

$14.99

$

In Stock, only 1 left!

0

32

Scag 484347

Hose, 1/4" Vapor Recovery

Note: (Order by inch)

$0.99

$

In Stock, Qty 20+
