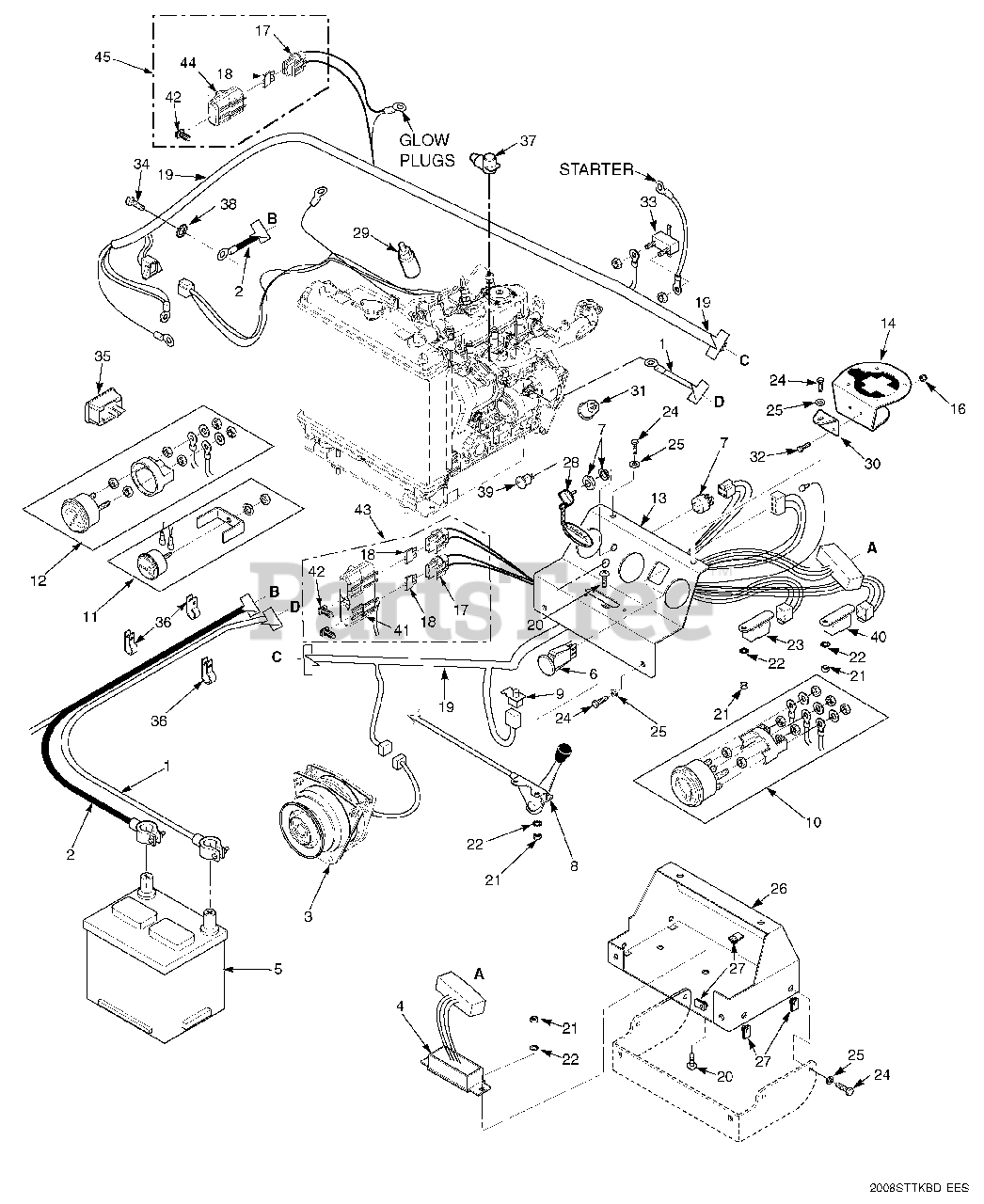

STT61V-25KBD-SS - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kubota Diesel (SN: E3800001 - E3899999) Electrical System - Kubota Diesel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kubota Diesel

Electrical System - Kubota Diesel Parts Diagram

  • Title

1

Scag 481176-10

Cable, Positive Battery

$22.99

$

Usually ships in 2-12 days

0

2

Scag 481176-11

Cable, Negative Battery

$43.99

$

Usually ships in 2-12 days

0

3

Scag 462011

Clutch, Electric PTO

$476.99

$

Usually ships in 2-12 days

0

4

Scag 481808

Module, Interlock
(Superseded to 484054)

$134.99

$

Usually ships in 2-12 days

0

5

Battery

Note: (not available through Scag)

$

$

Not available

6

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0

7

Scag 48798

Switch, Key

Note: (Incl. Nut and Lockwasher)

$27.99

$

In Stock, Qty 20+

0

Scag 48017-03

Nut, 5/8-32 Special

$0.99

$

In Stock, Qty 6

0

Scag 48017-04

Lockwasher 5/8"

$1.49

$

In Stock, Qty 5

0

8

Scag 483356

Cable, Control (Throttle)

$72.99

$

In Stock, only 1 left!

0

9

Scag 481638

Switch, Seat

$15.99

$

In Stock, Qty 20+

0

10

Scag 481183

Gauge, Water Temperature

$136.99

$

Usually ships in 2-12 days

0

11

Scag 481805

Gauge, Oil Pressure

$122.99

$

Usually ships in 2-12 days

0

12

Scag 481184

Gauge, Voltmeter

$94.99

$

Usually ships in 2-12 days

0

13

Scag 462013

Panel, Instrument Panel

$

$

Not available

14

Scag 9240

Cup Holder Accessory

Note: (Incl. 16, 30, 32)

$

$

Not available

15

Scag 04010-11

Screw, #10-32 x 1.5" Phillips

$0.99

$

Usually ships in 2-12 days

0

16

Scag 04021-01

Nut, #10-32 Elastic Stop

$0.99

$

In Stock, Qty 10

0

17

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

18

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

19

Scag 483825

Harness, Wiring
(Superseded to 484720)

$748.99

$

Usually ships in 2-12 days

0

20

Scag 04010-01

Screw, #10-32 x .5" Phillips

$0.99

$

In Stock, Qty 20+

0

21

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

22

Scag 04031-01

Lockwasher #10

$0.99

$

In Stock, Qty 20+

0

23

Scag 483013

Relay

$20.99

$

In Stock, Qty 20+

0

24

Scag 04001-01

Bolt, Hex Hd. 1/4-20 x .75"

$0.99

$

In Stock, Qty 18

0

25

Scag 04030-02

Lockwasher 1/4"

$0.99

$

In Stock, Qty 20+

0

26

Scag 451879

Base, Instrument Panel

$112.99

$

Usually ships in 2-12 days

0

27

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

28

Scag 462069

Key Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

29

Scag 483360

Sender Unit, Water Temperature

$31.99

$

Usually ships in 2-12 days

0

30

Scag 423674

Cup Holder Mounting Bracket

$9.49

$

Usually ships in 2-12 days

0

31

Scag 481811

Sender Unit, Oil Pressure

$241.99

$

Usually ships in 2-12 days

0

32

Scag 04001-01

Bolt, Hex Hd. 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

33

Scag 482784

50 Amp Breaker
(Superseded to 486588)

$21.99

$

Usually ships in 2-12 days

0

34

Scag 04002-17

Bolt, Hex Hd. M8-1.25 x 14mm

$1.49

$

Usually ships in 2-12 days

0

35

Scag 483355

Hour Meter
(Superseded to 484565)

$51.99

$

In Stock, only 1 left!

0

36

Scag 48030-09

Clamp, Cable .5" ID

$1.49

$

In Stock, Qty 5

0

Scag 48030-10

Clamp, Cable .75" ID

$0.99

$

Usually ships in 2-12 days

0

37

Scag 481335

Boot, Positive Battery Terminal

$3.99

$

Usually ships in 2-12 days

0

38

Scag 04031-03

Washer, Star

$0.99

$

Usually ships in 2-12 days

0

39

Scag 481182

Indicator Light, Glow Plugs

$47.99

$

Usually ships in 2-12 days

0

40

Scag 481826

Relay, 40 Amp

$58.99

$

Usually ships in 2-12 days

0

41

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

42

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

43

Scag 483642

Double Fuse Assembly, Sealed

Note: (Incl. items 17, 18, 41, 42)

$43.99

$

Usually ships in 2-12 days

0

44

Scag 483643

Cover, Sealed Single

$4.49

$

In Stock, only 2 left!

0

45

Scag 483641

Single Fuse Assembly, Sealed
(Superseded to 485739)

Note: (Incl. items 17, 18, 42, 44)

$33.99

$

Usually ships in 2-12 days
