STT61V-25KBD-SS - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kubota Diesel (SN: D1000001 - D1099999) Fuel and Hydraulic System - Kubota Diesel Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kubota Diesel

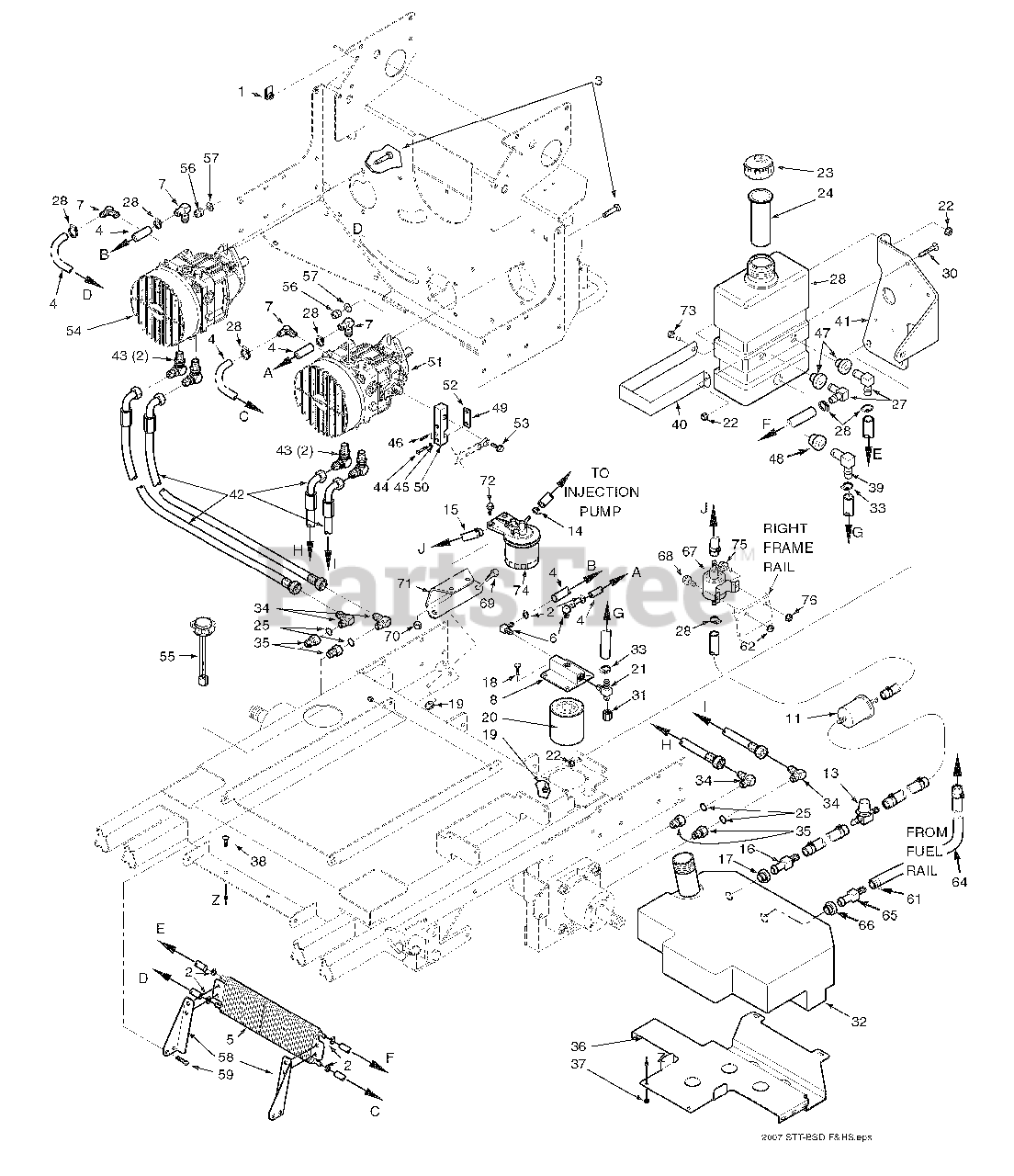

Fuel and Hydraulic System - Kubota Diesel Parts Diagram

  • Title

1

Scag 04110-01

U-Nut 1/4-20

$1.49

$

In Stock, Qty 18

0

2

Scag 48136-13

Hose Clamp, 0.69 dia.

$7.49

$

In Stock, Qty 20+

0

3

Scag 04001-03

Bolt, Hex Head 1/4-20 x 2.0”

$0.99

$

In Stock, Qty 8

0

4

Scag 48811

Hose, 3/8” ID Pushlock

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

5

Scag 482505

Oil Cooler

$241.99

$

Usually ships in 2-12 days

0

6

Scag 481301-03

Elbow, 90 Degree - 1/4 NPT x 3/8 Hose

$10.99

$

In Stock, only 2 left!

0

7

Scag 482266-01

Elbow, 90 Degree - 9/16 O-ring x 3/8 Hose

$31.99

$

Usually ships in 2-12 days

0

8

Scag 482417

Oil Filter Base

$125.99

$

Usually ships in 2-12 days

0

9

Scag 482606

Hose Assembly, 1/2” ID

Note: (Tank to Filter Base)

$25.99

$

Usually ships in 2-12 days

0

10

Scag 48136-05

Clamp, .87 max Dia.

$3.99

$

In Stock, only 2 left!

0

11

Fuel Pre-Filter, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

12

Scag 481178

Fuel Hose, 5/16” ID.

Note: (order by inch)

$

$

Not available

13

Valve, Shutoff

$

$

Not available

14

Scag 48059-01

Clamp, Fuel Hose

$0.99

$

In Stock, Qty 7

0

15

Scag 481178

Fuel Hose, 5/16” ID.

Note: (order by inch)

$

$

Not available

16

Scag 481312

Hose Fitting
(Superseded to 483749)

$11.99

$

In Stock, only 1 left!

0

17

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

18

Scag 04001-09

Bolt, Hex Head 5/16-18 x1.0” Zinc

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 48758

Oil Filter

$26.99

$

In Stock, Qty 17

0

21

Scag 482477

Tee, 3/4 O-ring x JIC x 1/2” Hose

$28.99

$

Usually ships in 2-12 days

0

22

Scag 04021-08

Nut, Hex Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

23

Scag 481164

Cap, Hydraulic Tank

$17.99

$

In Stock, Qty 8

0

24

Scag 481507

Insert, Filler Neck

$12.99

$

Usually ships in 2-12 days

0

25

Scag 48603-02

O-Ring

$3.49

$

In Stock, only 3 left!

0

26

Scag 461451

Oil Reservoir Assembly

Note: (includes 24, 27, 39)

$205.99

$

In Stock, only 1 left!

0

27

Scag 482572

Elbow, 90 Degree .38 Hose

$9.99

$

Usually ships in 2-12 days

0

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

28

Scag 48136-13

Hose Clamp, 0.69 dia.

$7.49

$

In Stock, Qty 20+

0

29

Scag 48811

Hose, 3/8” ID, Pushlock

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

30

Scag 04010-10

Screw, Phillips Head, 1/4-20

$0.99

$

In Stock, Qty 12

0

31

Scag 48571-02

Cap

$5.99

$

Usually ships in 2-12 days

0

32

Scag 461452

Fuel Tank Assembly

Note: (incl. items 16, 17, 65, 66)

$269.99

$

Usually ships in 2-12 days

0

33

Scag 48136-05

Clamp, Hose

$3.99

$

In Stock, only 2 left!

0

34

Scag 48350-02

Elbow, 90 Degree, 7/8-14 THD

$25.99

$

Usually ships in 2-12 days

0

35

Scag 48938-02

Bushing, 7/8-14 JIC x 3/4-16 O-Ring

$14.99

$

Usually ships in 2-12 days

0

36

Scag 423701

Support Bracket, Fuel Tank

$188.99

$

Usually ships in 2-12 days

0

37

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

38

Scag 04003-02

Bolt, Carraige 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 20+

0

39

Scag 482574

Elbow, 90 Degree

$18.99

$

In Stock, only 1 left!

0

Scag 482573

Bushing, .78 Dia. Viton

$13.99

$

In Stock, only 2 left!

0

40

Scag 423513

Strap, Hydraulic Tank

$14.99

$

In Stock, only 1 left!

0

41

Scag 424524

Support Bracket, Hydraulic Tank

$52.99

$

Usually ships in 2-12 days

0

42

Scag 481611

Hose Assembly, Pump
(Superseded to 484459)

$84.99

$

In Stock, only 3 left!

0

43

Scag 48572-04

Union, 3/4-16 JIC x 3/4-16 O-ring

$8.49

$

In Stock, only 1 left!

0

44

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-14”

$0.99

$

In Stock, Qty 5

0

45

Scag 04030-02

Lockwasher, 1/4” Spring

$0.99

$

In Stock, Qty 20+

0

46

Scag 04060-09

Roll Pin, Spring 3/16 x 3/4”

$1.49

$

In Stock, only 3 left!

0

47

Scag 04017-05

Bolt, Hex Serrated Flange, 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 20+

0

48

Scag 481178

Fuel Hose, 5/16” ID.

Note: (order by inch)

$

$

Not available

49

Scag 422694

Clamp Plate, Pump Control

$13.99

$

In Stock, only 1 left!

0

50

Scag 481793

Block, Pump Control

$55.99

$

Usually ships in 2-12 days

0

51

Scag 483101

Pump, Left Hand, BDP-16A

$811.99

$

Usually ships in 2-12 days

0

52

Scag 04021-09

Nut, Hex, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 12

0

54

Scag 483100

Pump, Right Hand, BDP 16A

$811.99

$

In Stock, only 1 left!

0

55

Scag 482498

Cap, Fuel Tank W/Gauge

$100.99

$

Usually ships in 2-12 days

0

56

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

57

Scag 04043-04

Flatwasher, 3/8” Grade 8

Note: (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

58

Scag 424483

Mounting Bracket - LH, Oil Cooler

$30.99

$

Usually ships in 2-12 days

0

Scag 424484

Mounting Bracket - RH, Oil Cooler

$30.99

$

Usually ships in 2-12 days

0

59

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 20+

0

60

Scag 482505

Cooler, Oil

$241.99

$

Usually ships in 2-12 days

0

61

Scag 48136-13

Clamp, .69 Dia.

$7.49

$

In Stock, Qty 20+

0

62

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

63

Adapter, 1/2” - 5/16”

Note: (p/n 59071-2141) Available through the individual engine manufacturer.

$

$

Not available

64

Scag 48058

Hose, 1/4” Fuel Line
(Superseded to 483617)

Note: (order by inch)

$0.99

$

In Stock, Qty 20+

0

65

Scag 482703

Fitting, Hose

$28.99

$

In Stock, only 1 left!

0

66

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

67

Fuel Pump, Kubota

Note: Available through the individual engine manufacturer.

$

$

Not available

68

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 10

0

69

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1”

$0.99

$

In Stock, Qty 6

0

70

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

71

Scag 424487

Bracket, Fuel Filter Mounting

$30.99

$

Usually ships in 2-12 days

0

72

Scag 04017-16

Bolt, Hex Head Serr. Flange 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 10

0

73

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 18

0

74

Fuel Filter

Note: Available through the individual engine manufacturer.

$

$

Not available

75

Scag 04017-05

Bolt, Hex Head 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 20+

0

76

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0
