STT61V-25KA - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kawasaki (SN: K1700001 - K1799999) STT Electrical Schematic (25KA - Kawasaki) Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kawasaki

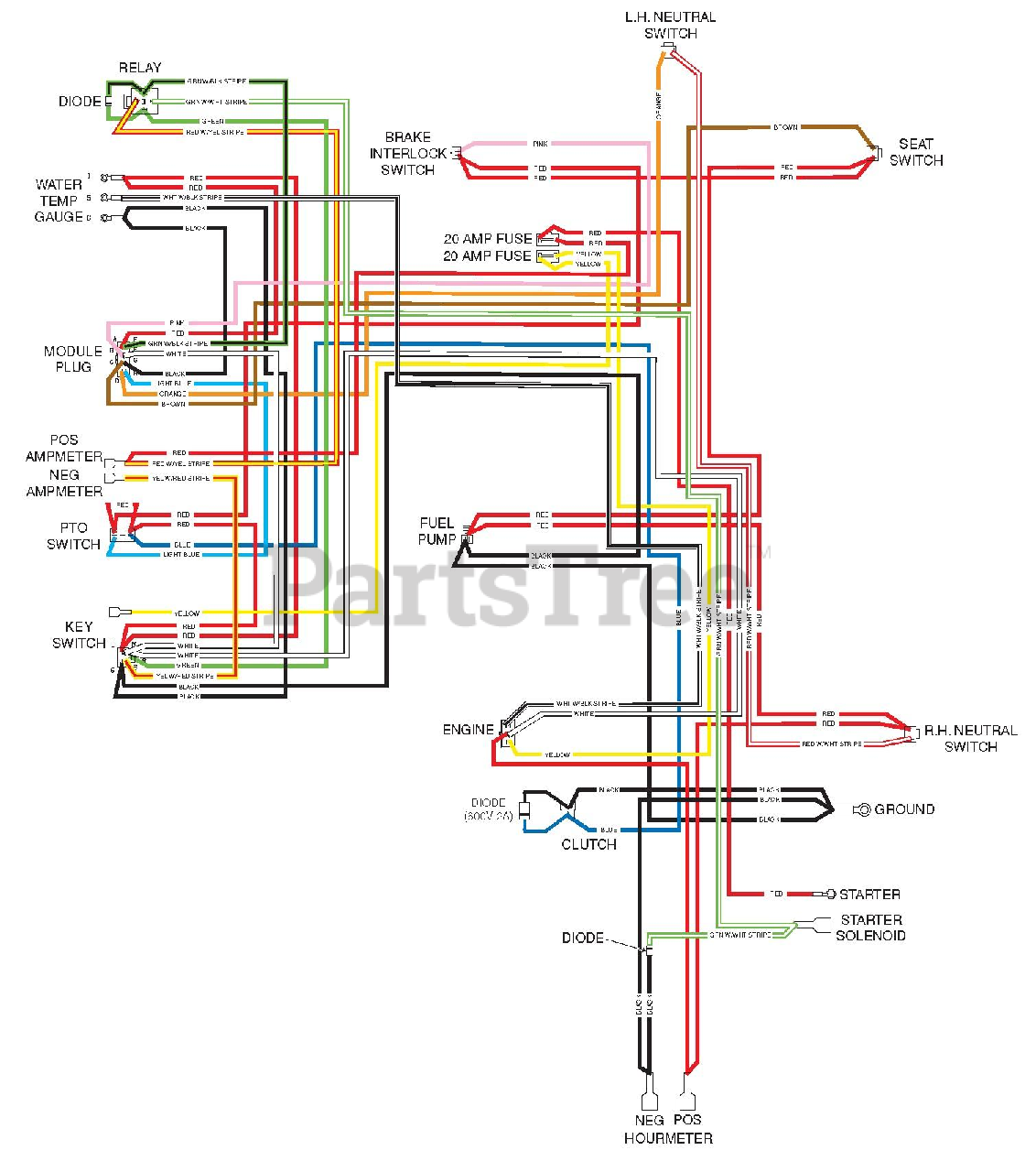

STT Electrical Schematic (25KA - Kawasaki) Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
