STT61V-25CH-LP - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane (SN: H9000001 - H9099999) Sheet Metal Components Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane

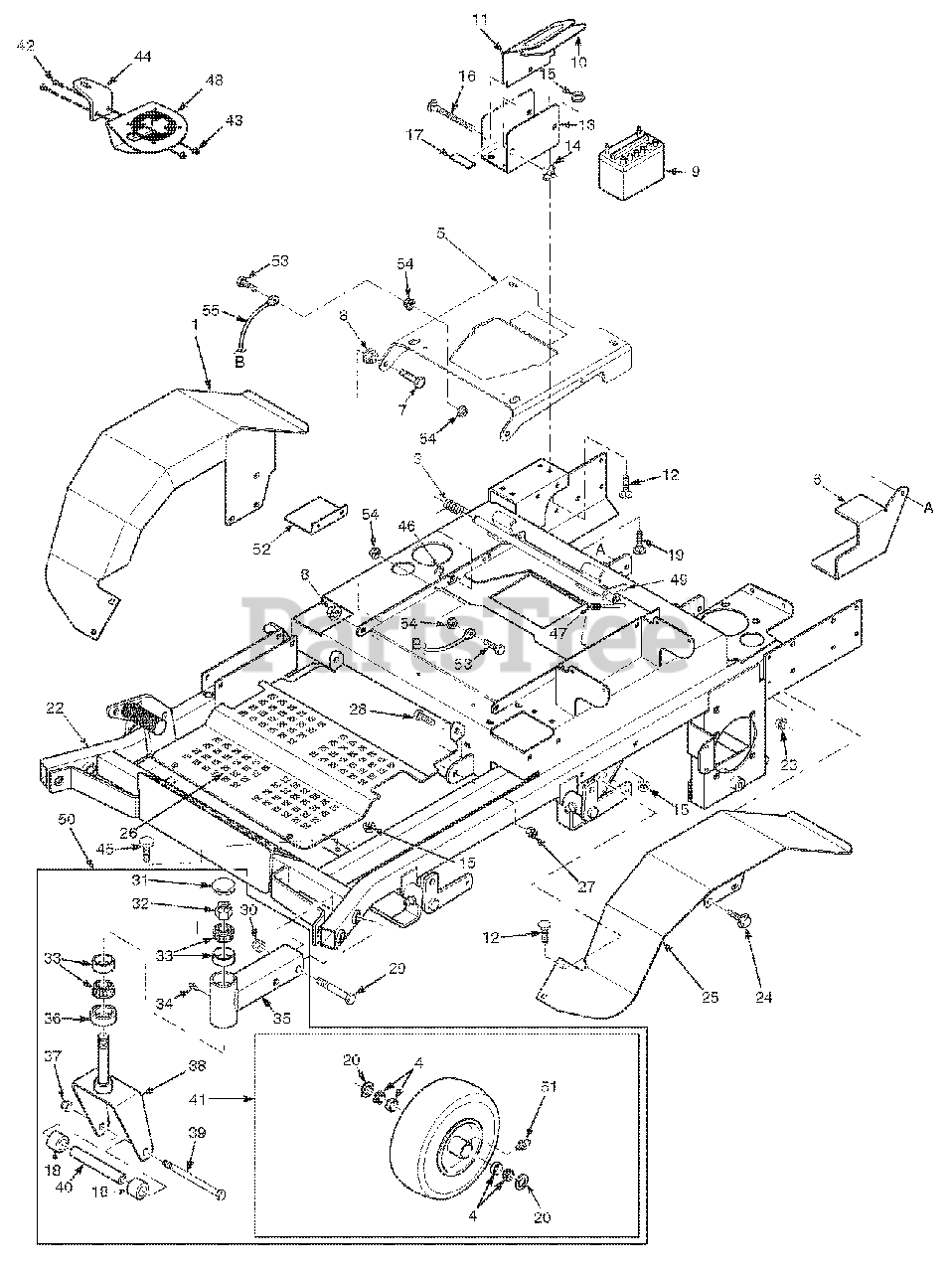

Sheet Metal Components Parts Diagram

  • Title

1

Scag 451481

Fender Weldment, RH

$266.99

$

Usually ships in 2-12 days

0

2

Scag 04001-09

Bolt, Hex Head, 5/16-18 x 1, Zinc

$0.99

$

In Stock, Qty 20+

0

3

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

4

Scag 482621

Bearing w/ Race

$20.99

$

In Stock, Qty 20+

0

5

Scag 491729

Seat Plate w/Decal

$

$

Currently unavailable

6

Scag 424819

Guard, Fuel Line

$59.99

$

Usually ships in 2-12 days

0

7

Scag 04001-117

Bolt, Hex Head 7/16-14 x 1-3/4"

$0.99

$

In Stock, only 3 left!

0

8

Scag 04019-05

Nut, 7/16-14 Serrated Flange

$0.99

$

In Stock, Qty 12

0

9

Battery (not avail. through Scag)

$

$

Not available

10

Scag 48903

Pad, Battery Cover

$12.99

$

Usually ships in 2-12 days

0

11

Scag 421274

Cover, Battery

$41.99

$

Usually ships in 2-12 days

0

12

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 423308

Plate, Battery Box

$52.99

$

In Stock, only 1 left!

0

14

Scag 04029-01

Wing Nut, 1/4-20 x 3/4"

$2.49

$

In Stock, Qty 19

0

15

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 04003-01

Bolt, Carriage 1/4-20 x 6"
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

17

Scag 48661

Rubber Pad

$4.99

$

Usually ships in 2-12 days

0

18

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

19

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

20

Scag 482622

Seal

$9.99

$

In Stock, Qty 20+

0

21

Scag 04021-09

Locknut, 3/8-16, Elast. Stop

$0.99

$

In Stock, Qty 20+

0

22

Scag 462329

Main Frame w/Decals

$1981.99

$

Usually ships in 2-12 days

0

23

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04017-27

Screw, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

25

Scag 451480

Fender Weldment, LH

$174.99

$

Usually ships in 2-12 days

0

26

Scag 423489

Foot Plate

$138.99

$

Usually ships in 2-12 days

0

27

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

29

Scag 04001-125

Bolt, Hex Head 5/8-11 x 4"

$5.99

$

In Stock, only 4 left!

0

30

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

31

Scag 481559

Cap, Grease

$6.99

$

In Stock, Qty 20+

0

32

Scag 04021-20

Nut, Hex Elastic Stop 1.0-14

$4.99

$

In Stock, Qty 20+

0

33

Scag 481657

Bearing W/Race
(Superseded to 48668)

$23.99

$

In Stock, Qty 20+

0

34

Scag 482028-01

Plug, 1/4-28 THD Form

$6.49

$

In Stock, only 3 left!

0

35

Scag 451450

Extention Weldment, Caster 52V (LH)

$177.99

$

Usually ships in 2-12 days

0

35

Scag 451957

Extention Weldment, Caster 52V (RH)

$372.99

$

Usually ships in 2-12 days

0

35

Scag 451825

Extention Weldment, Caster 61V (LH)

$113.99

$

Usually ships in 2-12 days

0

35

Scag 451451

Extention Weldment, Caster 61V (RH)

$177.99

$

Usually ships in 2-12 days

0

36

Scag 481025

Seal, 2.00" OD. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

37

Scag 04021-07

Nut, Hex Elastic Stop 1/2-13

$0.99

$

In Stock, Qty 20+

0

38

Scag 45934

Yoke Weldment, Caster (52V)

$152.99

$

In Stock, only 2 left!

0

38

Scag 451416

Yoke Weldment, Caster (61V)

$98.99

$

In Stock, Qty 20+

0

39

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (52V)

$5.49

$

In Stock, Qty 20+

0

39

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V)

$5.99

$

In Stock, Qty 20+

0

40

Scag 43581

Sleeve, Caster Wheel (52V)

$9.49

$

In Stock, Qty 20+

0

40

Scag 43583

Sleeve, Caster Wheel (61V)

$13.99

$

In Stock, Qty 20+

0

41

Scag 9277

Wheel Assy, 52V

Note: (Incl. items 20, 54, 55)

$174.99

$

In Stock, Qty 20+

0

41

Scag 9278

Wheel Assy, 61V, 72A

Note: (Incl. 20, 54, 55)

$191.99

$

In Stock, Qty 20+

0

42

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

43

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

44

Scag 423674

Mounting Bracket, STT Cup Holder

$9.49

$

Usually ships in 2-12 days

0

45

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

46

Scag 04050-01

Retaining Ring, .625" Ext. "E"

$0.99

$

In Stock, Qty 20+

0

47

Scag 484341

Grip, Seat Latch

$0.99

$

Usually ships in 2-12 days

0

48

Scag 9240

Cup Holder Assembly

$

$

Not available

49

Scag 491731

Lever Assembly, Seat Release

$155.99

$

Usually ships in 2-12 days

0

50

Scag 462045

Caster Wheel Assembly 52V (LH)

Note: (Incl. 31 thru 43)

$361.99

$

Usually ships in 2-12 days

0

50

Scag 462046

Caster Wheel Assembly 52V (RH)

Note: (Incl. 31 thru 43)

$361.99

$

Usually ships in 2-12 days

0

50

Scag 461908

Caster Wheel Assembly 61V (LH)

Note: (Incl. 31 thru 43)

$306.99

$

Usually ships in 2-12 days

0

50

Scag 461909

Caster Wheel Assembly 61V (RH)

Note: (Incl. 31 thru 43)

$306.99

$

Usually ships in 2-12 days

0

51

Scag 48114-10

Grease Fitting

$3.99

$

In Stock, only 1 left!

0

52

Scag 425289

Cover, Fuel Tank Opening

$12.99

$

Usually ships in 2-12 days

0

53

Scag 04001-02

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

54

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

55

Scag 48566

Cable, Seat Stop

$16.99

$

In Stock, only 1 left!

0
