STT61V-25CH-LP - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane (SN: H9000001 - H9099999) LP System - Kohler Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane

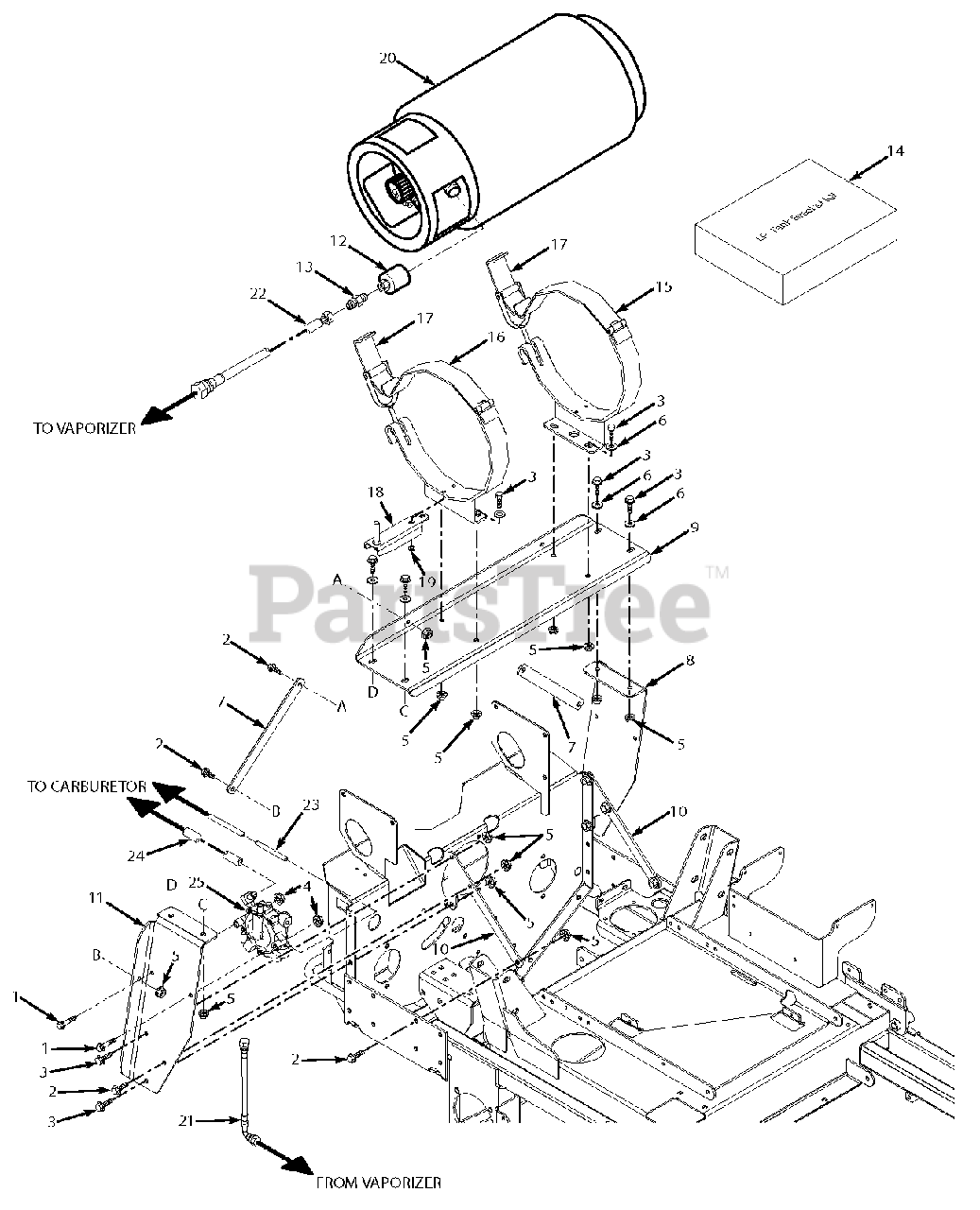

LP System - Kohler Parts Diagram

  • Title

1

Scag 04001-12

Bolt, Heax Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

2

Scag 04001-18

Bolt, Head Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 20+

0

4

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

7

Scag 422386

Brace

$13.99

$

Usually ships in 2-12 days

0

8

Scag 425254

Mounting Bracket, Tank Support LH

$51.99

$

Usually ships in 2-12 days

0

9

Scag 425261

Support, LP Tank

$57.99

$

Usually ships in 2-12 days

0

10

Scag 425262

Brace, LP Tank Mounting Bracket

$20.99

$

Usually ships in 2-12 days

0

11

Scag 425263

Mounting Bracket, Tank Support RH

$44.99

$

Usually ships in 2-12 days

0

12

Scag 483888

LP Quick Coupler

$40.99

$

In Stock, Qty 7

0

13

Scag 483889-01

Adapter Fitting, 9/16-18 SAE x 1/4" Pipe

$5.99

$

Usually ships in 2-12 days

0

14

Scag 483903

Mounting Bracket Kit

Note: (incl. # 15, 16, 17, 18, 19)

$362.99

$

Usually ships in 2-12 days

0

15

Scag 483909

Mounting Bracket, LP Tank Front
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

16

Scag 483910

Mounting Bracket, LP Tank Rear
(Superseded to 483903)

$362.99

$

Usually ships in 2-12 days

0

17

Scag 483911

Handle, LP Tank Mounting Bracket

$26.99

$

In Stock, only 4 left!

0

18

Scag 483912

Bracket, LP Tank Locator

$77.99

$

Usually ships in 2-12 days

0

19

Scag 484000

Bolt, Hex Head 1/4-20 x 3/8" Locking

$

$

Not available

20

Scag 483899

LP Tank

$1019.99

$

Usually ships in 2-12 days

0

21

Scag 484033

LP Fuel Line, 10"

$137.99

$

Usually ships in 2-12 days

0

22

Scag 484034

LP Fuel Line, 32"

$109.99

$

Usually ships in 2-12 days

0

23

Hose

Note: Available through the individual engine manufacturer.

$

$

Not available

24

Hose

Note: Available through the individual engine manufacturer.

$

$

Not available

25

LP Regulator

Note: Available through the individual engine manufacturer.

$

$

Not available
