STT61V-25CH-LP - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane (SN: F5500001 - F5599999) STT Roll-Over Protection System Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane

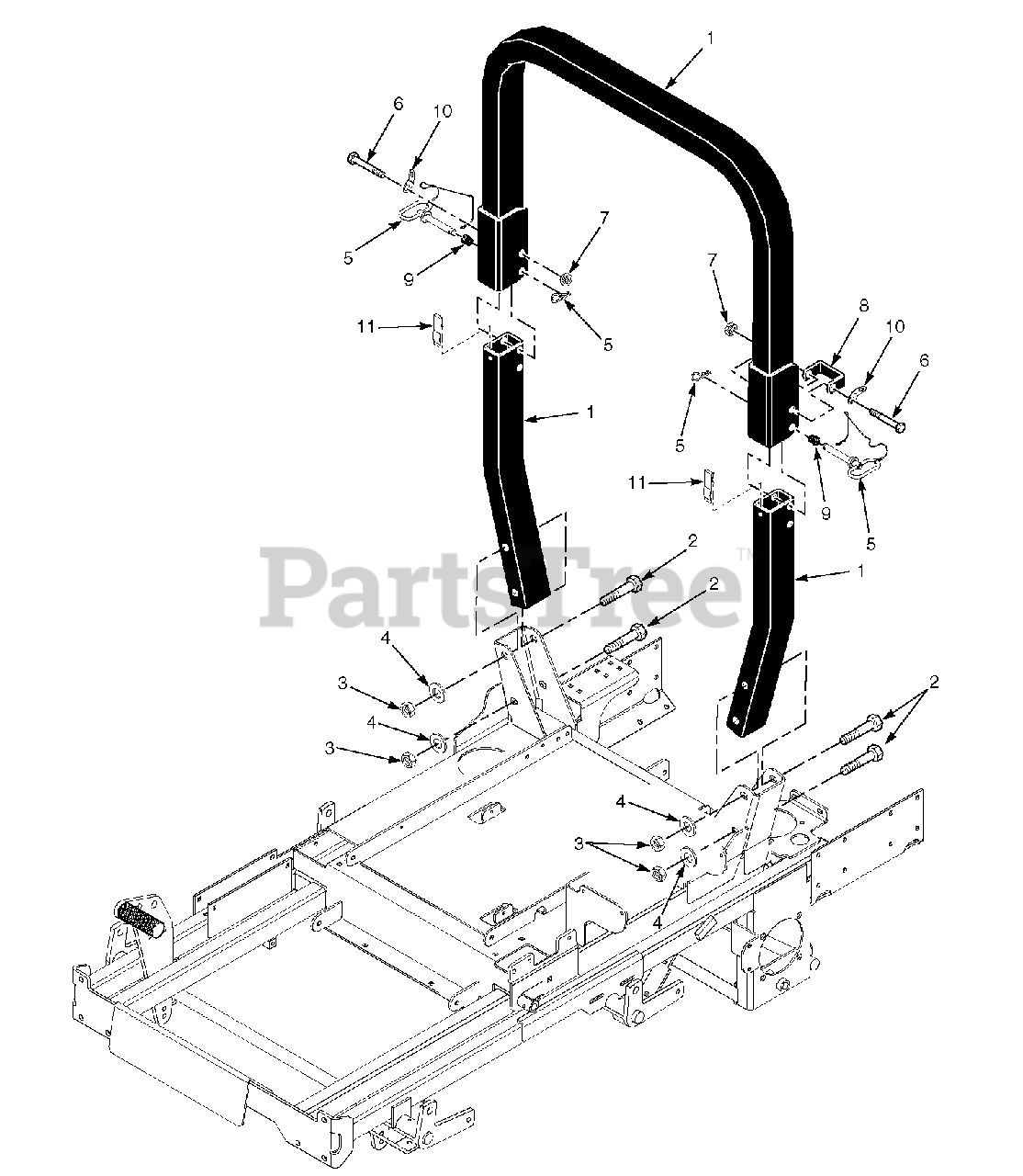

STT Roll-Over Protection System Parts Diagram

  • Title
1

Scag 462210

STT, ROPS

$798.99

$

Usually ships in 2-12 days

0

2

Scag 04001-87

Bolt, Hex Head 1/2-13 x 4"

$2.99

$

In Stock, Qty 10

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

4

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

5

Scag 484168

Pin Assembly

Note: (Incl. #9 & #10)

$28.99

$

In Stock, only 2 left!

0

6

Scag 04001-163

Bolt, Hex Head 1/2-13 x 3-3/4"

$3.49

$

In Stock, Qty 14

0

7

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

8

Scag 484166

Stop Bracket, ROPS
(Superseded to 425487)

$13.99

$

Usually ships in 2-12 days

0

9

Scag 484170

Spring, ROPS

$1.49

$

Usually ships in 2-12 days

0

10

Scag 484169

Clip, ROPS

$3.99

$

Usually ships in 2-12 days

0

11

Scag 484167

Spring Clip, ROPS

$4.99

$

Usually ships in 2-12 days

0
