STT61V-25CH-LP - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane (SN: F5500001 - F5599999) Deck Drive Components Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler Propane

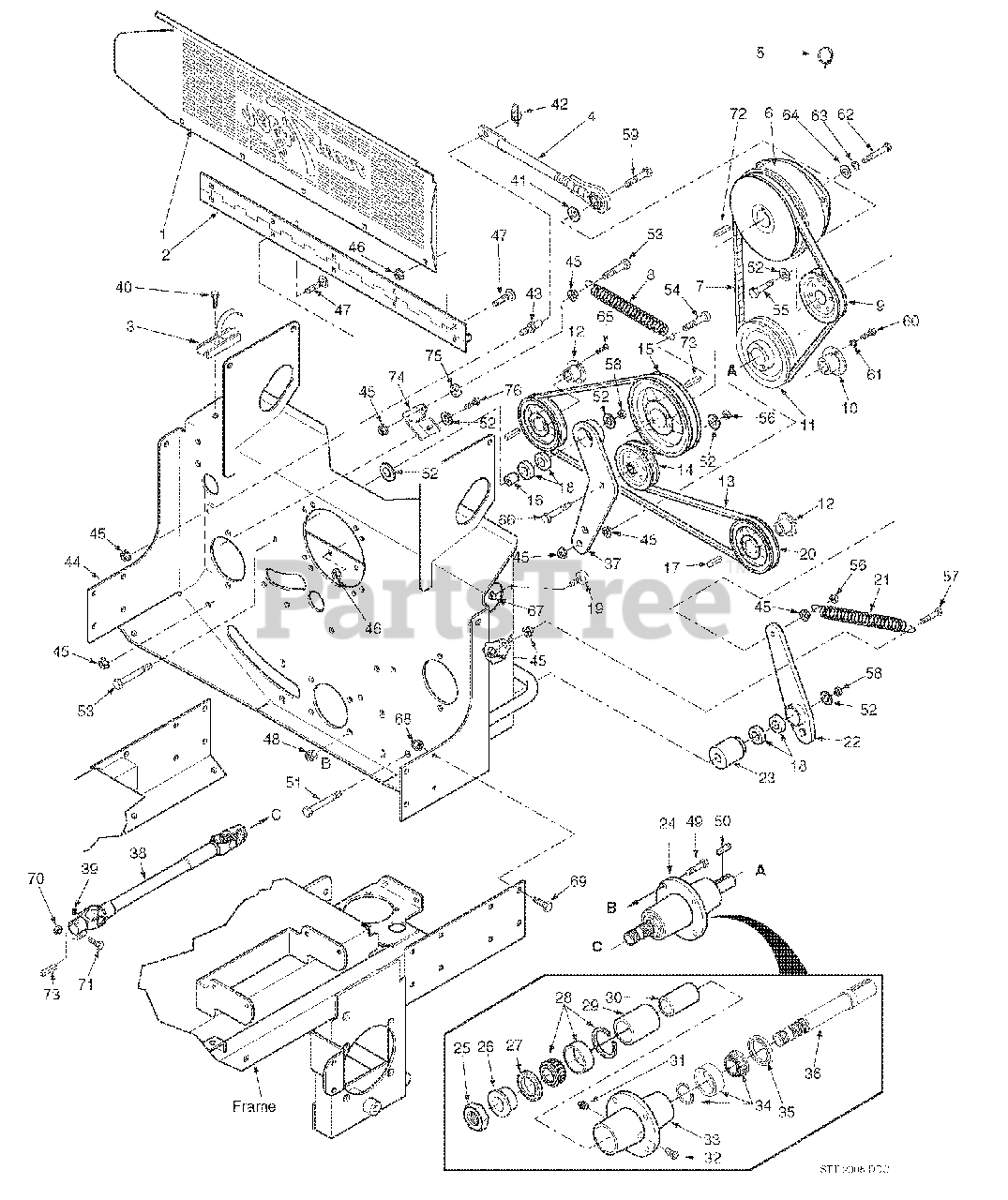

Deck Drive Components Parts Diagram

  • Title

1

Scag 423925

Belt Guard, Rear
(Superseded to 425133)

$68.99

$

In Stock, only 1 left!

0

2

Scag 481531

Hinge, Belt Guard

$30.99

$

In Stock, only 1 left!

0

3

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

4

Scag 482845

Rod Assembly, Clutch Anti-Rotation

$56.99

$

In Stock, only 1 left!

0

5

Scag 48030-09

Clamp, Cable

$1.49

$

In Stock, Qty 5

0

6

Scag 461661

Clutch, Ogura GT-3.5

$429.99

$

In Stock, only 2 left!

0

7

Scag 482876

Belt, Deck Drive

$27.99

$

In Stock, Qty 15

0

8

Scag 483088

Spring, Transmission Idler

$46.99

$

In Stock, only 1 left!

0

9

Scag 48181

Pulley, Idler 5" Dia.

$26.99

$

In Stock, Qty 11

0

10

Scag 481536

Tapered Hub, 1" Bore

$58.99

$

Usually ships in 2-12 days

0

11

Scag 482949

Pulley, 6.70" Tapered Bore

$55.99

$

In Stock, only 1 left!

0

12

Scag 481884

Tapered Hub, 17mm Bore

$27.99

$

In Stock, only 1 left!

0

13

Scag 483165

Belt, Pump Drive STT

$68.99

$

In Stock, Qty 20+

0

14

Scag 483214

Pulley, Idler 4" Dia.

$26.99

$

In Stock, only 1 left!

0

15

Scag 483082

Pulley, 4.55" Dia.-1.125" Bore

$168.99

$

Usually ships in 2-12 days

0

16

Scag 43631

Spacer, Idler Bearing

$4.99

$

In Stock, only 1 left!

0

17

Scag 04063-14

Key, 5.0 x 5.0 x 25mm

$0.99

$

In Stock, Qty 5

0

18

Scag 48224

Ball Bearing

$12.99

$

In Stock, Qty 20+

0

19

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

20

Scag 482745

Pulley, 6.35" O.D.

$30.99

$

In Stock, Qty 9

0

21

Scag 482667

Spring, PTO
(Superseded to 484754)

$18.99

$

In Stock, Qty 6

0

22

Scag 461609

Idler Arm Weldment, PTO Drive

$57.99

$

Usually ships in 2-12 days

0

23

Scag 43632

Pivot, Idler PTO

$27.99

$

Usually ships in 2-12 days

0

24

Scag 461697

Spindle Assembly, Deck Drive

$319.99

$

In Stock, only 1 left!

0

25

Scag 481035

Nut, 1.06"-18 Thread

$7.99

$

In Stock, only 3 left!

0

26

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

27

Scag 481025

Seal, 2.0" OD x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

28

Scag 481022

Roller Bearing Tapered

$59.99

$

In Stock, Qty 15

0

29

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

30

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

31

Scag 48114-04

Grease Fitting, 1/4-28

$0.99

$

In Stock, Qty 20+

0

32

Scag 48677

Relief Fitting

$

$

Not available

33

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

34

Scag 481022

Roller Bearing Tapered

$59.99

$

In Stock, Qty 15

0

35

Scag 481024

Seal, 2.0" OD x 1.5" Bore

$4.99

$

In Stock, Qty 20+

0

36

Scag 43534

Shaft, Deck Drive
(Superseded to 43321)

$

$

Not available

37

Scag 461608

Idler Arm Weldment, Pump Drive

$86.99

$

Usually ships in 2-12 days

0

38

Scag 482424

Driveshaft

Note: (Air-Cooled Engine)

$612.99

$

In Stock, only 1 left!

0

39

Scag 04012-08

Set Screw, 3/8-16 x 3/4" Torx Socket
(Superseded to 04012-06)

$0.99

$

In Stock, only 1 left!

0

40

Scag 04011-11

Screw, #10-32 x .56"

$0.99

$

In Stock, Qty 8

0

41

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105")

$0.99

$

In Stock, Qty 20+

0

42

Scag 04069-01

Pin, Rue Cotter 3/8" Dia.

$1.49

$

In Stock, only 4 left!

0

43

Scag 43507

Stud, Anti Rotation

$32.99

$

In Stock, only 1 left!

0

44

Scag 452105

Pump Mounting Plate Weldment

Note: (STT-25CH-LP)

$450.99

$

Usually ships in 2-12 days

0

45

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

46

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

47

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

48

Scag 04021-22

Nut, Elastic Stop 5/16-18 Grade 8

$0.99

$

In Stock, Qty 20+

0

49

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8

$0.99

$

In Stock, Qty 20+

0

50

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

51

Scag 04001-171

Bolt, Hex Head 3/8-16 x 4-1/2" Grd 8 Black

$2.49

$

In Stock, Qty 5

0

52

Scag 04043-04

Washer, 3/8" Hardened

$0.99

$

In Stock, Qty 20+

0

53

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4" Grd 8 Black

$0.99

$

In Stock, only 4 left!

0

54

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grd 8 Black

$0.99

$

In Stock, Qty 20+

0

55

Scag 04001-170

Bolt, Hex Head 3/8-16 x 2-1/2" Grd.8

$3.99

$

In Stock, Qty 6

0

56

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

57

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grd 8 Black

$0.99

$

In Stock, Qty 20+

0

58

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-45

Bolt, Hex Head 3/8-16 x 2"

$0.99

$

In Stock, Qty 8

0

60

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1-3/8"

$2.49

$

In Stock, only 2 left!

0

61

Scag 04030-02

Lockwasher, 1/4" Spring

$0.99

$

In Stock, Qty 20+

0

62

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2-1/2" UNF

$1.99

$

In Stock, only 3 left!

0

63

Scag 04030-05

Lockwasher, 7/16" Spring

$0.99

$

In Stock, Qty 5

0

64

Scag 04041-28

Flatwasher, 7/16 (.469 x 1.75 x .25")

$2.99

$

In Stock, Qty 12

0

65

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1" Grade 8

$0.99

$

In Stock, Qty 20+

0

66

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

67

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

68

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

69

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

70

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

71

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

72

Scag 04063-02

Key, 1/4 x 1/4 x 2-1/4"

$1.99

$

In Stock, only 2 left!

0

73

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

74

Scag 424138

Bracket

$28.99

$

Usually ships in 2-12 days

0

75

Scag 43063

Spacer

$7.99

$

In Stock, only 2 left!

0

76

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0
