STT61A-27KA - Scag Turf Tiger 61" Zero-Turn Mower, 27hp Kawasaki (SN: 8520001 - 8529999) Cutter Decks 61" Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 27hp Kawasaki

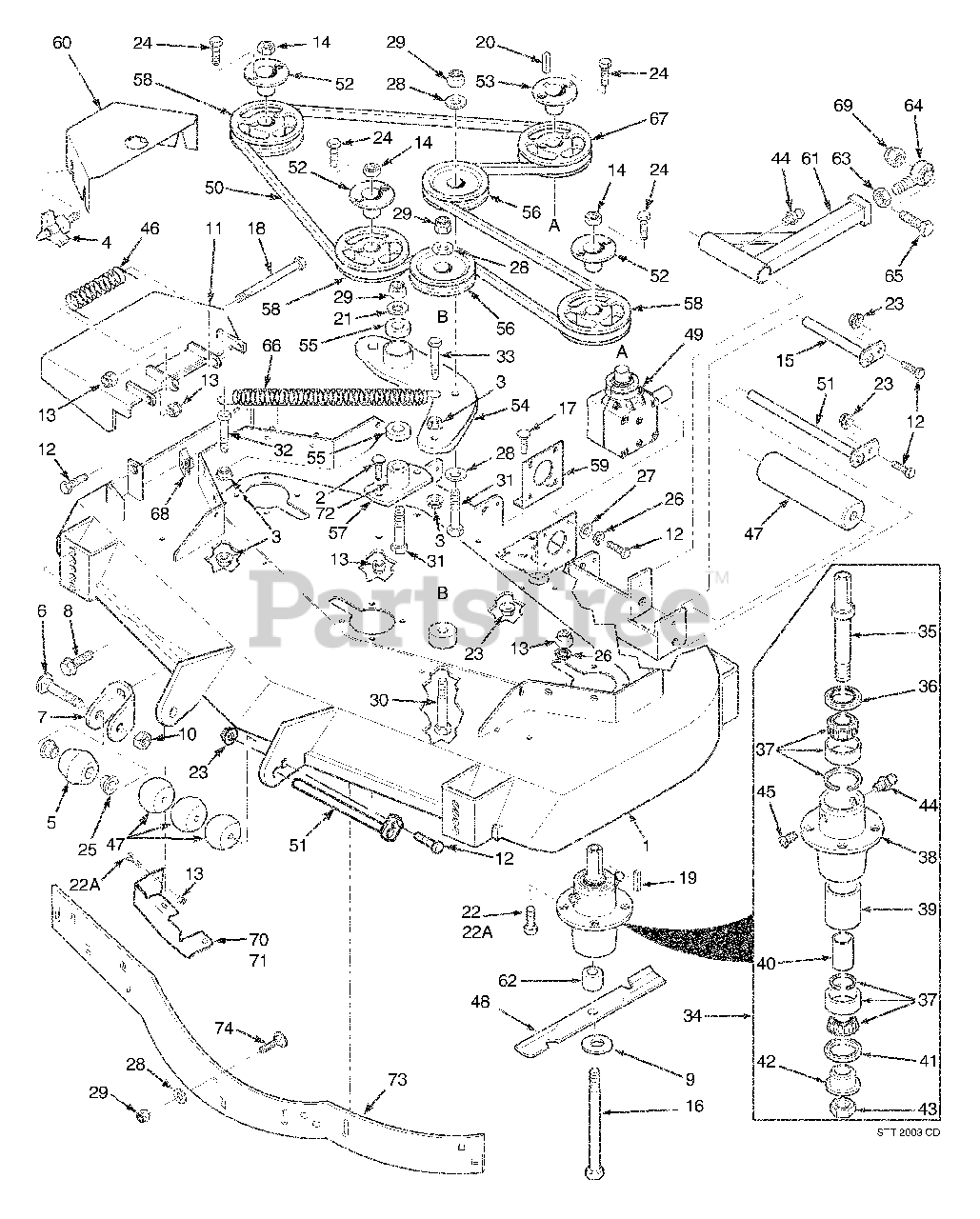

Cutter Decks 61" Parts Diagram

  • Title

1

Scag 461505

Cutter Deck Advantage
(Superseded to 461657K)

$1960.99

$

Usually ships in 2-12 days

0

2

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

3

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Anti-Scalp Wheel Bracket

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Hex Serrated Flange 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 421296

Discharge Chute Advantage - Large
(Superseded to 461296)

$70.99

$

In Stock, only 2 left!

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-3/4" - Front

$0.99

$

In Stock, Qty 6

0

13

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

?15

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, Hex Head 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-108

Bolt, Hex Head 5/16-18 x 4-1/2"

$2.49

$

In Stock, Qty 9

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

21

Scag 04043-04

Flatwasher,3/8-.39 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

22A

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

23

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-01

Bolt, Hex Head 1/2-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

25

Scag 48100-15

Bushing, .376 I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher, 5/16" (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-62

Bolt, Hex Head 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

31

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

32

Scag 04001-20

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 20+

0

34

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

35

Scag 43589

Spindle Shaft

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 43294

Spindle Housing
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

39

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

40

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

41

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

42

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

43

Scag 481035

Nut, Special 1 - 1/16-18

$7.99

$

In Stock, only 3 left!

0

44

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

45

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

Usually ships in 2-12 days

0

46

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

47

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

48

Scag 482464

Cutter Blade, 21"
(Superseded to 481708)

$27.99

$

In Stock, Qty 20+

0

49

Scag 482486

Gearbox Assembly, Deck Drive

$704.99

$

In Stock, only 1 left!

0

50

Scag 481558

Belt, Cutter Deck Drive

$98.99

$

In Stock, Qty 12

0

51

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0

52

Scag 48926

Tapered Hub, 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

53

Scag 48141

Tapered Hub, 1" Bore

$30.99

$

In Stock, only 1 left!

0

54

Scag 461174

Idler Arm, Cutter Deck

$97.99

$

In Stock, only 1 left!

0

55

Scag 48224

Bearings, Ball

$13.99

$

In Stock, Qty 20+

0

56

Scag 482416

Pulley, Idler
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

57

Scag 422713

Base, Idler Pivot

$14.99

$

In Stock, only 1 left!

0

58

Scag 48753

Pulley, 6.75 O.D. 61")
(Superseded to 482745)

$31.99

$

In Stock, Qty 9

0

59

Scag 422426

Mounting Plate, Gearbox

$52.99

$

Usually ships in 2-12 days

0

60

Scag 422413

Belt, Cover

$79.99

$

Usually ships in 2-12 days

0

61

Scag 461516

Pusharm

Note: (incl. items 44, 62, 63 & 64)

$216.99

$

In Stock, only 2 left!

0

62

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

63

Scag 04020-16

Nut, Hex Head 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

64

Scag 48763

Rod End, 5/8" Male RH Thread

$59.99

$

In Stock, Qty 6

0

65

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

66

Scag 481597

Spring, Cutter Deck
(Superseded to 483704)

$29.99

$

In Stock, Qty 20+

0

67

Scag 482480

Pulley, 6.75 O.D.
(Superseded to 482746)

$34.99

$

In Stock, only 1 left!

0

68

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

69

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

70

Discharge Baffle 52"

Note: Not used on this model.

$

$

Not available

71

Scag 422601

Discharge Baffle 61"
(Superseded to 423957)

$77.99

$

Usually ships in 2-12 days

0

72

Scag 43503

Pivot, Idler - Short

$27.99

$

In Stock, Qty 19

0

73

Scag 451509

Baffle, Custom Cut 61A

$273.99

$

Usually ships in 2-12 days

0

74

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0
