STT61A-27CH - Scag Turf Tiger 61" Zero-Turn Mower, 27hp Kohler (SN: A6000001 - A6099999) STT Roll Over Protection System - Without Suspension Seat Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 27hp Kohler

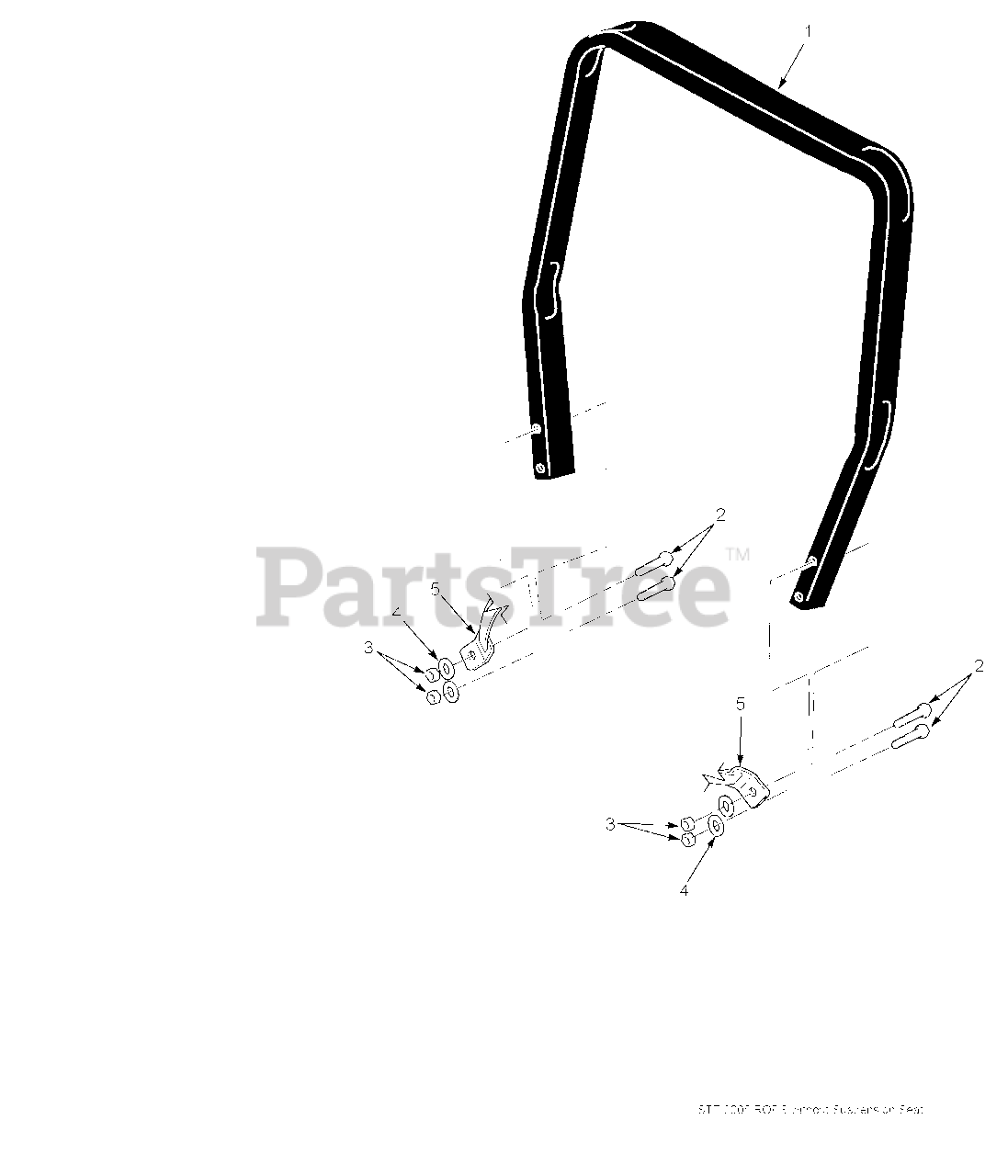

STT Roll Over Protection System - Without Suspension Seat Parts Diagram

  • Title
1

Scag 461817

STT, ROPS

$

$

Not available

2

Scag 04001-82

Bolt, Hex Head 1/2-13 x 4-1/2"

$6.49

$

In Stock, Qty 5

0

3

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0

4

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

5

Scag 483150

Seat Belt

$173.99

$

Usually ships in 2-12 days

0
