STT61A-25CH - Scag Turf Tiger 61" Zero-Turn Mower, 25hp Kohler (SN: 5450001 - 5459999) Engine And Attaching Parts - Kawasaki Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 25hp Kohler

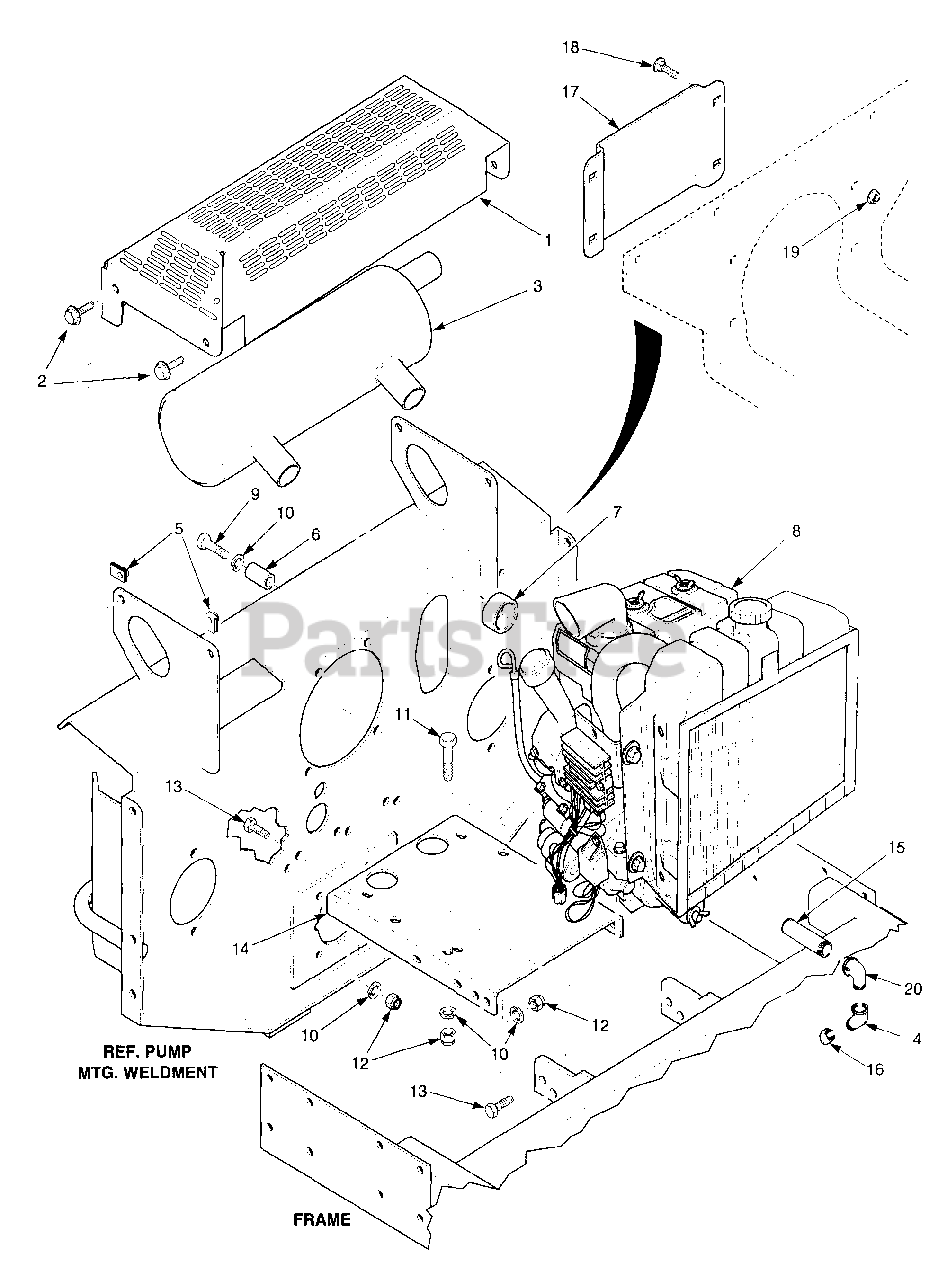

Engine And Attaching Parts - Kawasaki Parts Diagram

  • Title
1

Scag 422593

Muffler Guard
(Superseded to 424910)

$135.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Muffler, Part Of Engine

Note: (Available only through Kawasaki), Common hardware which should be purchased locally. All bolts Grade 5 plated, all other fasteners zinc plated.

$

$

Not available

4

Scag 04011-09

Screw, #10-16 x 1/2"

$0.99

$

In Stock, Qty 7

0

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

6

Scag 481584

Exhaust Elbow (Kawasaki)

$30.99

$

Usually ships in 2-12 days

0

7

Scag 43420

Spacer, Engine (Kawasaki)

$

$

Not available

8

Scag 481574

Engine, Kawasaki 22 KA

Note: (Available only through Kawasaki)

$

$

Currently unavailable

9

Scag 04002-03

Bolt, M8-1.25 x 25 Grade 8.8

$0.99

$

In Stock, only 1 left!

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

14

Scag 422396

Plate, Engine Mounting

$75.99

$

Usually ships in 2-12 days

0

15

Scag 48402-05

Extension, Oil Drain 4"

$8.49

$

Usually ships in 2-12 days

0

16

Scag 48257

Pipe Cap, Hex 3/8"

$2.49

$

In Stock, only 1 left!

0

17

Scag 422475

Rear Cover

$31.99

$

Usually ships in 2-12 days

0

18

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

20

Scag 48600-01

Street Elbow, 3/8" NPT

$12.99

$

Usually ships in 2-12 days

0

?21

Scag 43498

Spacer, Engine Bolt

$

$

Not available

?22

Scag 481730-01

Street Elbow, 45 Deg.-3/8" NPT

$20.99

$

Usually ships in 2-12 days

0
