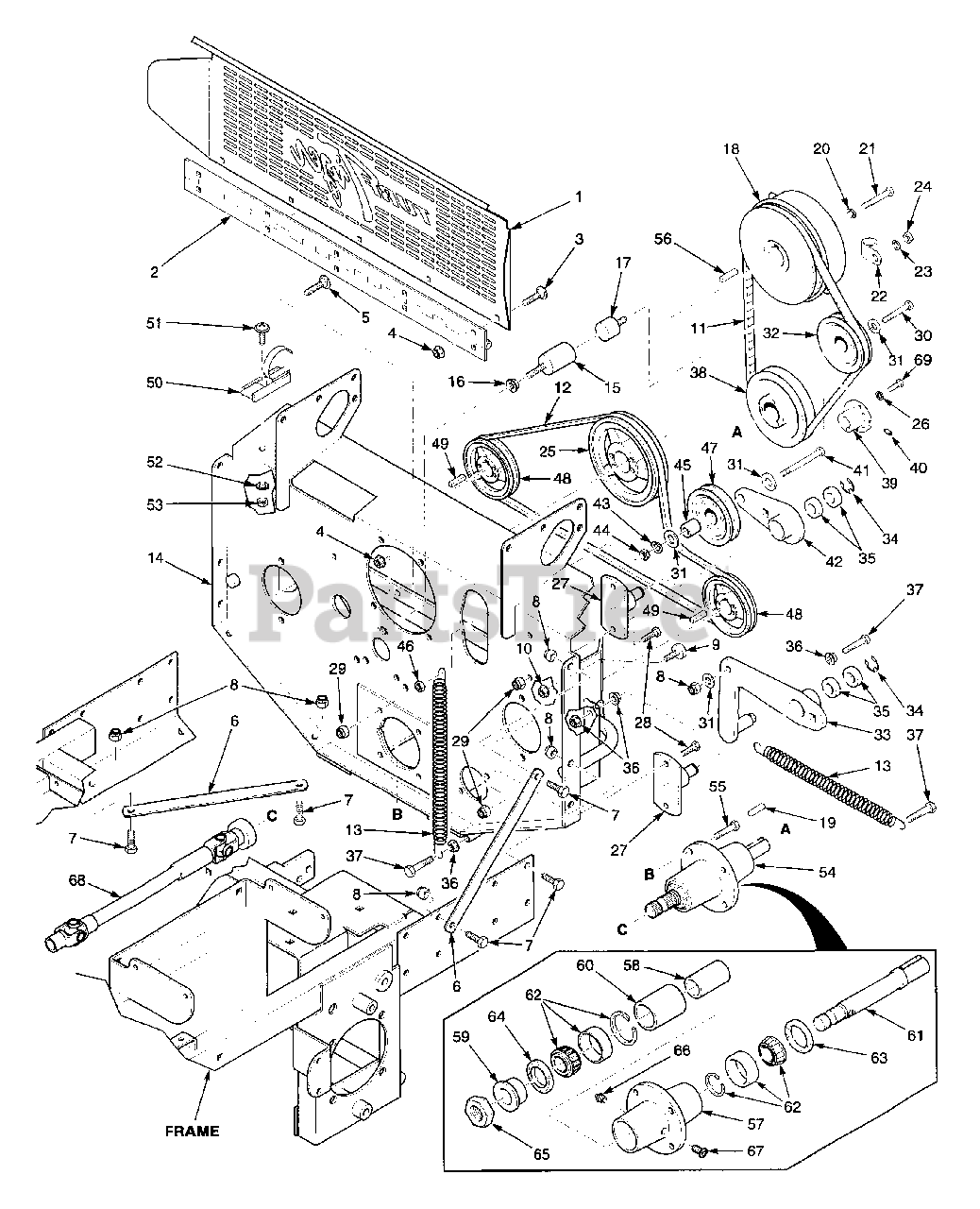

STT61-22CH - Scag Turf Tiger 61" Zero-Turn Mower, 22hp Kohler (SN: 3820001 - 3829999) Deck Drive Components Parts Diagram

Turf Tiger 61" Zero-Turn Mower, 22hp Kohler

Deck Drive Components Parts Diagram

  • Title

1

Scag 422447

Belt Guard
(Superseded to 422594)

$100.99

$

Usually ships in 2-12 days

0

2

Scag 481531

Hinge, Belt Guard

$30.99

$

In Stock, only 1 left!

0

3

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 9

0

4

Scag 04019-02

Nut, Hex Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

5

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

6

Scag 422386

Brace, Engine Mounting

$13.99

$

Usually ships in 2-12 days

0

7

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

8

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

10

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

11

Scag 481460

Belt, Deck Drive

$38.99

$

In Stock, only 1 left!

0

12

Scag 481461

Belt, Pump Drive

$32.99

$

Usually ships in 2-12 days

0

13

Scag 481522

Spring, Main Drive

$32.99

$

In Stock, only 1 left!

0

14

Scag 45913

Pump Mounting Weldment

$

$

Not available

15

Scag 43428

Base, Clutch Anti-Rotation

$45.99

$

Usually ships in 2-12 days

0

16

Scag 04019-05

Nut, Hex Serrated Flange 7/16-14

$0.99

$

In Stock, Qty 12

0

17

Scag 481469

Isolator, Rubber

$10.99

$

Usually ships in 2-12 days

0

18

Scag 481530

Electric Clutch
(Superseded to 461716)

$524.99

$

Usually ships in 2-12 days

0

19

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2"

$1.49

$

In Stock, only 2 left!

0

20

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

21

Scag 04001-101

Bolt, Hex Head 7/16-20 x 2-1/2"

$1.99

$

In Stock, only 3 left!

0

22

Scag 48030-09

Clamp, Cable 1/2" ID.

$1.49

$

In Stock, Qty 5

0

23

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04020-03

Nut, Hex 5/16-18

$0.99

$

In Stock, only 1 left!

0

25

Scag 481535

Pulley, 6.00 OD. 1.125 Bore

$81.99

$

Usually ships in 2-12 days

0

26

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

27

Scag 45916

Pivot Weldment, Idler

$63.99

$

Usually ships in 2-12 days

0

28

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4"

$0.99

$

In Stock, Qty 20+

0

31

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

32

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 11

0

33

Scag 461079

Idler Arm W/Bearings

Note: (Includes Item 35)

$123.99

$

Usually ships in 2-12 days

0

34

Scag 04050-01

Ring, Retaining

$0.99

$

In Stock, Qty 20+

0

35

Scag 48224

Ball Bearings

$12.99

$

In Stock, Qty 20+

0

36

Scag 04019-04

Nut, Hex Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

37

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

38

Scag 481398

Pulley, 6.35 Dia. Taper Bore

$117.99

$

Usually ships in 2-12 days

0

39

Scag 481536

Tapered Hub, 1.00 Bore

$58.99

$

Usually ships in 2-12 days

0

40

Scag 04012-05

Setscrew, Hex Socket 1/4-20 x 1/2"

$0.99

$

Usually ships in 2-12 days

0

41

Scag 04001-138

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 5

0

42

Scag 461091

Idler Arm Assembly

Note: (Includes item 35)

$108.99

$

In Stock, only 3 left!

0

43

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

44

Scag 04020-04

Nut, Hex 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 43277

Spacer

$6.49

$

In Stock, only 1 left!

0

46

Scag 04021-05

Locknut, Hex Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

47

Scag 48198

Pulley, Idler 5.00 Dia.
(Superseded to 483211)

$42.99

$

In Stock, only 1 left!

0

48

Scag 48586

Pulley
(Superseded to 482751)

$103.99

$

In Stock, only 1 left!

0

49

Scag 04063-14

Key, 5 x 5 x 25 mm

$0.99

$

In Stock, Qty 5

0

50

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

51

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

52

Scag 04031-01

Lockwasher, #10-32 External Tooth

$0.99

$

In Stock, Qty 20+

0

53

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

54

Scag 46977

Spindle Assembly
(Superseded to 461697)

Note: (Includes items 57 thru 67)

$319.99

$

In Stock, only 1 left!

0

55

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

56

Scag 04063-20

Key, 1/4 x 1/4 x 1"

$1.49

$

In Stock, Qty 5

0

57

Scag 43294

Spindle Housing
(Superseded to 43644)

$58.99

$

In Stock, only 2 left!

0

58

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

59

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

60

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

61

Scag 43321

Shaft, PTO Deck Drive

$

$

Not available

62

Scag 481022

Roller Bearing Assembly

$59.99

$

In Stock, Qty 15

0

63

Scag 481024

Seal, 2.00 OD. x 1.50 Bore

$4.99

$

In Stock, Qty 20+

0

64

Scag 481025

Seal, 2.00 OD. x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

65

Scag 481035

Nut, 1.06-18

$7.99

$

In Stock, only 3 left!

0

66

Scag 48114-04

Grease Fitting 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

67

Scag 48677

Relief Fitting

$

$

Not available

68

Scag 481528

Drive Shaft
(Superseded to 482424)

$612.99

$

In Stock, only 1 left!

0

69

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1-3/8" Full Thread

$2.49

$

In Stock, only 2 left!

0
