STT52V-29CH-EFI - Scag Turf Tiger 52" Zero-Turn Mower, 29hp Kohler (SN: H8900001 - H8999999) 52V Cutter Deck Parts Diagram

Turf Tiger 52" Zero-Turn Mower, 29hp Kohler

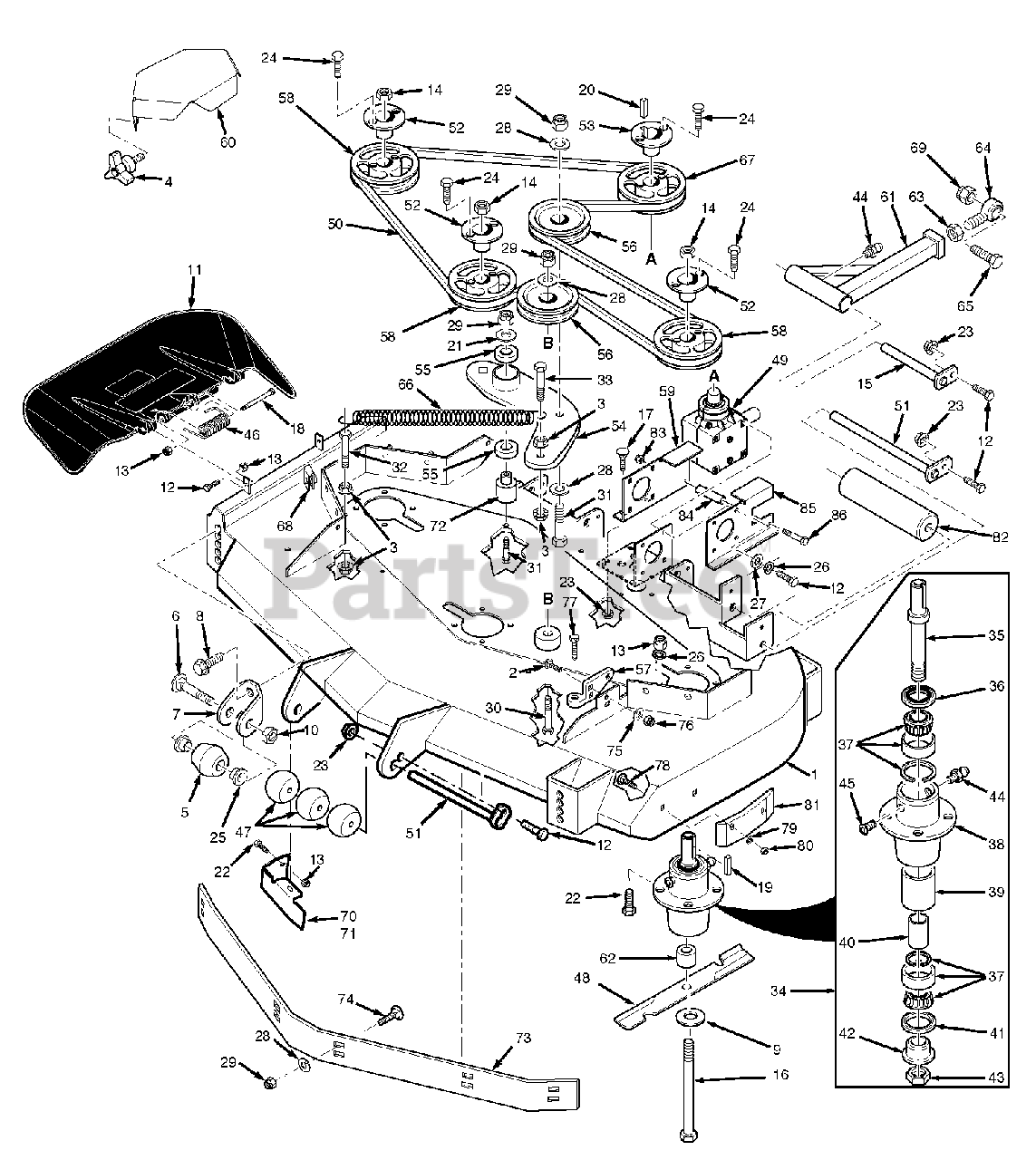

52V Cutter Deck Parts Diagram

  • Title

1

Scag 461859

Cutter Deck Velocity Plus

$1660.99

$

Usually ships in 2-12 days

0

2

Scag 04003-40

Bolt, Carriage 7/16-14 x 1-1/4"

$1.49

$

In Stock, Qty 6

0

3

Scag 04019-04

Nut, Hex Serr. Flng 3/8-16

$0.99

$

In Stock, Qty 20+

0

4

Scag 481625-01

Wing nut, 3/8-16

$2.99

$

In Stock, Qty 20+

0

5

Scag 481632

Anti-Scalp Wheel

$27.99

$

In Stock, Qty 20+

0

6

Scag 04003-26

Bolt, Carriage 3/8-16 x 4"

$1.99

$

In Stock, Qty 20+

0

7

Scag 422478

Anti-Scalp Wheel Bracket

$28.99

$

In Stock, Qty 20+

0

8

Scag 04017-27

Bolt, Hex Serr. Flng 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

9

Scag 04043-06

Flatwasher, 5/8" Hardened

$1.99

$

In Stock, Qty 20+

0

10

Scag 04021-05

Locknut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

11

Scag 461845

Discharge Chute Assembly

$68.99

$

In Stock, only 1 left!

0

11

Scag 462475

CA Discharge Chute, 52V

Note: California Models Only (not shown)

$162.99

$

Usually ships in 2-12 days

0

12

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-3/4" - Front

$0.99

$

In Stock, Qty 6

0

12

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Rear

$0.99

$

In Stock, Qty 20+

0

13

Scag 04021-22

Nut, Hex Elastic Stop 5/16-18 Grd 8

$0.99

$

In Stock, Qty 20+

0

14

Scag 04020-09

Nut, 5/8-11 UNC

$0.99

$

In Stock, Qty 20+

0

15

Scag 451240

Push Arm Shaft

$53.99

$

In Stock, Qty 20+

0

16

Scag 04001-41

Bolt, HH 5/8-11 x 9-1/2"

$15.99

$

In Stock, Qty 20+

0

17

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-108

Bolt, HH 5/16-18 x 4-1/2"

$2.49

$

In Stock, Qty 9

0

19

Scag 04063-08

Key, 1/4 x 1/4 x 2"

$1.49

$

In Stock, Qty 20+

0

20

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

21

Scag 04043-04

Flatwasher,3/8" (.39 x .938 x .105") HD

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-176

Bolt, HH 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

23

Scag 04019-03

Nut, Hex Serr. Flng 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-172

Bolt, HH 1/4-20 x 1" Grd 8

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-15

Bushing, .376" I.D. Oilite

$4.99

$

In Stock, Qty 20+

0

26

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04040-15

Flatwasher, 5/16" (.375 x .875 x .083")

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

Flatwasher, 3/8" (.391 x .938 x .105")

$0.99

$

In Stock, Qty 20+

0

29

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 04001-62

Bolt, HH 3/8-16 x 3-1/4"

$1.49

$

In Stock, Qty 15

0

31

Scag 04001-54

Bolt, HH 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

32

Scag 04001-20

Bolt, HH 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

33

Scag 04001-136

Bolt, HH 3/8-16 x 1-1/2" Grd 8

$0.99

$

In Stock, Qty 20+

0

34

Scag 461663

Spindle Assembly

$263.99

$

In Stock, Qty 20+

0

35

Scag 43589

Spindle Shaft

$59.99

$

In Stock, only 1 left!

0

36

Scag 481024

Seal, Top

$4.99

$

In Stock, Qty 20+

0

37

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

38

Scag 43644

Spindle Housing

$60.99

$

In Stock, only 2 left!

0

39

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

40

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

41

Scag 481025

Seal, Bottom

$4.99

$

In Stock, Qty 20+

0

42

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

43

Scag 481035

Nut, Special 1-1/16-18

$7.99

$

In Stock, only 3 left!

0

44

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

45

Scag 48677

Relief Fitting, Tapered Spindle

$9.49

$

Usually ships in 2-12 days

0

46

Scag 483378

Spring, Discharge Chute

$7.99

$

In Stock, only 4 left!

0

47

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

48

Scag 482878

Cutter Blade, 18"

$24.99

$

In Stock, Qty 20+

0

49

Scag 482486

Gearbox Assm, Deck Drive

$704.99

$

In Stock, only 1 left!

0

50

Scag 482281

Belt, Cutter Deck Drive

$70.99

$

In Stock, only 1 left!

0

51

Scag 45944

Roller Shaft

$22.99

$

In Stock, Qty 20+

0

52

Scag 48926

Tapered Hub, 1-1/8" Bore

$31.99

$

In Stock, Qty 20+

0

53

Scag 48141

Tapered Hub, 1" Bore

$30.99

$

In Stock, only 1 left!

0

54

Scag 461842

Idler Arm, Cutter Deck

$86.99

$

In Stock, only 1 left!

0

55

Scag 48224

Bearings, Ball

$13.99

$

In Stock, Qty 20+

0

56

Scag 483215

Pulley, Idler

$62.99

$

In Stock, Qty 20+

0

57

Scag 461929

Lever Assembly, Deck Level

Note: (Incl. 77)

$62.99

$

Usually ships in 2-12 days

0

58

Scag 482744

Pulley, 5.75" O.D. (52")

$30.99

$

In Stock, only 1 left!

0

59

Scag 424798

Mounting Plate, RH Gearbox
(Superseded to 428027)

$24.99

$

Usually ships in 2-12 days

0

60

Scag 425635

Belt, Cover (52)

$63.99

$

Usually ships in 2-12 days

0

61

Scag 461516

Pusharm

Note: (includes items 44, 63 & 64)

$216.99

$

In Stock, only 2 left!

0

62

Scag 43590

Spacer, Spindle Bottom

$17.99

$

In Stock, Qty 20+

0

63

Scag 04020-16

Nut, Hex Head 5/8-18 UNF

$0.99

$

In Stock, Qty 11

0

64

Scag 48763

Rod End, 5/8" Male RH Thrd

$59.99

$

In Stock, Qty 6

0

65

Scag 04001-79

Bolt, Hex Head 5/8-11 x 4-1/2"

$4.99

$

In Stock, Qty 10

0

66

Scag 483704

Spring, Cutter Deck

$29.99

$

In Stock, Qty 20+

0

67

Scag 482747

Pulley, 6.95" O.D.

$36.99

$

In Stock, only 1 left!

0

68

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

69

Scag 04021-13

Nut, Hex Elastic Stop 5/8-11

$1.49

$

In Stock, Qty 20+

0

70

Scag 424208

Discharge Baffle 52V
(Superseded to 424677)

Note: California Models Only (not shown)

$32.99

$

In Stock, only 1 left!

0

71

Scag 424211

Turbo Baffle, 52V

$72.99

$

Usually ships in 2-12 days

0

72

Scag 43681

Pivot, Idler

$24.99

$

In Stock, only 3 left!

0

73

Scag 424840

Baffle, Custom Cut 52V

$103.99

$

Usually ships in 2-12 days

0

74

Scag 04003-23

Bolt, Carriage 3/8-16 x 1"

$1.49

$

In Stock, Qty 20+

0

75

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

76

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

77

Scag 483167

Bolt, Deck Adjust

$17.99

$

Usually ships in 2-12 days

0

78

Scag 04003-12

Bolt, Carraige 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

79

Scag 04040-04

Flatwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

80

Scag 04021-04

Nut, Center Lock 5/16-18

$0.99

$

In Stock, Qty 20+

0

81

Scag 483176

Wear Pad

$34.99

$

In Stock, Qty 20+

0

82

Scag 48038

Wheel, Anti-Scalp

$29.99

$

In Stock, only 2 left!

0

83

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

84

Scag 43763

Spacer, Gearbox Mount

$14.99

$

In Stock, only 3 left!

0

85

Scag 424799

Mounting Plate, LH Gearbox
(Superseded to 428026)

$25.99

$

In Stock, only 1 left!

0

86

Scag 04001-154

Bolt, HH 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+
