STT52V-25CH-LP - Scag Turf Tiger 52" Zero-Turn Mower, 25hp Kohler Propane (SN: F5300001 - F5399999) STT Suspension Seat Parts Diagram

Turf Tiger 52" Zero-Turn Mower, 25hp Kohler Propane

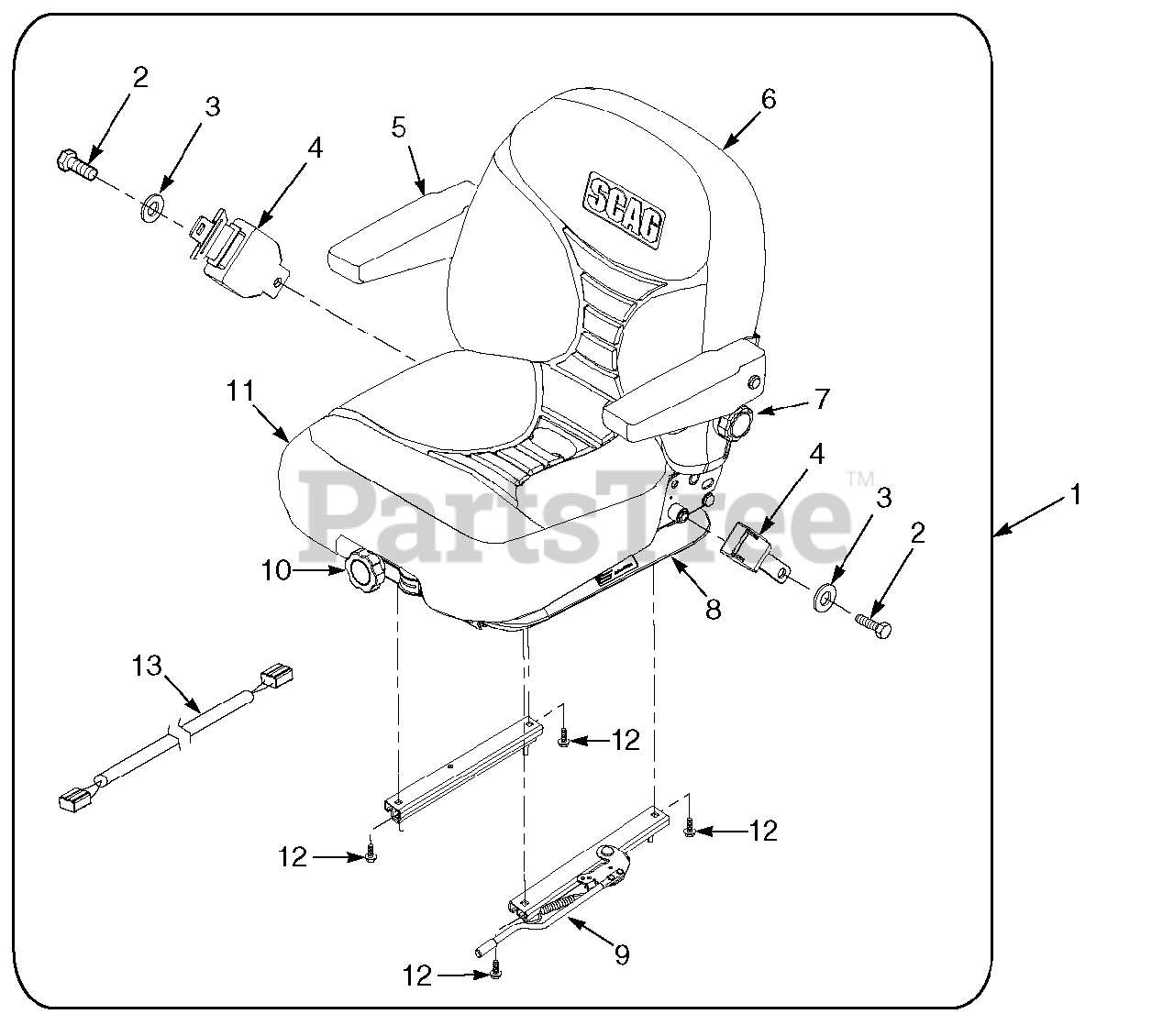

STT Suspension Seat Parts Diagram

  • Title

1

Scag 9292

Suspension Seat Assembly w/seat belt

$1057.99

$

Usually ships in 2-12 days

0

2

Scag 04001-178

Bolt, Hex Head 7/16-20 x 1"

$1.99

$

In Stock, Qty 12

0

3

Scag 04040-11

Flatwasher, 7/16-.500 x 1.25 x .083

$0.99

$

In Stock, Qty 13

0

4

Scag 483594

Retractable Seat Belt

$200.99

$

Usually ships in 2-12 days

0

5

Scag 482950

Armrest Only

$48.99

$

Usually ships in 2-12 days

0

Scag 482945

Armrest Assembly Kit, LH

$264.99

$

Usually ships in 2-12 days

0

Scag 482946

Armrest Assembly Kit, RH

$285.99

$

In Stock, only 1 left!

0

6

Scag 482940

Back Cushion Kit

$379.99

$

Usually ships in 2-12 days

0

7

Scag 482943

Lumbar Kit

$202.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

8

Scag 482942

Shock Absorber Kit

$181.99

$

Usually ships in 2-12 days

0

9

Scag 482952

Seat Adjustment, Track Set

$233.99

$

Usually ships in 2-12 days

0

10

Scag 482944

Weight Adjustment Kit

$207.99

$

Usually ships in 2-12 days

0

Scag 482948

Knob Kit

$38.99

$

Usually ships in 2-12 days

0

11

Scag 482941

Seat Cushion Kit Seat Drain Kit

Note: (Included with Seat Cushion)

$385.99

$

Usually ships in 2-12 days

0

12

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

13

Scag 483440

Wire Harness Adapter

$37.99

$

Usually ships in 2-12 days

0
