STT52A-23KA - Scag Turf Tiger 52" Zero-Turn Mower, 23hp Kawasaki (SN: 8480001 - 8489999) Electrical System (23HP & 27HP Kawasaki) Parts Diagram

Turf Tiger 52" Zero-Turn Mower, 23hp Kawasaki

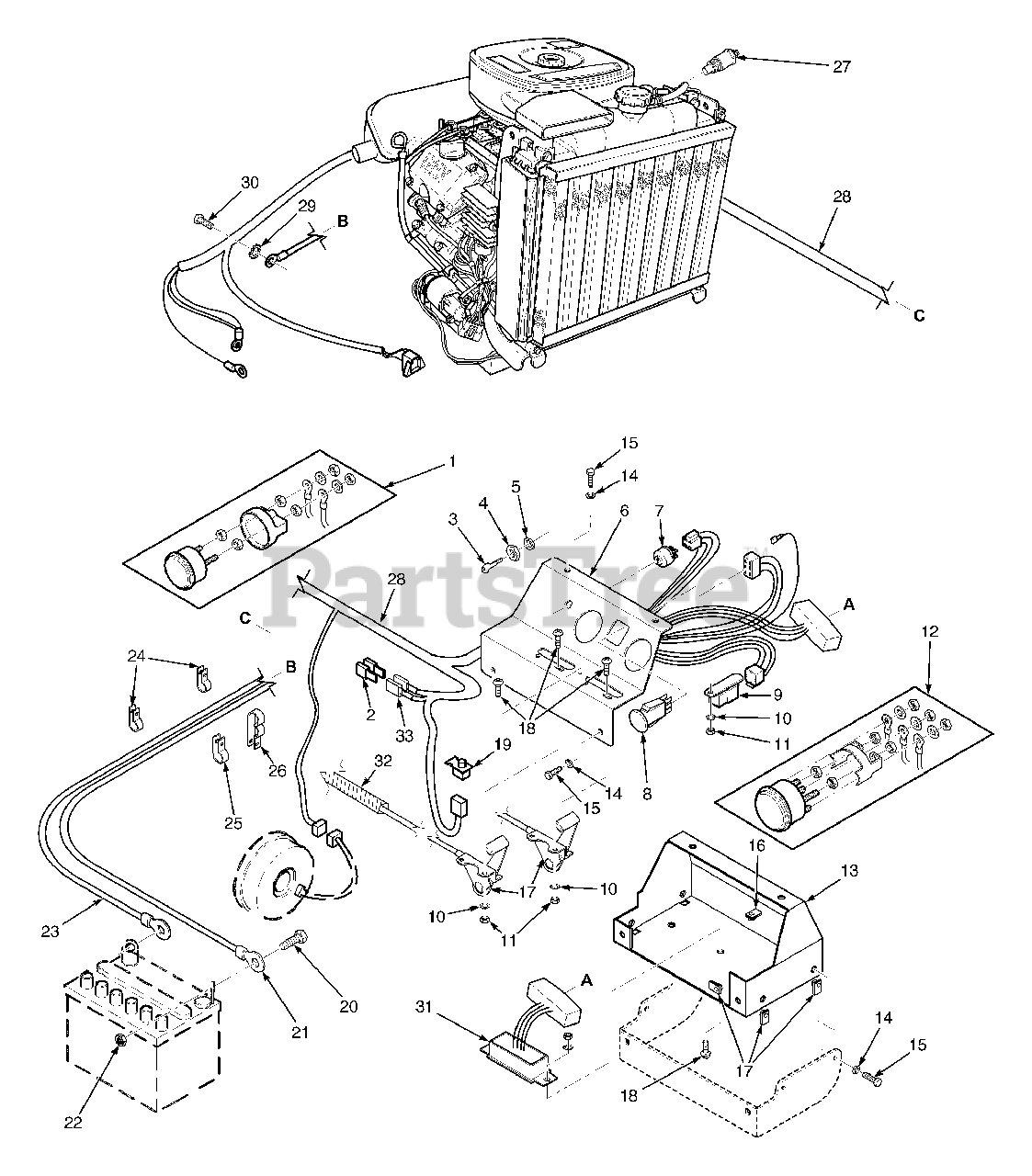

Electrical System (23HP & 27HP Kawasaki) Parts Diagram

  • Title

1

Scag 481755

Ammeter
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

2

Scag 48298

Fuse, 20 AMP

$3.99

$

Usually ships in 2-12 days

0

3

Scag 48017-02

Key & Ring Assembly

$3.99

$

In Stock, Qty 9

0

4

Scag 48017-04

Nut, Hex 5/8-32

$1.49

$

In Stock, Qty 5

0

5

Scag 48017-03

Lockwasher, 5/8" Internal

$0.99

$

In Stock, Qty 6

0

6

Scag 423526

Instrument Panel, Top w/Decals
(Superseded to 462336)

$89.99

$

Usually ships in 2-12 days

0

7

Scag 48798

Key Switch

$27.99

$

In Stock, Qty 20+

0

8

Scag 481687

Switch, PTO
(Superseded to 483957)

$37.99

$

In Stock, Qty 20+

0

9

Scag 48788

Relay

$28.99

$

In Stock, only 2 left!

0

10

Scag 04031-01

Lockwasher, #10 External Tooth

$0.99

$

In Stock, Qty 20+

0

11

Scag 04020-01

Nut, Hex #10-32

$8.99

$

In Stock, Qty 20+

0

12

Scag 481183

Water Temp. Gauge (STT - KA Only)

$136.99

$

Usually ships in 2-12 days

0

13

Scag 451081

Base, Instrument Panel
(Superseded to 451879)

$112.99

$

Usually ships in 2-12 days

0

14

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

16

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

17

Scag 481662

Throttle And Choke Controls

$35.99

$

In Stock, only 3 left!

0

18

Scag 04010-01

Screw, Phillips Washer Head #10-32 x 1/2"

$0.99

$

In Stock, Qty 20+

0

19

Scag 481638

Switch, Interlock-Seat

$15.99

$

In Stock, Qty 20+

0

20

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

21

Scag 48029-06

Cable, Battery - Red

$12.99

$

Usually ships in 2-12 days

0

22

Scag 04020-02

Nut, Hex 1/4-20

$0.99

$

In Stock, Qty 10

0

23

Scag 48029-11

Cable, Battery - Black

$14.99

$

In Stock, only 1 left!

0

24

Scag 48030-09

Clamp, Cable 1/2" ID.

$1.49

$

In Stock, Qty 5

0

25

Scag 48030-10

Clamp, Cable 3/4" ID.

$0.99

$

Usually ships in 2-12 days

0

26

Scag 48030-11

Clamp, Cable

$2.49

$

Usually ships in 2-12 days

0

27

Scag 481670

Sending Unit, Water Temp.

$95.99

$

Usually ships in 2-12 days

0

28

Scag 482657

Wire Harness, STT Liquid Cooled

$

$

Not available

29

Scag 04031-03

Lockwasher, 5/16" External Tooth

$0.99

$

Usually ships in 2-12 days

0

30

Scag 04002-12

Bolt, Hex Head M8-1.25 x 20

$0.99

$

In Stock, Qty 9

0

31

Scag 482313

Electronic Module
(Superseded to 483599)

$133.99

$

In Stock, Qty 20+

0

32

Scag 481945-01

Heatshield, Flexible
(Superseded to 481945)

$0.99

$

Usually ships in 2-12 days

0

33

Scag 48430

Fuse Holder w/Fuse and Connector

$14.99

$

In Stock, only 1 left!

0

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0
