STT52A-23KA - Scag Turf Tiger 52" Zero-Turn Mower, 23hp Kawasaki (SN: 7700001 - 7709999) Electrical Schematic (23HP &27HP Kawasaki) Parts Diagram

Turf Tiger 52" Zero-Turn Mower, 23hp Kawasaki

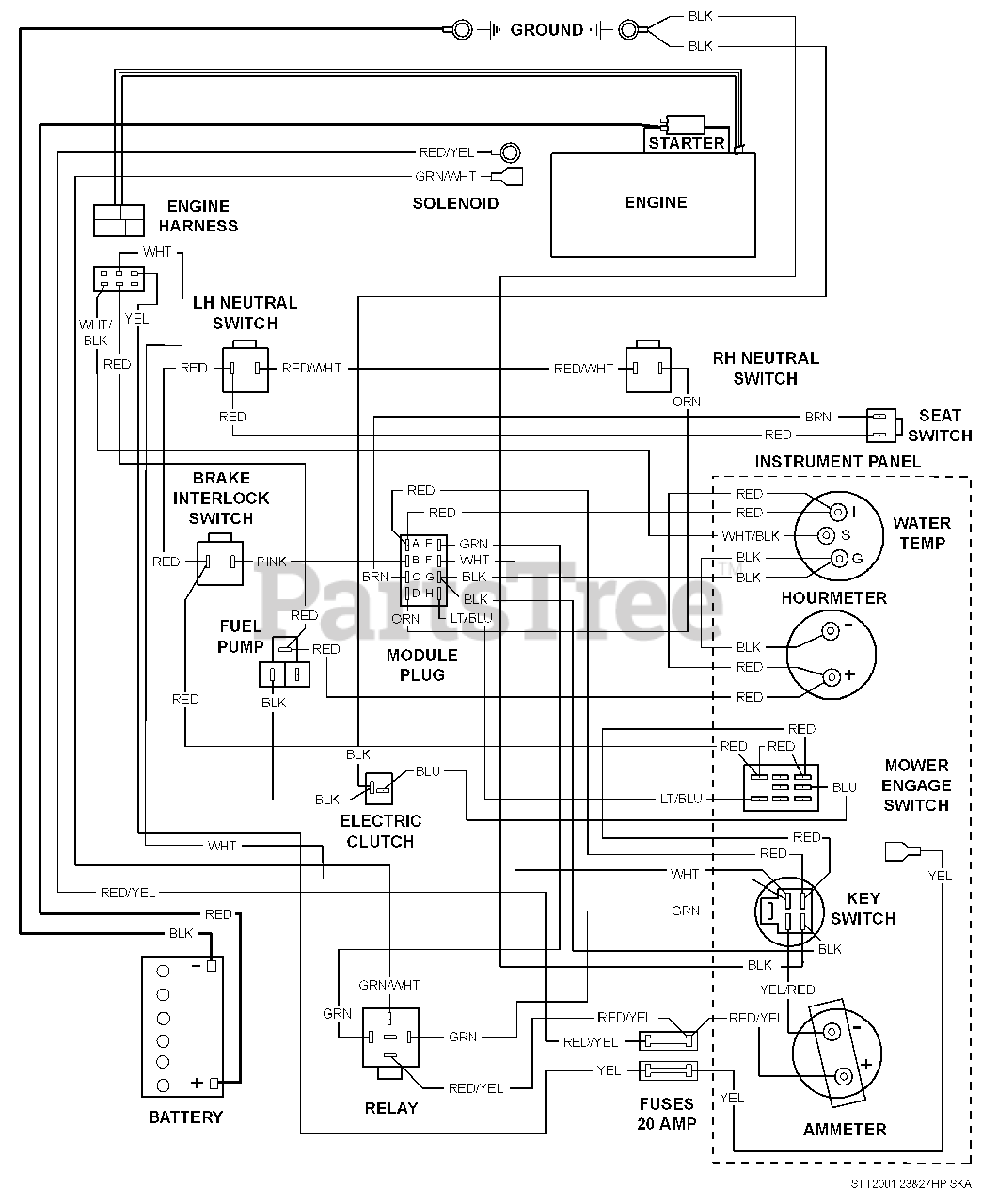

Electrical Schematic (23HP &27HP Kawasaki) Parts Diagram

  • Title

No Parts List Information Available

$

$

Not available
