STT52-22CH - Scag Turf Tiger 52" Zero-Turn Mower, 22hp Kohler (SN: 4260001 - 4269999) Hydraulic Pump Assembly Parts Diagram

Turf Tiger 52" Zero-Turn Mower, 22hp Kohler

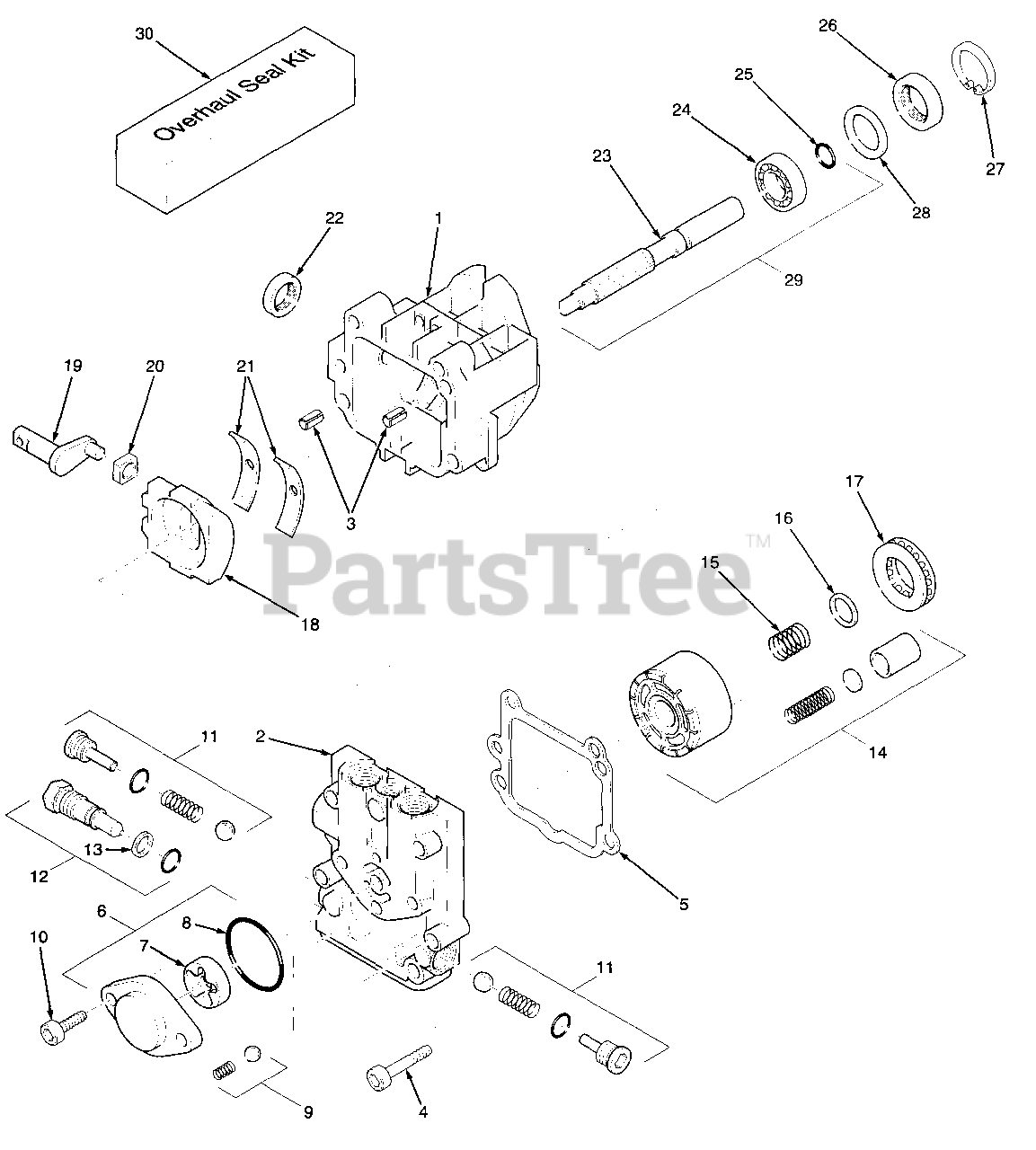

Hydraulic Pump Assembly Parts Diagram

  • Title

1

Scag 2513017

Housing Kit

Note: (Includes Housing, Journal Bearing)

$

$

Currently unavailable

2

Scag 2513016

End Cap

$

$

Currently unavailable

3

Scag 9004800-2506

Straight Headless Pin

$

$

Not available

4

Scag 9007314-0810

Socket Head Screw

$

$

Currently unavailable

5

Scag 2003067

End Cap Gasket

$

$

Currently unavailable

6

Scag 2513027

Charge Pump Kit

Note: (Includes Charge Cover, Gerotor Assy., O-Ring)

$

$

Currently unavailable

7

Scag 50273

Gerotor Assembly

$

$

Currently unavailable

8

Scag 9004101-1340

O-Ring

$

$

Currently unavailable

9

Scag 2510011

Charge Relief Valve Kit

$

$

Currently unavailable

10

Scag 50095

Socket Head Screw

$

$

Currently unavailable

11

Scag 2510027

Check Valve Kit

Note: (Includes Check Plug, Spring, O-Ring, Orifice Check Valve)

$

$

Currently unavailable

12

Scag 2513030

Bypass Valve Kit

Note: (Includes Bypass Valve, O-Ring, Back-up Ring)

$

$

Currently unavailable

13

Scag 9006110-0120

Backup Ring

$

$

Currently unavailable

14

Scag 70079

Cylinder Block Kit

$

$

Currently unavailable

15

Scag 2003014

Block Spring

$

$

Currently unavailable

16

Scag 2003017

Block Thrust Washer

$

$

Currently unavailable

17

Scag 2003044

Roller Thrust Bearing

$

$

Currently unavailable

18

Scag 2003087

Swash Plate

$

$

Currently unavailable

19

Scag 2003005

Trunnion Arm

$

$

Currently unavailable

20

Scag 2000015

Guide Slot

$

$

Currently unavailable

21

Scag 2003023

Cradle Bearing

$

$

Currently unavailable

22

Scag 9008000-0126

Lip Seal

$

$

Currently unavailable

23

Scag 2003020

Pump Shaft

$

$

Currently unavailable

24

Scag 2003043

Ball Bearing

$

$

Currently unavailable

25

Scag 2003016

Retaining Ring

$

$

Currently unavailable

26

Scag 9008000-0128

Lip Seal

$

$

Currently unavailable

27

Scag 2003052

Retaining Ring

$

$

Currently unavailable

28

Scag 2003018

Spacer

$

$

Currently unavailable

29

Scag 2513038

Shaft Kit

Note: (Includes Pump Shaft, Ball Bearing, Retaining Ring)

$

$

Currently unavailable

30

Scag 2513018

Overhaul Seal Kit

Note: (Includes Gasket, Trunnion Seal, Input Shaft Seal, Charge Pump O-Ring)

$

$

Currently unavailable
