STT-OCDC-52V (921B) - Scag Operator Controlled Discharge Chute STC-OCDC-48V/52V/61V (p/n 920M, 920P, 920R) & STT-52V/61V (p/n 921B, 921C) Parts Diagram

Operator Controlled Discharge Chute

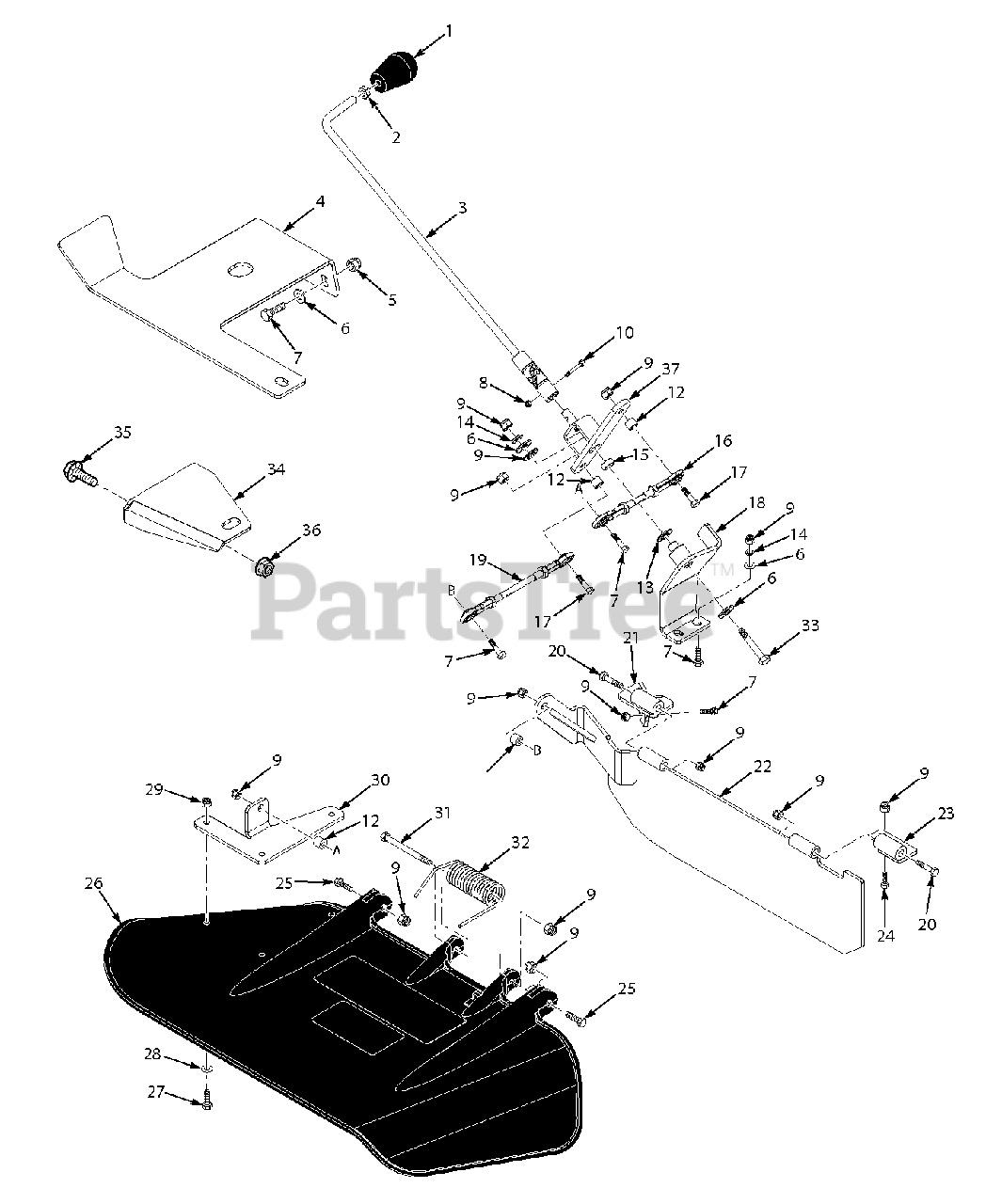

STC-OCDC-48V/52V/61V (p/n 920M, 920P, 920R) & STT-52V/61V (p/n 921B, 921C) Parts Diagram

  • Title

1

Scag 484093

Knob, Soft Touch

$12.99

$

Usually ships in 2-12 days

0

2

Scag 04020-12

Nut, 3/8-16 UNC Jam

$0.99

$

In Stock, only 3 left!

0

3

Scag 452135

Lever Weldment, OCDC

$157.99

$

Usually ships in 2-12 days

0

4

Scag 425371

Bracket, Lever Support

Note: (48V & 52V)

$95.99

$

Usually ships in 2-12 days

0

4

Scag 425429

Bracket, Lever Support

Note: (61V)

$102.99

$

Usually ships in 2-12 days

0

5

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

6

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

7

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04021-17

Nut, Elastic Stop #8-32

$0.99

$

In Stock, Qty 5

0

9

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 04015-20

Capscrew, Socket Head #8-32 x 1-1/4"

$6.49

$

Usually ships in 2-12 days

0

11

Scag 452132

Pivot Arm Weldment

$39.99

$

Usually ships in 2-12 days

0

12

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

13

Scag 04045-01

Washer, Thrust 1/2" ID

$0.99

$

Usually ships in 2-12 days

0

14

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

15

Scag 483453-20

Bearing

$5.99

$

Usually ships in 2-12 days

0

16

Scag 484121

Linkage Assembly

Note: 48V

$60.99

$

Usually ships in 2-12 days

0

16

Scag 484131

Linkage Assembly

Note: STC/STWC52V

$51.99

$

Usually ships in 2-12 days

0

16

Scag 484002

Linkage Assembly

Note: STT52V

$93.99

$

Usually ships in 2-12 days

0

16

Scag 483990

Linkage Assembly

Note: STC/STWC61V

$78.99

$

Usually ships in 2-12 days

0

16

Scag 484119

Linkage Assembly

Note: STT61V

$60.99

$

Usually ships in 2-12 days

0

17

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

18

Scag 452134

Pivot Weldment

Note: (48V & 52V)

$39.99

$

Usually ships in 2-12 days

0

18

Scag 452156

Pivot Weldment

Note: (STC/STWC61V)

$35.99

$

Usually ships in 2-12 days

0

18

Scag 452173

Pivot Weldment

Note: (STT61V)

$35.99

$

Usually ships in 2-12 days

0

19

Scag 484119

Linkage Assembly

Note: 48V

$60.99

$

Usually ships in 2-12 days

0

19

Scag 484129

Linkage Assembly

Note: STC/STWC52V

$60.99

$

Usually ships in 2-12 days

0

19

Scag 483990

Linkage Assembly

Note: STT52V

$78.99

$

Usually ships in 2-12 days

0

19

Scag 483989

Linkage Assembly

Note: 61V

$78.99

$

Usually ships in 2-12 days

0

19

Scag 484119

Linkage Assembly

Note: STT61V

$60.99

$

Usually ships in 2-12 days

0

20

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

21

Scag 452082

Hinge Weldment, Rear

Note: (48V)

$25.99

$

Usually ships in 2-12 days

0

21

Scag 452079

Hinge Weldment, Rear

Note: (52V & 61V)

$60.99

$

Usually ships in 2-12 days

0

22

Scag 452083

Block-Off Plate Weldment

Note: 48V

$109.99

$

Usually ships in 2-12 days

0

22

Scag 452084

Block-Off Plate Weldment

Note: 52V

$139.99

$

Usually ships in 2-12 days

0

22

Scag 452080

Block-Off Plate Weldment

Note: 61V

$127.99

$

Usually ships in 2-12 days

0

22

Scag 452078

Hinge Weldment, Front

$22.99

$

Usually ships in 2-12 days

0

23

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 462242

Discharge Chute Assy.,

Note: 48V (incl. #9, 27, 28, 29, 30, 31, 32)

$

$

Currently unavailable

26

Scag 462249

Discharge Chute Assy.,
(Superseded to 462897)

Note: 52V (incl. #9, 27, 28, 29, 30, 31, 32)

$150.99

$

Usually ships in 2-12 days

0

26

Scag 462250

Discharge Chute Assy.,
(Superseded to 462899)

Note: 61V (incl. #9, 27, 28, 29, 30, 31, 32)

$213.99

$

Usually ships in 2-12 days

0

27

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

28

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

29

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

30

Scag 425372

Plate, Discharge Chute

Note: 48V

$

$

Currently unavailable

30

Scag 425427

Plate, Discharge Chute

Note: 52V

$21.99

$

Usually ships in 2-12 days

0

30

Scag 425131

Plate, Discharge Chute

Note: 61V

$23.99

$

Usually ships in 2-12 days

0

31

Scag 04001-154

Bolt, Hex Head 5/16-18 x 4-3/4"

$2.99

$

In Stock, Qty 20+

0

32

Scag 484124

Spring, Discharge Chute

$10.99

$

Usually ships in 2-12 days

0

33

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

34

Scag 425481

Guide Bracket, OCDC Lever - STT

$26.99

$

Usually ships in 2-12 days

0

35

Scag 04017-16

Bolt, 5/16-18 x 3/4" Serrated Flange

$0.99

$

In Stock, Qty 10

0

36

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

37

Scag 452132

Pivot Arm Weldment

$39.99

$

Usually ships in 2-12 days

0
