STT-OCDC-52V (920N) - Scag Operator Controlled Discharge Chute STT-OCDC-52V (p/n 920N) & STT-61V (p/n 920L) Parts Diagram

Operator Controlled Discharge Chute

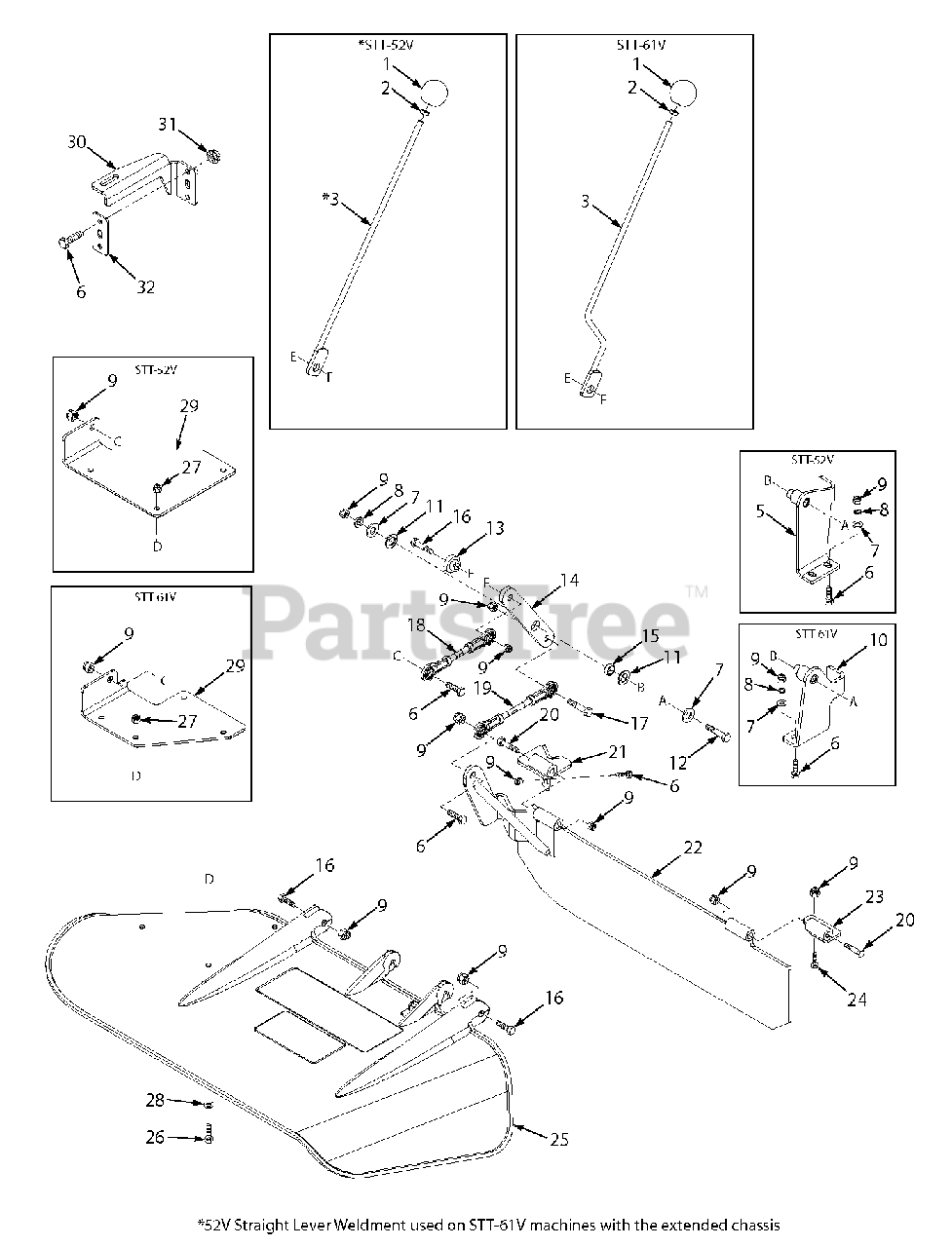

STT-OCDC-52V (p/n 920N) & STT-61V (p/n 920L) Parts Diagram

  • Title

1

Scag 484010

Knob, OCDC Lever

$11.99

$

Usually ships in 2-12 days

0

2

Scag 04020-12

Nut, 3/8-16 Jam

$0.99

$

In Stock, only 3 left!

0

3

Scag 452088

Lever Weldment, OCDC - Straight

Note: (52V)

$55.99

$

Usually ships in 2-12 days

0

4

Scag 452073

Lever Weldment, OCDC - Curved

Note: (61V)

$88.99

$

Usually ships in 2-12 days

0

5

Scag 452089

Pivot Weldment

Note: 52V

$

$

Not available

6

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

7

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-03

Lockwasher, 5/16" Spring

$0.99

$

In Stock, Qty 20+

0

9

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 452077

Pivot Weldment, 61V

$29.99

$

Usually ships in 2-12 days

0

11

Scag 04045-01

Washer, Thrust

$0.99

$

Usually ships in 2-12 days

0

12

Scag 04001-17

Bolt, Hex Head 5/16-18 x 2"

$0.99

$

In Stock, Qty 6

0

13

Scag 43086

Bushing

$5.99

$

Usually ships in 2-12 days

0

14

Scag 425163

Plate, Pivot Arm

$58.99

$

Usually ships in 2-12 days

0

15

Scag 483453-20

Bearing

$5.99

$

Usually ships in 2-12 days

0

16

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

18

Scag 484002

Linkage Assembly, Discharge Chute

Note: 52V

$93.99

$

Usually ships in 2-12 days

0

18

Scag 483990

Linkage Assembly, Discharge Chute

Note: 61V

$78.99

$

Usually ships in 2-12 days

0

19

Scag 484001

Linkage Assemlby, Block-Off Plate

Note: 52V

$60.99

$

In Stock, only 1 left!

0

19

Scag 483989

Linkage Assembly, Block-Off Plate

Note: 61V

$78.99

$

Usually ships in 2-12 days

0

20

Scag 04001-63

Bolt, Hex Head 5/16-18 x 3-1/2"

$1.49

$

Usually ships in 2-12 days

0

21

Scag 452079

Hinge Weldment, Rear

$60.99

$

Usually ships in 2-12 days

0

22

Scag 452084

Block-Off Plate Weldment,

Note: 52V

$139.99

$

Usually ships in 2-12 days

0

22

Scag 452080

Block-Off Plate Weldment

Note: 61V

$127.99

$

Usually ships in 2-12 days

0

23

Scag 452078

Hinge Weldment, Front

$22.99

$

Usually ships in 2-12 days

0

24

Scag 04001-08

Bolt, Head Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

25

Scag 462198

Discharge Chute Assembly
(Superseded to 462898)

Note: 52V (incl. #26, 27, 28, 29)

$142.99

$

Usually ships in 2-12 days

0

25

Scag 462193

Discharge Chute Assembly

Note: 61V (incl. #26, 27, 28, 29)

$161.99

$

Usually ships in 2-12 days

0

26

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

27

Scag 04021-08

Nut, Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 9

0

28

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

29

Scag 425189

Plate, Discharge Chute

Note: 52V

$13.99

$

Usually ships in 2-12 days

0

29

Scag 425131

Plate, Discharge Chute

Note: 61V

$23.99

$

Usually ships in 2-12 days

0

30

Scag 425130

Bracket, OCDC Lever

$25.99

$

Usually ships in 2-12 days

0

31

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

32

Scag 424148

Bracket, Mount

$13.99

$

Usually ships in 2-12 days

0
