STT-35BV-SS - Scag Turf Tiger Zero-Turn Mower, 35hp Vanguard (SN: D8200001 - D8299999) Engine & Attaching Parts - 35HP Briggs & Stratton Parts Diagram

Turf Tiger Zero-Turn Mower, 35hp Vanguard

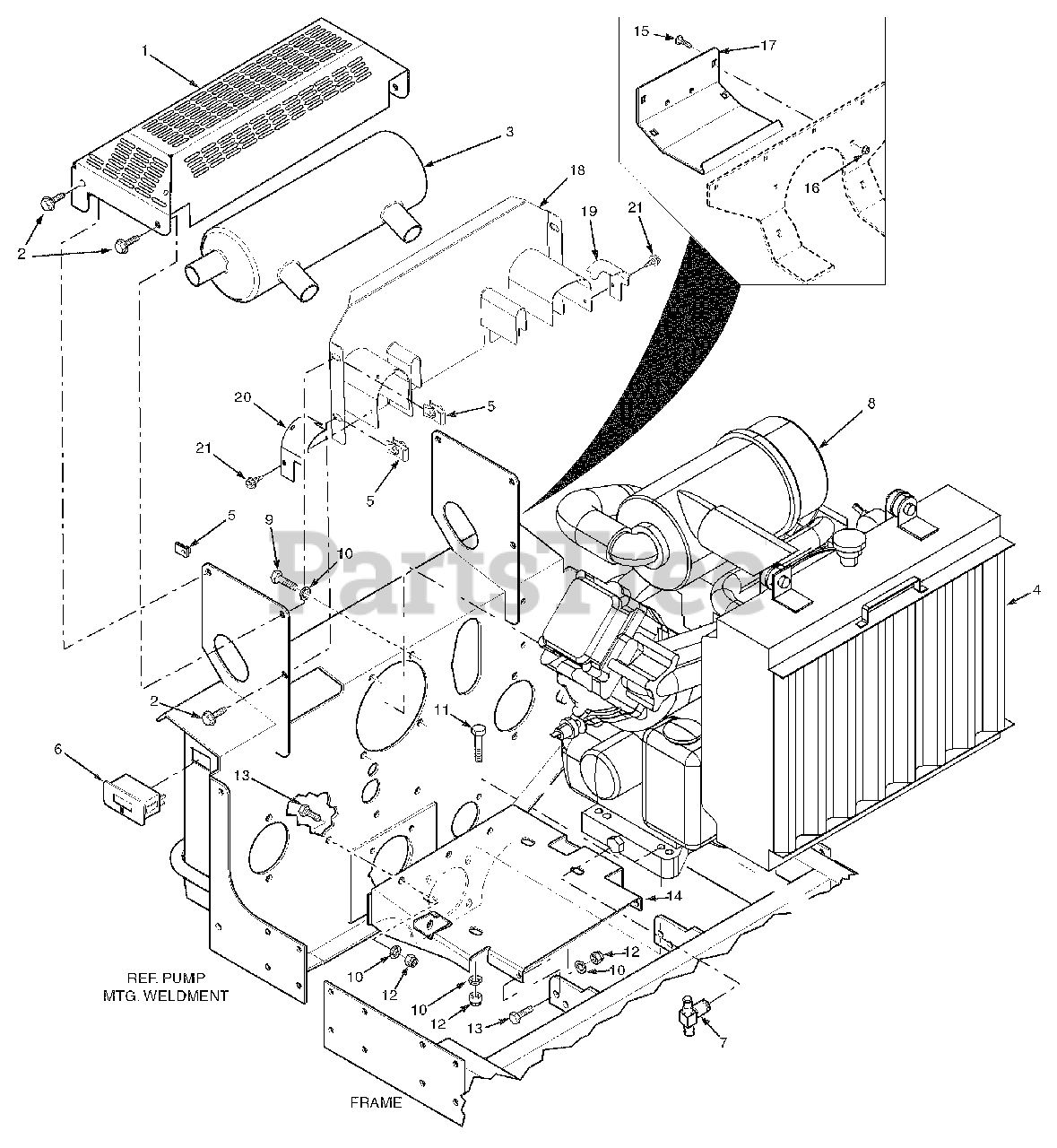

Engine & Attaching Parts - 35HP Briggs & Stratton Parts Diagram

  • Title

1

Scag 422593

Muffler Guard
(Superseded to 424910)

Note: (35BV, Briggs & Stratton)

$168.99

$

Usually ships in 2-12 days

0

2

Scag 04017-05

Screw, Hex Serrated Flange 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

3

Scag 482860

Muffler, Briggs & Stratton
(Superseded to 462170)

$364.99

$

Usually ships in 2-12 days

0

4

Screen Weldment, Radiator

Note: (Avail. only through B & S)

$

$

Not available

5

Scag 04110-01

U-Nut, 1/4-20

$1.49

$

In Stock, Qty 18

0

6

Scag 483355

Hour Meter
(Superseded to 484565)

$63.99

$

In Stock, only 1 left!

0

7

Scag 483017

Oil Drain

Note: (BV Only)

$48.99

$

In Stock, only 2 left!

0

8

Scag 483045

Engine, Briggs & Stratton 35HP V-Twin Liquid Cooled

Note: (Avail. only through B & S)

$

$

Currently unavailable

9

Scag 04002-18

Bolt, M10-1.50 x 25 Grade 8.8

$0.99

$

Usually ships in 2-12 days

0

10

Scag 04030-04

Lockwasher, 3/8" Spring

$0.99

$

In Stock, Qty 8

0

11

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04021-09

Nut, Hex Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

14

Scag 451454

Plate, Engine Mounting

$241.99

$

Usually ships in 2-12 days

0

15

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

16

Scag 04019-03

Nut, Hex Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 424691

Rear Cover

$58.99

$

Usually ships in 2-12 days

0

18

Scag 451949

Heatshield Weldment, Muffler

$

$

Not available

19

Scag 424805

Heatshield Ext., LH
(Superseded to 425029)

$126.99

$

Usually ships in 2-12 days

0

20

Scag 424804

Heatshield Ext., RH

$

$

Not available

21

Scag 04011-15

Screw, #10 x 1/2" Self Tap

$0.99

$

Usually ships in 2-12 days

0
