STT-31BSG - Scag Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton (SN: 7790001 - 8589999) Radiator, Coolers & Engine Brackets Parts Diagram

Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton

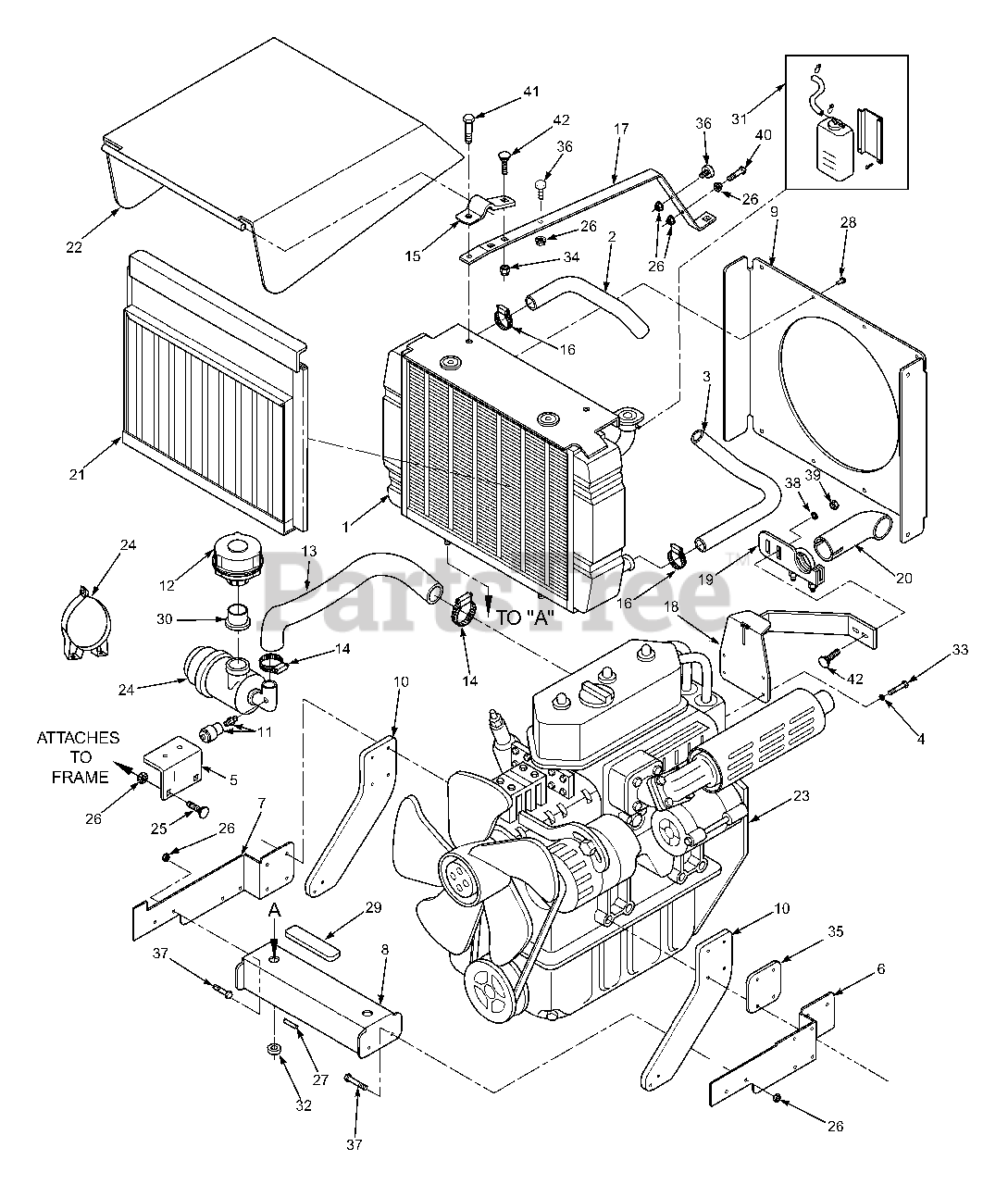

Radiator, Coolers & Engine Brackets Parts Diagram

  • Title

1

Scag 481810

Radiator

$

$

Not available

2

Scag 481742

Hose, Upper Radiator

$40.99

$

Usually ships in 2-12 days

0

3

Scag 481743

Hose, Lower Radiator

$41.99

$

Usually ships in 2-12 days

0

4

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

5

Scag 423628

Bracket, Air Cleaner

$

$

Not available

6

Scag 423539

Bracket, Engine Mounting LH

$

$

Not available

7

Scag 423540

Bracket, Engine Mounting RH

$

$

Not available

8

Scag 422702

Bracket, Radiator Mounting

$15.99

$

Usually ships in 2-12 days

0

9

Scag 422704

Shroud, Radiator

$87.99

$

Usually ships in 2-12 days

0

10

Scag 422696

Plate, Engine Mounting

$

$

Not available

11

Scag 481818

Indicator, Air Cleaner

$117.99

$

Usually ships in 2-12 days

0

12

Scag 481816

Pre-Cleaner, Engine Air

Note: (incl. item 30)

$125.99

$

Usually ships in 2-12 days

0

13

Scag 482522

Hose, Air Intake

$80.99

$

Usually ships in 2-12 days

0

14

Scag 48136-09

Clamp, Hose (2.25" Dia.)

$16.99

$

Usually ships in 2-12 days

0

15

Scag 422703

Hinge, Hood

$

$

Not available

16

Scag 48136-12

Clamp, Hose (1.50" Dia.)

$12.99

$

Usually ships in 2-12 days

0

17

Scag 422736

Bracket, Hood Support

$

$

Not available

18

Scag 451120

Bracket, Exhaust Support

$

$

Not available

19

Scag 451121

Clamp Weldment, Muffler (Clamp and Weldment)

$49.99

$

Usually ships in 2-12 days

0

Scag 48633

Clamp, Muffler (Clamp Only)

$6.49

$

In Stock, only 1 left!

0

20

Scag 481827

Elbow, Exhaust

$61.99

$

Usually ships in 2-12 days

0

21

Scag 451083

Screen, Debris

$481.99

$

Usually ships in 2-12 days

0

22

Scag 451082

Hood

$

$

Not available

23

Scag 481795

Engine, Briggs & Stratton 31 HP

Note: (Spec. # 580447-0116-E2) Not Available Through Scag, Contact Briggs & Stratton)

$

$

Currently unavailable

24

Air Cleaner Assembly w/Mounting Band

Note: (Not Available Through Scag, Contact Briggs & Stratton)

$

$

Not available

25

Scag 04003-12

Bolt, Carr. 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

26

Scag 04019-03

Nut, Serr. Flng 5/16-18

$0.99

$

In Stock, Qty 20+

0

27

Scag 04069-02

Pin, Rue Cotter 1/2" dia.

$4.99

$

In Stock, only 1 left!

0

28

Scag 04090-04

Rivet, Pop 1/8 x .294"

$

$

Currently unavailable

29

Scag 481817

Pad, Radiator

$13.99

$

In Stock, only 2 left!

0

30

Scag 481924

Adaptor, Pre-Cleaner

$22.99

$

In Stock, only 1 left!

0

31

Coolant Tank Assembly w/Hose

Note: (Not Available Through Scag, Contact Briggs & Stratton)

$

$

Not available

32

Scag 43508

Spacer, Radiator

$11.99

$

Usually ships in 2-12 days

0

33

Scag 04002-12

Bolt, Hex Head M8 x 20MM LG

$0.99

$

In Stock, Qty 9

0

34

Scag 04002-10

Nut, 5/16-18 Elastic Stop

$0.99

$

Usually ships in 2-12 days

0

35

Scag 422715

Engine Spacer

$

$

Not available

36

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

37

Scag 04001-08

Bolt, Hex Head 5/16-18 x .75"

$0.99

$

In Stock, Qty 20+

0

38

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

39

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

40

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1.50"

$0.99

$

In Stock, Qty 6

0

41

Scag 04017-16

Bolt, Hex Head 5/16-18 x .75 Serrated Flange

$0.99

$

In Stock, Qty 10

0

42

Scag 04003-04

Bolt, Carriage 5/16-18 x 1.0"

$0.99

$

In Stock, Qty 9

0
