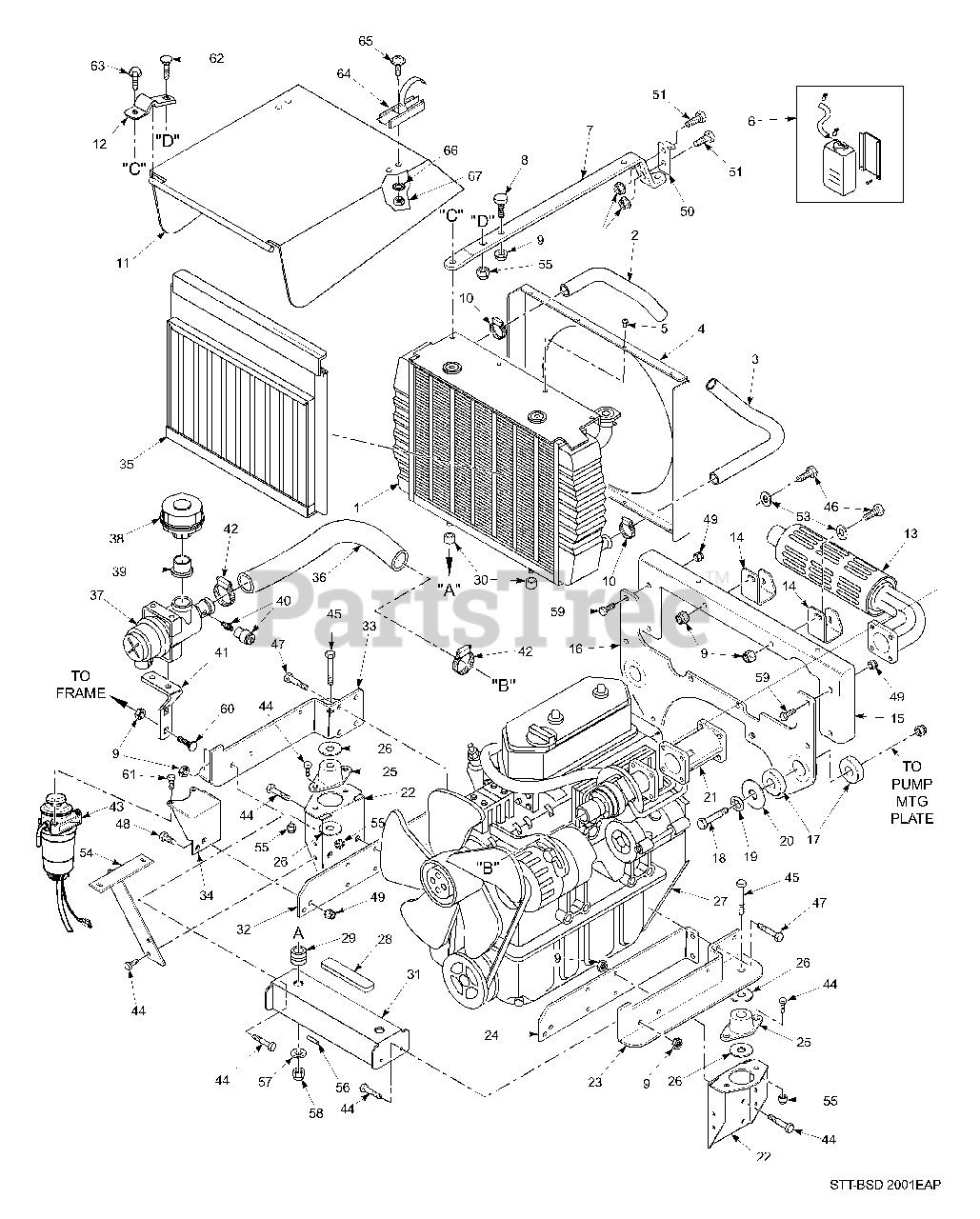

STT-31BSD - Scag Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton (SN: 6840001 - 6849999) Radiator & Engine Brackets Parts Diagram

Sabre Tooth Tiger Zero-Turn Mower, 31hp Briggs & Stratton

Radiator & Engine Brackets Parts Diagram

  • Title

1

Scag 482308

Radiator
(Superseded to 463001)

$2008.99

$

Usually ships in 2-12 days

0

2

Scag 481742

Hose, Upper Radiator

$40.99

$

Usually ships in 2-12 days

0

3

Scag 482366

Hose, Lower Radiator

$70.99

$

Usually ships in 2-12 days

0

4

Scag 423379

Shroud, Fan

$83.99

$

In Stock, only 1 left!

0

5

Scag 04090-03

Rivet, 3/16 x .402 Pop

$0.99

$

Usually ships in 2-12 days

0

6

Coolant Tank Assembly w/hose

Note: (Not Avail. Through Scag, Contact Briggs & Stratton); Purchase through Briggs & Stratton.

$

$

Not available

7

Scag 423380

Support Bracket, Hood
(Superseded to 423639)

$45.99

$

Usually ships in 2-12 days

0

8

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

9

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

10

Scag 48136-12

Clamp, 1-1/2" Dia.

$12.99

$

Usually ships in 2-12 days

0

11

Scag 451372

Hood Weldment
(Superseded to 451486)

$110.99

$

Usually ships in 2-12 days

0

12

Scag 422703

Hinge, Hood

$

$

Not available

13

Scag 482404

Muffler with Guard

$

$

Not available

14

Scag 423479

Mounting Bracket, Muffler
(Superseded to 423640)

$20.99

$

Usually ships in 2-12 days

0

15

Scag 423480

Mounting Bracket, Hood
(Superseded to 423637)

$73.99

$

Usually ships in 2-12 days

0

16

Scag 451376

Mounting Bracket Weldment, Rear Engine Mount
(Superseded to 451487)

$188.99

$

Usually ships in 2-12 days

0

17

Scag 482363

Engine ISO Mount, Rear

$24.99

$

Usually ships in 2-12 days

0

18

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

19

Scag 04030-06

Lockwasher, 1/2" Spring

$0.99

$

In Stock, only 2 left!

0

20

Scag 04041-33

Flatwasher, 1/2-.531 x 2.0 x .25

$

$

Not available

21

Scag 482403

Manifold Extension, Exhaust

$

$

Not available

22

Scag 423381

Mounting Bracket, Engine

$

$

Not available

23

Scag 451403

Mounting Bracket Weldment, Engine L.H.
(Superseded to 451750)

$111.99

$

Usually ships in 2-12 days

0

24

Scag 423382

Mounting Bracket, Engine L.H.

$

$

Not available

25

Scag 482362

Engine ISO Mount, Front

$46.99

$

Usually ships in 2-12 days

0

26

Scag 04040-07

Flatwasher, 1/2-.531 x .062 x .095

$0.99

$

In Stock, Qty 5

0

27

Scag 482270

Engine, Briggs & Stratton 31hp Diesel (Spec. #)

Note: Not Available Through Scag, Contact Briggs & Stratton

$

$

Currently unavailable

28

Scag 481817

ISO Pad, Radiator

$13.99

$

In Stock, only 2 left!

0

29

Scag 481809

ISO Mount, Radiator

$6.99

$

Usually ships in 2-12 days

0

30

Scag 43580

Bushing, Radiator ISO Mount

$

$

Not available

31

Scag 422702

Support Bracket, Radiator

$15.99

$

Usually ships in 2-12 days

0

32

Scag 423383

Mounting Bracket, Engine R.H.

$

$

Not available

33

Scag 451404

Mounting Bracket Weldment, Engine R.H.
(Superseded to 451751)

$111.99

$

Usually ships in 2-12 days

0

34

Scag 423424

Mounting Bracket, Water Seperator

$15.99

$

Usually ships in 2-12 days

0

35

Scag 423379

Shroud, Fan

$83.99

$

In Stock, only 1 left!

0

36

Scag 482368

Hose, Air Intake

$

$

Not available

37

Scag 482405

Air Cleaner Assembly w/mounting Band

$630.99

$

Usually ships in 2-12 days

0

38

Scag 481816

Pre Cleaner, Engine Air

$125.99

$

Usually ships in 2-12 days

0

39

Scag 481824

Adapter, Pre Cleaner

$3.49

$

Usually ships in 2-12 days

0

40

Scag 481818

Indicator, Air Cleaner

$117.99

$

Usually ships in 2-12 days

0

41

Scag 422701

Bracket, Air Cleaner

$

$

Not available

42

Scag 48136-09

Clamp, Hose 2-1/4" Dia.

$16.99

$

Usually ships in 2-12 days

0

43

Fuel Filter, Water Seperator

Note: (Not Avail. Through Scag); Purchase through Briggs & Stratton.

$

$

Not available

44

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

0

46

Scag 04001-09

Bolt, Hex Head 5/16-18 x 1"

$0.99

$

In Stock, Qty 20+

0

47

Scag 04002-01

Bolt, Hex Head M8-1.25 x 3mm

$0.99

$

In Stock, only 4 left!

0

48

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 11

0

49

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

50

Scag 423388

Catch Bracket, Hood Latch
(Superseded to 423641)

$17.99

$

Usually ships in 2-12 days

0

51

Scag 04001-01

Bolt, Hex Head 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 18

0

?52

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

53

Scag 04040-15

Flatwasher, 375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

54

Scag 451374

Mounting Bracket, Battery

$

$

Not available

55

Scag 04021-10

Nut, Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

56

Scag 04069-02

Pin, Rue Cotter 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

57

Scag 04040-06

Flatwasher, 7/16-.469 x .922 x .065

$0.99

$

In Stock, only 4 left!

0

58

Scag 04021-11

Nut, Elastic Stop 7/16-14

$0.99

$

In Stock, Qty 10

0

59

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

60

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

61

Bolt

Note: (Not Available Through Scag, Contact Briggs & Stratton); Purchase through Briggs & Stratton.

$

$

Not available

62

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

63

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4" Serr. Flange

$0.99

$

In Stock, Qty 10

0

64

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

65

Scag 04010-21

Screw, #10-32 x .375

$

$

Not available

66

Scag 04031-01

Lockwasher, #10 Spring

$0.99

$

In Stock, Qty 20+

0

67

Scag 04020-01

Nut, #10

$8.99

$

In Stock, Qty 20+

0
