STT-28CAT-SS - Scag Turf Tiger Zero-Turn Mower, 28hp CAT Diesel (SN: E2100001 - E2199999) Deck Drive Components Parts Diagram

Turf Tiger Zero-Turn Mower, 28hp CAT Diesel

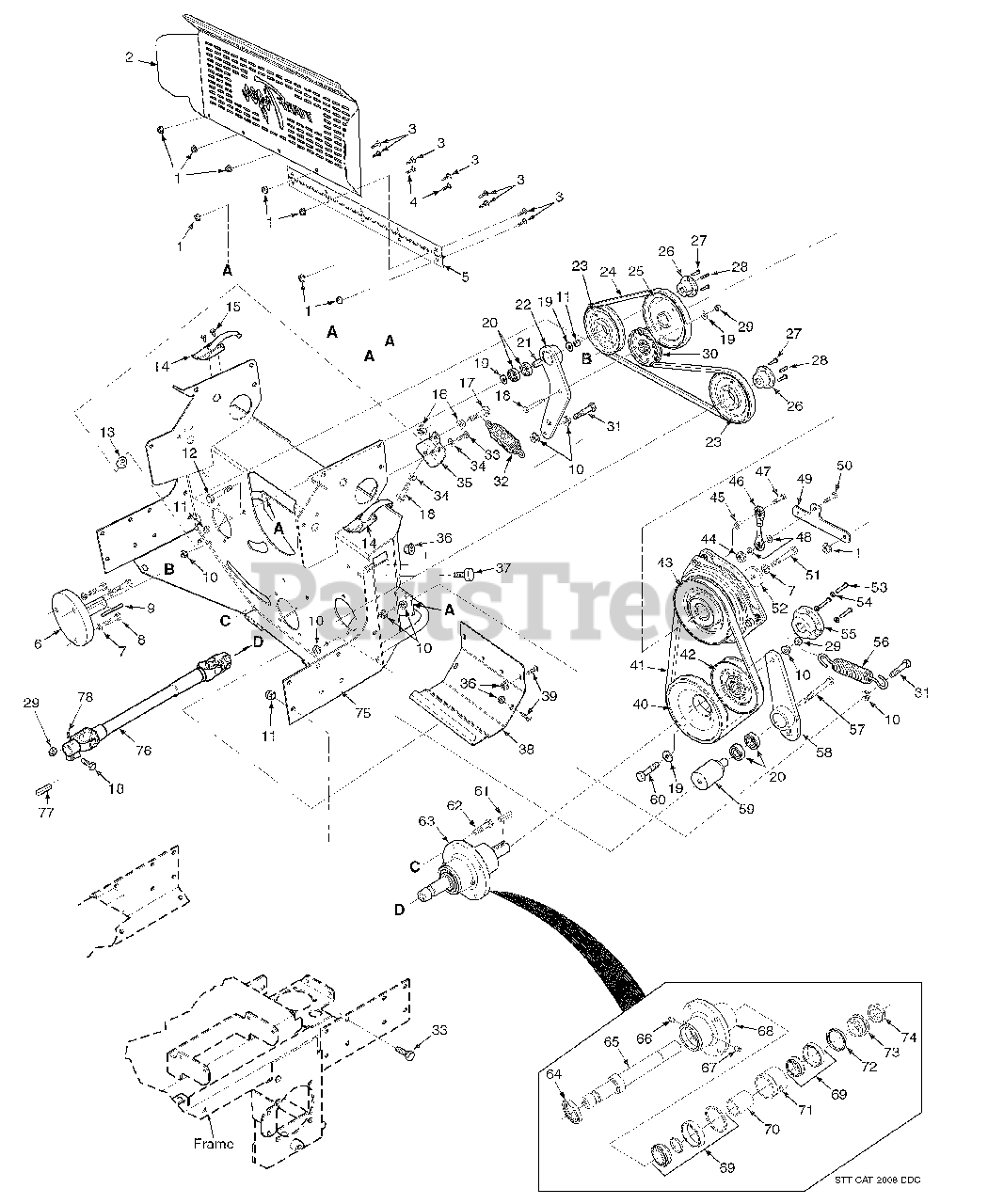

Deck Drive Components Parts Diagram

  • Title

1

Scag 04019-02

Nut, Serrated Flange 1/4-20

$0.99

$

In Stock, Qty 20+

0

2

Scag 423925

Belt Guard, Rear
(Superseded to 425133)

$68.99

$

In Stock, only 1 left!

0

3

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2”

$0.99

$

In Stock, Qty 9

0

4

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4”

$0.99

$

In Stock, Qty 20+

0

5

Scag 481531

Hinge, Belt Guard

$30.99

$

In Stock, only 1 left!

0

6

Scag 43772

Stub Shaft

Note: (Cat)

$171.99

$

Usually ships in 2-12 days

0

7

Scag 04030-05

Lockwasher, 7/16” Spring

$0.99

$

In Stock, Qty 5

0

8

Scag 04002-26

Bolt, Hex Head M10 x 1.5 x 35

$1.49

$

Usually ships in 2-12 days

0

9

Scag 04063-23

Key, 1/4 x 1/4 x 3-1/4”

$1.99

$

In Stock, only 2 left!

0

10

Scag 04019-04

Nut, Serrated Flange 3/8-16

$0.99

$

In Stock, Qty 20+

0

11

Scag 04021-09

Nut, Elastic Stop 3/8-16

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-135

Bolt, Hex Head 3/8-16 x 1-3/4” Grd 8

$0.99

$

In Stock, only 4 left!

0

13

Scag 43286

Spacer

$2.49

$

In Stock, only 2 left!

0

14

Scag 481309

Latch, Hood

$7.99

$

Usually ships in 2-12 days

0

15

Scag 04011-11

Screw, #10-32 x .56

$0.99

$

In Stock, Qty 8

0

16

Scag 04019-06

Nut, Serrated Flange 1/2-13

$0.99

$

In Stock, Qty 10

0

17

Scag 04001-185

Bolt, Hex Head 1/2-13 x 2” Grd 8

$1.99

$

In Stock, Qty 7

0

18

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4”

$0.99

$

In Stock, Qty 20+

0

19

Scag 04043-04

Washer, 3/8” Hardened

$0.99

$

In Stock, Qty 20+

0

20

Scag 48224

Ball Bearing

$12.99

$

In Stock, Qty 20+

0

21

Scag 43631

Spacer, Idler Bearing

$4.99

$

In Stock, only 1 left!

0

22

Scag 461608

Idler Arm Weldment, Pump Drive

$86.99

$

Usually ships in 2-12 days

0

23

Scag 482744

Pulley, 5.75” O.D.

$30.99

$

Usually ships in 2-12 days

0

24

Scag 483735

Belt, Pump Drive

$83.99

$

Usually ships in 2-12 days

0

25

Scag 483732

Pulley, 6.35 Dia. - 1.125 Bore

$83.99

$

Usually ships in 2-12 days

0

26

Scag 481884

Tapered Hub, 17mm Bore

$27.99

$

In Stock, only 1 left!

0

27

Scag 04001-172

Bolt, Hex Head 1/4-20 x 1” Grd 8

$0.99

$

In Stock, Qty 20+

0

28

Scag 04063-27

Key, 5 x 5 x 35 mm

$4.49

$

In Stock, only 1 left!

0

29

Scag 04021-05

Nut, Center Lock 3/8-16

$0.99

$

In Stock, Qty 20+

0

30

Scag 483214

Pulley, Idler 4” Dia.

$26.99

$

In Stock, only 1 left!

0

31

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2” Grd 8

$0.99

$

In Stock, Qty 20+

0

32

Scag 483088

Spring, Transmission Idler

$46.99

$

In Stock, only 1 left!

0

33

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1”

$0.99

$

In Stock, Qty 6

0

34

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

35

Scag 424764

Bracket

$19.99

$

Usually ships in 2-12 days

0

36

Scag 04019-03

Nut, Serrated Flange 5/16-18

$0.99

$

In Stock, Qty 20+

0

37

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

38

Scag 424691

Cover, Rear

$57.99

$

Usually ships in 2-12 days

0

39

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4”

$0.99

$

In Stock, Qty 20+

0

40

Scag 481398

Pulley, 6.35 Tapered Bore

$117.99

$

Usually ships in 2-12 days

0

41

Scag 481460

Belt, Deck Drive

$38.99

$

In Stock, only 1 left!

0

42

Scag 48181

Pulley, Idler 5” Dia.

$26.99

$

In Stock, Qty 11

0

43

Scag 483261

Clutch, Ogura GT 3.5 - 1.125 Bore
(Superseded to 462011)

$476.99

$

Usually ships in 2-12 days

0

44

Scag 04021-10

Nut, Hex Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

45

Scag 43587

Spacer

$8.49

$

In Stock, only 1 left!

0

46

Scag 482433

Rod Assembly, Clutch Anti-Rotation

$59.99

$

In Stock, only 1 left!

0

47

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2”

$0.99

$

In Stock, Qty 6

0

48

Scag 04040-04

Flatwasher, 5/16”

$0.99

$

In Stock, Qty 20+

0

49

Scag 423465

Bracket, Anchor, Anti-Rotation

$11.99

$

In Stock, only 1 left!

0

50

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4”

$0.99

$

In Stock, Qty 14

0

51

Scag 04102-03

Bolt, Hex Head 7/16-20 x 2-1/4”

$1.99

$

In Stock, Qty 12

0

52

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

53

Scag 04001-109

Bolt, Hex Head 1/4-20 x 1-3/8”

$2.49

$

In Stock, only 2 left!

0

54

Scag 04030-02

Lockwasher, 1/4” Spring

$0.99

$

In Stock, Qty 20+

0

55

Scag 481536

Tapered Hub, 1” Bore

$58.99

$

Usually ships in 2-12 days

0

56

Scag 483430

Spring, PTO

$41.99

$

Usually ships in 2-12 days

0

57

Scag 04001-171

Bolt, Hex Head 3/8-16 x 4-1/2” Grd 8

$2.49

$

In Stock, Qty 5

0

58

Scag 461609

Idler Arm Weldment, PTO Drive

$57.99

$

Usually ships in 2-12 days

0

59

Scag 43632

Pivot, Idler PTO

$27.99

$

Usually ships in 2-12 days

0

60

Scag 04001-170

Bolt, Hex Head 3/8-16 x 2-1/2” Grd 8

$3.99

$

In Stock, Qty 6

0

61

Scag 04063-06

Key, 1/4 x 1/4 x 1-1/2”

$1.49

$

In Stock, only 2 left!

0

62

Scag 04001-176

Bolt, Hex Head 5/16-18 x 1-3/4” Grd 8

$0.99

$

In Stock, Qty 20+

0

63

Scag 461665

Spindle Assembly, Deck Drive
(Superseded to 461697)

$319.99

$

In Stock, only 1 left!

0

64

Scag 481024

Seal, 2.0 OD x 1.5 Bore

$4.99

$

In Stock, Qty 20+

0

65

Scag 43534

Shaft, Deck Drive
(Superseded to 43321)

$

$

Not available

66

Scag 48114-04

Grease Fitting, 1/4-28

$0.99

$

In Stock, Qty 20+

0

67

Scag 48677

Relief Fitting

$

$

Not available

68

Scag 43644

Spindle Housing

$58.99

$

In Stock, only 2 left!

0

69

Scag 481022

Roller Bearing Tapered

$59.99

$

In Stock, Qty 15

0

70

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

71

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

72

Scag 481025

Seal, 2.0 OD x 1.625 Bore

$4.99

$

In Stock, Qty 20+

0

73

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

74

Scag 481035

Nut, 1.06-18 Thread

$7.99

$

In Stock, only 3 left!

0

75

Scag 452005

Pump Mounting Plate Weldment

Note: (Cat Engine)

$465.99

$

In Stock, only 1 left!

0

76

Scag 482438

Driveshaft

Note: (Cat Engine)

$651.99

$

Usually ships in 2-12 days

0

77

Scag 04063-20

Key, 1/4 x 1/4 x 1”

$1.49

$

In Stock, Qty 5

0

78

Scag 04012-08

Set Screw, 3/8-16 x 3/4” Torx Socket
(Superseded to 04012-06)

$0.99

$

In Stock, only 1 left!
